Chief STMS1U TV mount/stand

Product Info

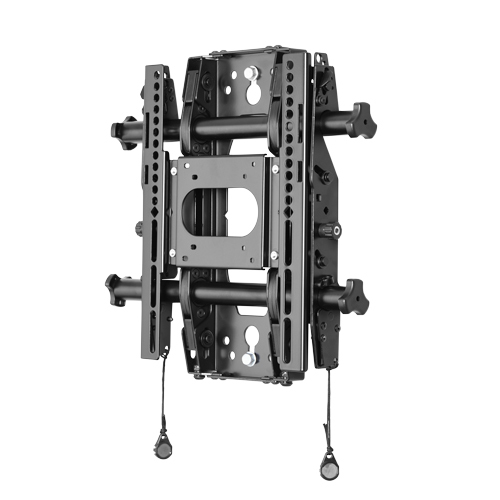

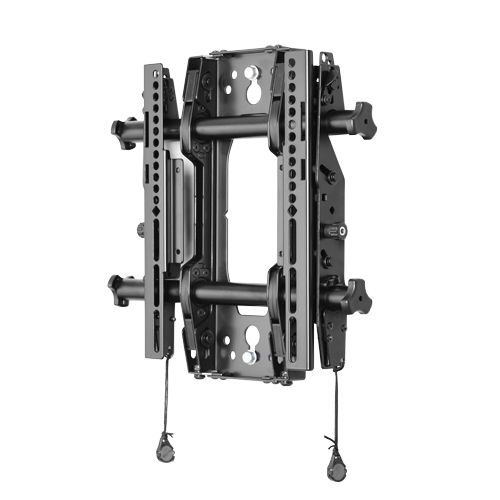

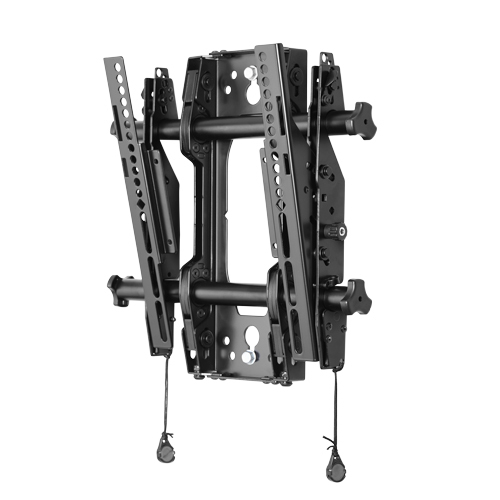

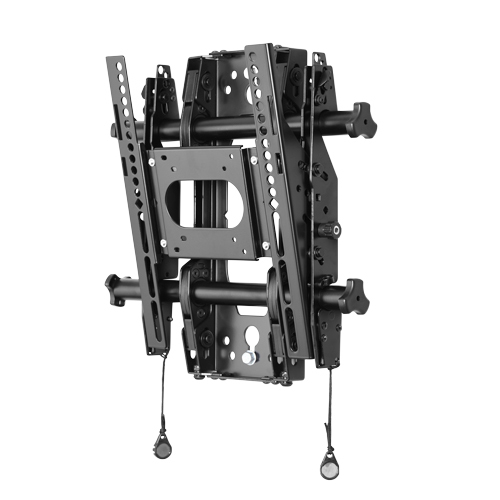

Small Tilt Wall Mount Single Stud

Chief Small tilt wall mount single stud. Maximum weight capacity: 34 kg, Minimum screen size: 61 cm (24"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 300 x 300 mm. Height adjustment range: 0 - 25 mm, Tilt angle range: -12 - 2°. Product colour: Black

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for small displays with a low-profile display mounting solution.

This single stud Fusion mount hides better behind narrow bezel displays in the 24-32" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.

The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
