Chief RLT3 TV mount/stand
RLT3 - 841872176642
Chief RLT3 TV mount/stand 2.18 m (86 inch) Black
- Brand
- CHIEF MOUNTS
- Product code
- RLT3
- SKU
- 47FC33RAN85ZL
- EAN/GTIN
- 841872176642
- Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 450 mm
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
€135.91
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
43" - 86", max. 90.7 kg, max. 915 x 450 mm, -12° Tilt, Black
Chief RLT3. Maximum weight capacity: 90.7 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.18 m (86"), Maximum VESA mount: 915 x 450 mm. Tilt angle range: -12 - 0°. Product colour: Black

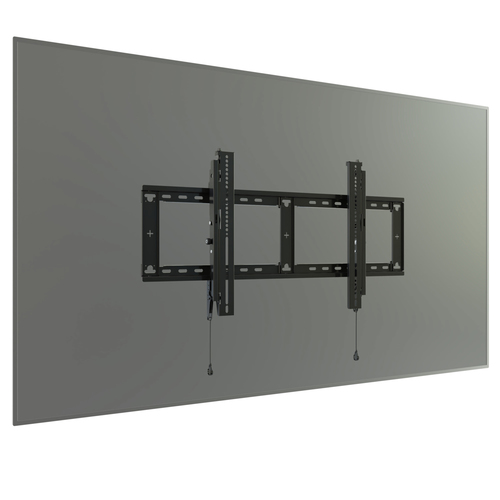

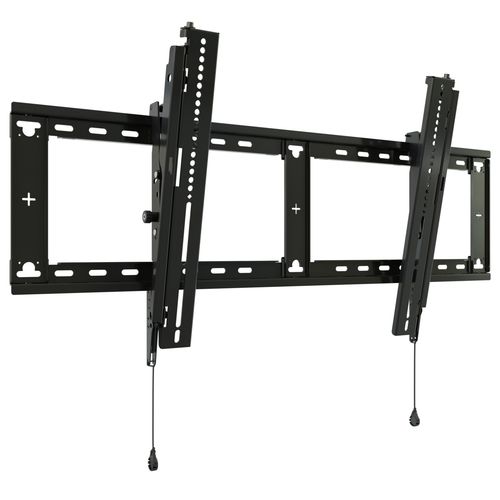

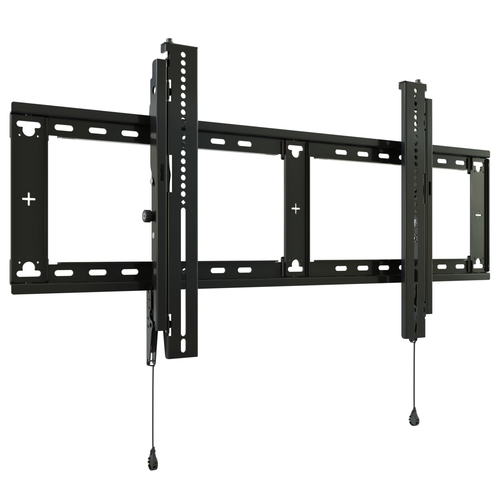

The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
Specifications
Mounting
Maximum weight capacity
90.7 kg
Minimum screen size
109.2 cm (43")
Number of displays supported
1
Maximum screen size
2.18 m (86")
Maximum VESA mount
915 x 450 mm
Mounting type
Wall
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Tilt adjustment
Yes
Tilt angle range
-12 - 0°
Design
Product colour
Black
Certification
TUV, UL Listed
Weight & dimensions
Width
965 mm
Depth (min)
5.1 cm
Depth (max)
5.1 cm
Height
487 mm
Packaging data
Quantity per pack
1 pair(s)
Package weight
8.2 kg
