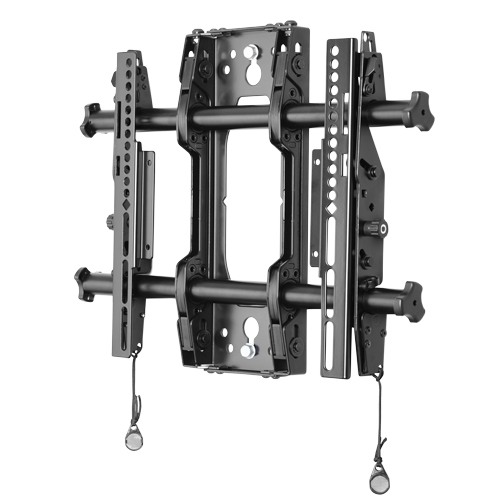

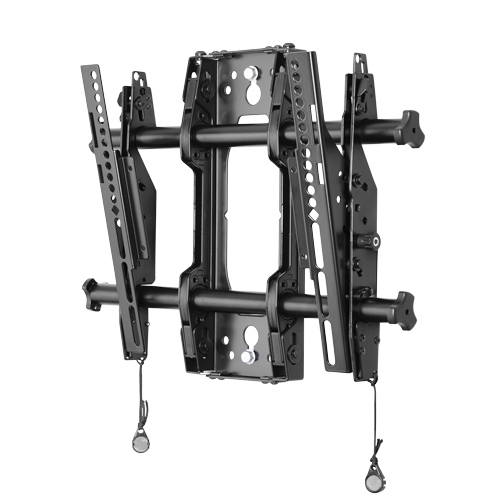

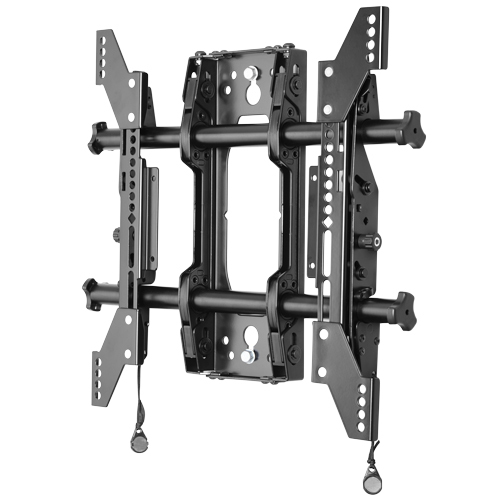

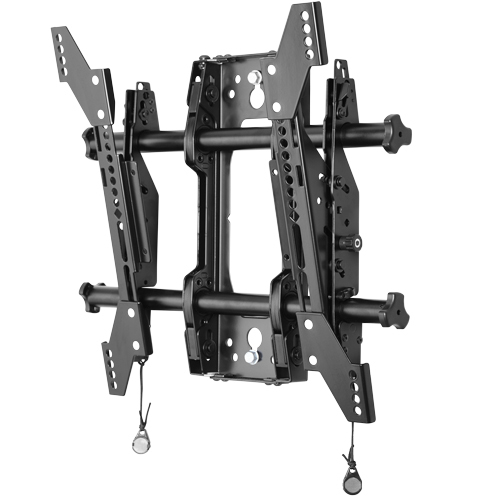

Chief MTMS1U signage display mount
MTMS1U - 841872167756
Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud
- Brand
- CHIEF MOUNTS
- Product code
- MTMS1U
- SKU
- BEXLXEBXD361K
- EAN/GTIN
- 841872167756
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Product Info
Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud, max 34kg, 32-65", Black
Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud. Maximum weight capacity: 34 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 450 x 400 mm. Height adjustment range: 0 - 25 mm, Tilt angle range: -12 - 2°. Product colour: Black
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-65" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
| Mounting | |
|---|---|
| Maximum weight capacity | 34 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 450 x 400 mm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 25 mm |
| Tilt angle range | -12 - 2° |
| Design | |
| Product colour | Black |
| Certification | UL Listed |
| Weight & dimensions | |
| Width | 463 mm |
| Depth | 51 mm |
| Height | 359 mm |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
