Chief LSD1U signage display mount
LSD1U - 841872168166
Chief Large Fusion Dynamic Height Adjustable Wall Mount
- Brand
- CHIEF MOUNTS
- Product code
- LSD1U
- SKU
- 794S7JVTBVYHG
- EAN/GTIN
- 841872168166
- Maximum weight capacity: 80 kg Black
- Mounting type: Wall
- Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 800 x 400 mm
- Height adjustment Cable management
Product Info
Dynamic 400mm, UL Listed, Wall Mount, 37kg

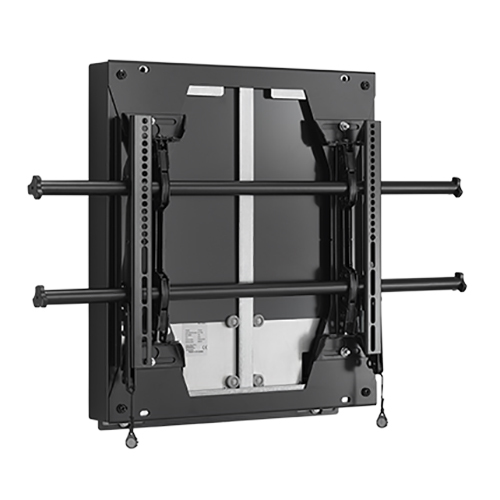

Chief Large Fusion Dynamic Height Adjustable Wall Mount. Maximum weight capacity: 80 kg, Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Height adjustment range: 0 - 400 mm. Product colour: Black

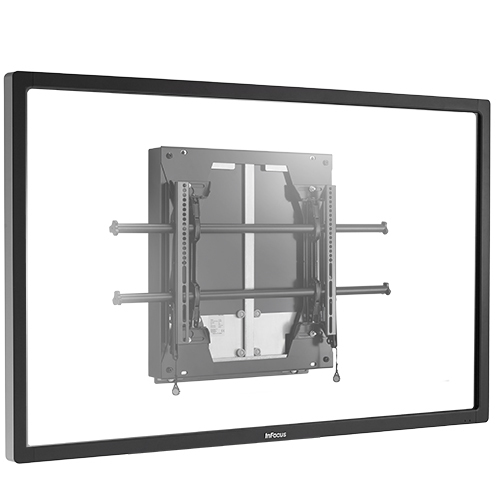

Ideal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution.
Easy to install. Easy to adjust.
- Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly
- ControlZone for post-installation fine-tuning of height and leveling
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Built in cable stand provides easy access under the screen
- ClickConnect offers an audible click when the screen safely engages with the mount
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Spring system tested to 60,000 cycles and 10 years of use
- Integrated security flag
| Mounting | |
|---|---|
| Maximum weight capacity | 80 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 400 mm |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Certification | UL Listed |
| Weight & dimensions | |
| Width | 884 mm |
| Depth | 130 mm |
| Height | 635 mm |
| Other features | |
| VESA mounting | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
