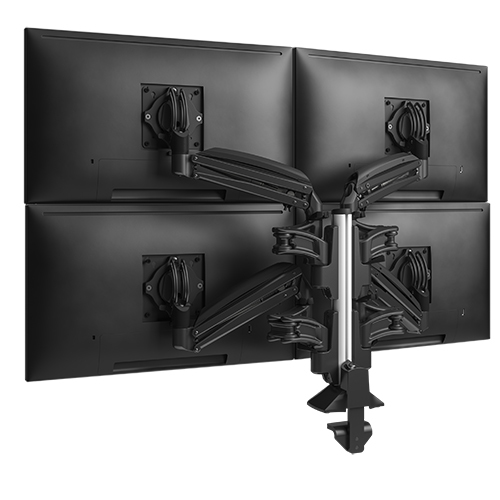

Chief KX Low-Profile Quad Monitor Arms
KXC420B - 841872172828
Chief KX Low-Profile Quad Monitor Arms, Column Desk Mount, Black
- Brand
- CHIEF MOUNTS
- Product code
- KXC420B
- SKU
- 468J05G0RT9RG
- EAN/GTIN
- 841872172828
- FleXlink provides full range of motion while optimizing depth of dual-, triple- and quad-monitor mounts for shallow-depth desktops
- Best-in-class weight capacity range of 5 to 25 lbs. (2.3 – 11.3 kg) makes specification simple
- No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One!
- Sleek, solidly-constructed forged aluminum arms in subtle silver, black and white finishes
- Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
- Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
- 20" (508 mm) of total height adjustment range
- 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
- Additional 7" (178 mm) of manual height adjustment on the column
- Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the base
- Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
- Tool-free cable management covers for a clean, professional look
- With high levels of recycled content & a highly-recyclable design, Chief Kontour™ monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
Product Info
4x 11.3 kg, 4x 10 - 30", VESA, Black
Chief KX Low-Profile Quad Monitor Arms, Column Desk Mount, Black. Mounting: Clamp, Maximum weight capacity: 36.3 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -10 - 75°. Product colour: Black
KX Low-Profile Quad Monitor Arms, Column Desk Mount, Black
Chief’s premium Kontour™ KX Series Monitor Arms provide the most complete range of motion available, due to our exclusive FleXlink design. KX Series mounts with FleXlink optimize the depth of dual-, triple- and quad-monitor installs for shallow depth desktops while still providing full range of motion for screen sharing with colleagues.
This series includes Chief's patented Centris™ Extreme Tilt technology for effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.
| Ergonomics | |
|---|---|
| Height adjustment range | 0 - 165.1 mm |
| Mounting | |
| Maximum weight capacity | 36.3 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 4 |
| Maximum weight capacity (per display) | 11.3 kg |
| Maximum screen size | 76.2 cm (30") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Extension arm (max) | 54.1 cm |
| Desk thickness (min) | 1.28 cm |
| Desk thickness (max) | 6.38 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 165.1 mm |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 75° |
| Angle of rotation | 180° |
| Turn angle | 90° |
| Number of arms | 4 |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Orientation | Landscape/Portrait |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
