Chief FRA monitor mount accessory
FRA - 841872169910
Chief Freestyle Rotation Adapter
- Brand
- CHIEF MOUNTS
- Product code
- FRA
- SKU
- 4KZQ1V2W1JGNW
- EAN/GTIN
- 841872169910
- Device plate Black
- Maximum weight capacity: 24.9 kg
- Panel mounting interface: 400 x 400 mm
- 1 pc(s)
Product Info
Freestyle Rotation Adapter, max 24.9, Black
Chief Freestyle Rotation Adapter. Product type: Device plate, Product colour: Black, Maximum weight capacity: 24.9 kg. Width: 438.2 mm, Depth: 21.4 mm, Height: 438.2 mm. Quantity per pack: 1 pc(s)

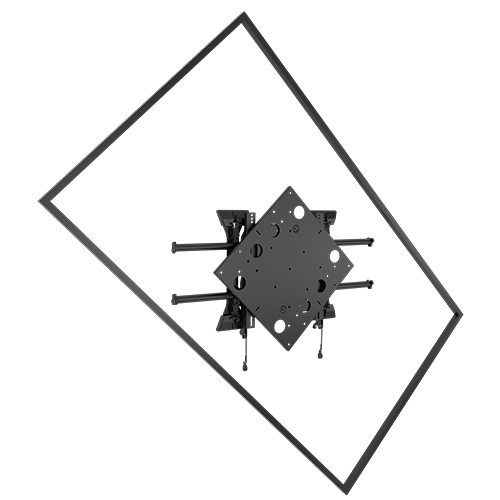

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts. The accessory provides infinite orientation possibilities to support your most creative installations, and also serves as a fast and flexible landscape-to-portrait solution.
- Infinite orientation possibilities
- Provides 90 degrees of rotation; can be installed in different orientations to achieve 360 degrees of range
- Positive lockouts at 15 degree increments

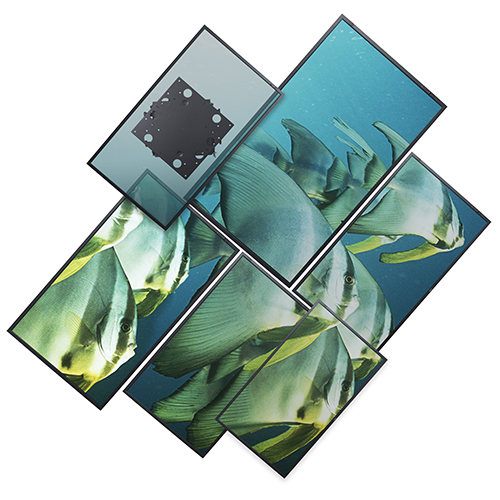

- Overlapping displays (with Fusion FCADA) adds another level of customization and creativity
- Micro-adjustment (with ConnexSys)
- Weight capacity when used with ConnexSys: 125 lbs (56.7 kg)
- Weight capacity when used with single-stud Fusion: 55 lbs (24.95 kg)
- Compatible with ConnexSYS mounts and Fusion wall, ceiling and freestanding mounts
| Features | |
|---|---|
| Product type | Device plate |
| Product colour | Black |
| Maximum weight capacity | 24.9 kg |
| Panel mounting interface | 400 x 400 mm |
| Swivel angle range | 90 - 360° |
| Turn angle range | 0 - 90° |
| Compatibility | Fusion STMS1U, MTMS1U, MSM1U, MFAUB, MPAUB, Connexsys LVS1U, LVS1UP |
| Weight & dimensions | |
| Width | 438.2 mm |
| Depth | 21.4 mm |
| Height | 438.2 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
