Broadcom NetXtreme N1100G - 1x 100GbE OCP 3.0
BCM957504-N1100G - 1650861006357

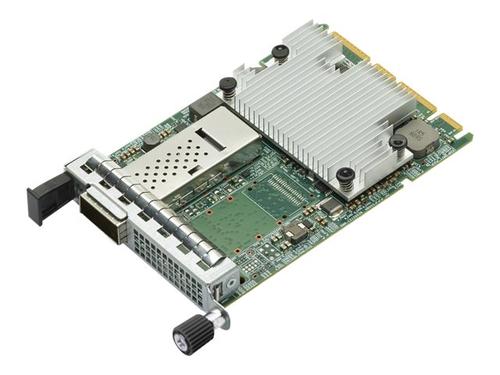

Broadcom BCM957504-N1100G - network adapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 1
- Brand
- Broadcom
- Product code
- BCM957504-N1100G
- SKU
- DNQD24WDE4ZY8
- EAN/GTIN
- 1650861006357
- 1x 100GbE OCP 3.0
- Weight: 0.12 KG
- Single-port pluggable media interface, which is compatible with a QSFP56/QSFP28/QSFP+ optical transceiver or a copper direct-attach cable
- Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE technology
- Supports 50G PAM-4 and 25G NRZ signaling
- Multi-Host up to four hosts
- Fully compliant with the SFF-8402 standard
- X16 PCI Express 4.0 compliant
- SR-IOV with up to 1k virtual functions (VFs)
- Function-Level Reset (FLR) support
- TruFlow flow processing engine
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
- VSwitch Acceleration
- Tunnel-aware stateless offloads
- DCB support - PFC, ETS, QCN, DCBx
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI)
- SMBus 2.0
- MCTP over SMBus
- Jumbo frames up to 9 KB
- Advanced congestion avoidance
- Multiqueue, NetQueue, and VMQ
- IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large send offload (LSO)
- Large receive offload (LRO)
- TCP segmentation offload (TSO)
- Receive-side scaling (RSS)
- Transmit-side scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Network boot - PXE, UEFI
- ISCSI boot
- Wake-on-LAN (WOL)
- MSI and MSI-X
- OCP 3.0 FRU support
€854.72
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
The Broadcom BCM957504-N1100G is a single-port 100 Gb/s PCI Express 4.0 x16 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with one QSFP56 network connector. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57504 100GbE MAC controller with an integrated single-channel 100GbE SFI transceiver.
Description
Robust connectivity Equipped with a QSFP56 connector, the BCM957504-N1100G network adapter ensures reliable 100 Gb Ethernet connectivity, facilitating high-speed data transfers and efficient network operations. Enhanced performance This adapter supports advanced features such as 9 KB Jumbo Frame, Data Center Bridging Exchange (DCBX) support, and Enhanced transmission selection (ETS), enhancing its performance in demanding data center environments. Comprehensive virtualization support With support for technologies like Single Root I/O Virtualization (SR-IOV), Network Virtualization using Generic Routing Encapsulation (NVGRE), and Virtual Extensible LAN (VXLAN), the BCM957504-N1100G offers extensive virtualization capabilities, making it ideal for modern computing landscapes. Efficient network management Features such as Wake On LAN (WOL), Priority-Based Flow Control (PFC), and Quantized Congestion Notification (QCN) provide efficient network management and congestion control, ensuring smooth and reliable network traffic flow. Advanced networking features The adapter boasts a suite of advanced networking features including RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), and TCP/IP checksum offload, offering enhanced data processing and throughput.| General | |
|---|---|
| Form Factor | Plug-in card |
| Device Type | Network adapter |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet - QSFP56 |
| Networking | |
| Connectivity Technology | Wired |
| Status Indicators | Link/activity |
| Data Link Protocol | 100 Gigabit Ethernet |
| Ports | 100 Gigabit QSFP56 x 1 |
| Features | OCP 3.0 support, SR-IOV, FLR, TruFlow, VXLAN, NVGRE, GENEVE support, GRE, vSwitch Acceleration, tunnel-aware stateless offloads, DCBX support, ETS, PFC, QCN, RoCE, NC-SI, SMBus 2.0, 9 KB Jumbo Frame, VMware NetQueue and Microsoft VMQ, TCP/IP checksum offload, UDP/IP checksum offload, LRO, LSO, MCTP over SMBus, TSO, RSS, TSS, Interrupt coalescing, UEFI support, iSCSI boot, PXE support, MSI-X, MSI, WOL |
| Miscellaneous | |
| Compliant Standards | Halogen-free, MSA SFF-8402 |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Dimensions & Weight | |
| Weight | 90 g |
