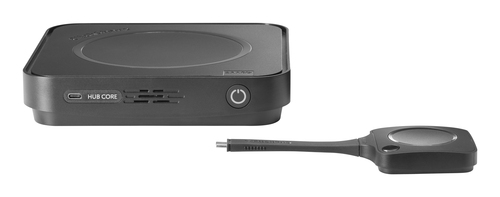

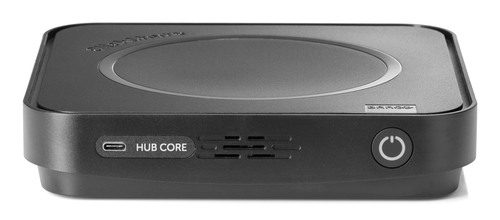

Barco ClickShare Hub Core video conferencing system
R9861711EUB1 - 5415334054738
Barco ClickShare Hub Core video conferencing system Ethernet LAN Video conferencing service management system
- Brand
- Barco ClickShare
- Product code
- R9861711EUB1
- SKU
- VMHF8V7APVYT5
- EAN/GTIN
- 5415334054738
- Wireless presentation: 4K content sharing with 1 Button
- Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
- Next-gen ClickShare Button with Wi-Fi 6E support and USB-C DisplayPort™
- Sustainable product with Barco Eco label A+
- Works as part of a room system bundle certified for Microsoft Teams
Product Info
HDMI/eDP, 4K UHD, USB-A/USB-C, IEEE 802.11 a/b/g/n/ac/ax/be, Bluetooth 5.3, LAN, PD3.1 EPR, 1 x ClickShare Button 5th Gen
Barco ClickShare Hub Core. Product type: Video conferencing service management system. HD type: 5K Ultra HD. Ethernet LAN, Wi-Fi. Bluetooth, Product colour: Black
ClickShare Hub Core is a modular, wireless video conferencing system designed for effortless hybrid meetings.
The Hub Core works with the ClickShare Control Panel* and enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy thanks to the next-gen ClickShare Button.
For IT managers and integrators, ClickShare Hub Core offers a customizable solution for all room types, and both ad hoc and scheduled meetings. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.
Meeting room bundles for seamless hybrid collaboration
The ClickShare Hub Core and Sennheiser TeamConnect Bar S bundle is a certified Microsoft Teams Rooms solution designed for small meeting rooms. It combines secure 4K content sharing, high-quality audio and video, and cloud-managed performance – all in one easy-to-deploy package.
Certified for Microsoft Teams, ensuring seamless integration and a consistent user experience
Built on Microsoft Device Ecosystem Platform (MDEP) for secure, Android-based room system performance
One-click 4K content sharing with a next-gen ClickShare Button featuring Wi-Fi 6E and USB-C DisplayPort™

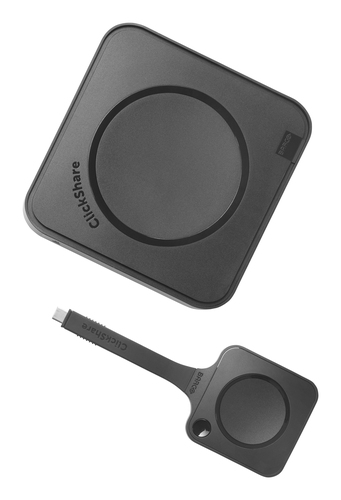

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.
Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.
For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
Works seamlessly across all major OS in high-security environments
Built-in security and user control
| Performance | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Product colour | Black |
| Product type | Video conferencing service management system |
| Noise level | 25 dB |
| Video | |
| HD type | 5K Ultra HD |
| Maximum video resolution | 5120 x 2160 pixels |
| Supported graphics resolutions | 1280 x 800 (WXGA), 5120 x 2160 |

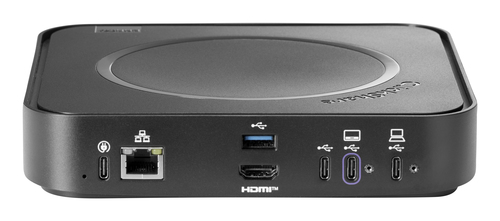

| Ports & interfaces | |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
| Buttons | |
| Presentation button included | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Networking standards | IEEE 802.15.1 |
| Display | |
| Built-in display | No |
| Features | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Maximum operating distance | 30 m |
| Logistics data | |
| Country of origin | China |
| Computer system | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Power | |
| Power source type | USB |
| Power consumption (max) | 140 W |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 180 W |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 37 mm |
| Weight | 720 g |
| Receiver dimensions (WxDxH) | 63 x 161.3 x 16 mm |
| Packaging content | |
| External interface module included | Yes |
| Camera included | No |
| Control panel included | No |
| Packaging content | 1 x ClickShare Button 5th Gen |
