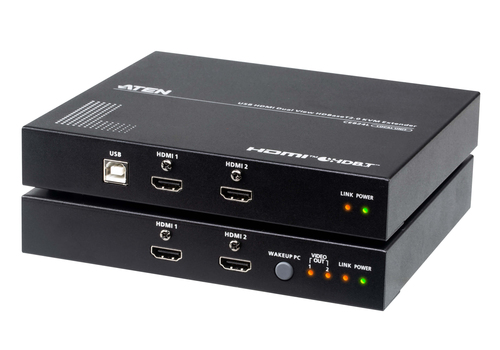

ATEN CE824 KVM extender
CE824 - 4711581520653
ATEN USB HDMI Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)
- Brand
- ATEN
- Product code
- CE824
- SKU
- QTDQ7L4259G2A
- EAN/GTIN
- 4711581520653
- Allows HDMI dual view access to a distant computer for KVM control from remote console
- Transmits uncompressed HDMI video / stereo audio / USB / RS-232 signals via one single Cat 6 / 6A / ATEN 2L-29330 cable over long distances:
- – Standard mode supports single view at up to 4K or dual-view up to 1080p over 100 m
- – Long Reach mode supports single view at up to 1080p or dual-view up to 720p over 150 m*
- 4 x USB 2.0 Type-A ports on the remote unit for connection to multiple USB peripherals
- Supports 2-channel stereo audio
- EDID buffer for smooth power-up and the highest quality display
- PC wakeup function enabled via a pushbutton through RS-232
- HDCP compatible
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- DC Jack with screw-lock ensures stable and secure connection
- Rack mountable
Product Info
USB HDMI Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)
ATEN USB HDMI Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. Power consumption (transmitter) (max): 5.98 W, Power consumption (receiver) (max): 10.32 W. Transmitter width: 15.6 cm, Transmitter depth: 17.4 cm, Transmitter height: 2.88 cm

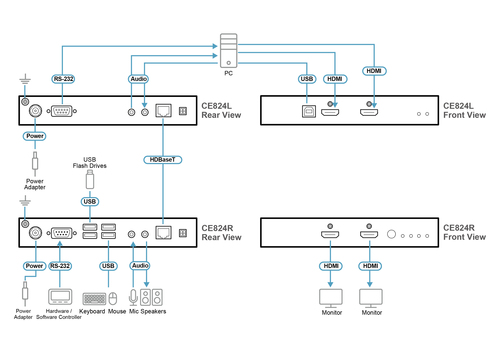

ATEN CE824 adopts HDBaseT 2.0 technology to transmit uncompressed HDMI video, stereo audio, USB, and RS-232 signals while supporting up to 4096 x 2160 @ 30Hz (4:4:4) on a single display / 1080p on dual displays across 100 m over a single Cat 6 / 6A cable (ATEN 2L-29330 recommended), allowing access to a distant computer for KVM control from the remote console. With Long Reach Mode enabled, the CE824 can extend 1080p HDMI source along with other signals up to 150 m.* The ease of cabling installation plus the rack mount compatibility assure a more efficient system setup. The CE824 serves as an ideal solution forapplications that require high-quality multi-signal extension and KVM control across long distances – such as control centers, banking and finance sectors, industrial warehouses, and extended workstations.
