ATEN VE1833
VE1833 - 4710469349829
ATEN True 4K HDMI/USB HDBT3.0-Lite
- Brand
- ATEN
- Product code
- VE1833
- SKU
- QJUFEW7W04V6Y
- EAN/GTIN
- 4710469349829
- Extends uncompressed True 4K HDMI signals up to 40 m over a single Cat 6a cable with zero
- Compliant with HDBaseT 3.0 standards – transmits high-quality video, full range IR, bi-directional RS-232, independent stereo audio and USB 2.0 signals channel bypass
- Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4); HDR, HDR+, Dolby Vision supported
- Supports bi-directional PoH and HDMI audio embedding / de-embedding functions
Product Info
True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH (True 4K 40 m)
ATEN True 4K HDMI/USB HDBT3.0-Lite. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 40 m. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Power consumption (TX): 6.01 W, Power consumption (RX): 7.09 W. Width: 146.9 mm, Depth: 169.4 mm, Height: 30 mm. Package width: 95 mm, Package depth: 265 mm, Package height: 220 mm

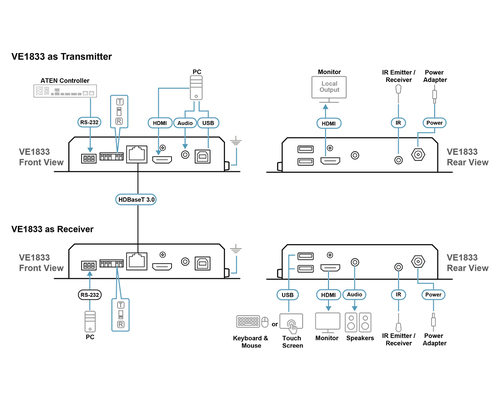

The ATEN VE1833 True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH integrates both transmitter and receiver functions in one compact unit, allowing users to flexibly configure it through a DIP switch according to diverse AV setup. Leveraging HDBaseT 3.0 technology, the VE1833 delivers uncompressed True 4K HDMI signals over distances up to 40 m via a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP / ATEN's tailor-made HDBaseT cable*), with zero.
Designed for professional AV environments, the VE1833 supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and advanced video formats including HDR, HDR10+, and Dolby Vision, along with HDCP 2.2/2.3, 3D, and Deep Color, ensuring superior video quality. The VE1833 features bi-directional PoH with power redundancy, ensuring continuous operation for critical missions.
The VE1833 extends not only HDMI video but also independent stereo audio, USB 2.0, IR, and bi-directional RS-232 signals all over a Cat 6a cable. It also provides HDMI audio embedding and de-embedding, making it easy to route audio separately when needed, and ideal for setups involving external speakers or audio processors. This all-in-one design streamlines complex installations and allows for seamless integration with video matrix switches, splitters, and more.
Empowered by its versatile feature set and flexible deployment options, the VE1833 is an ideal solution for conference halls, auditoriums, lecture theaters, museums, exhibition spaces, and any environment that demands high-performance AV transmission with simplified setup.
Note: Please refer to the Compatible Cables section on the product page.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 40 m |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| HDCP version | 2.2/2.3 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| Power source type | DC |
| Power consumption (TX) | 6.01 W |
| Power consumption (RX) | 7.09 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 146.9 mm |
| Depth | 169.4 mm |
| Height | 30 mm |
| Weight | 640 g |
| Packaging data | |
| Package width | 95 mm |
| Package depth | 265 mm |
| Package height | 220 mm |
| Package weight | 1.22 kg |
| Technical details | |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case width | 232 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case gross weight | 6.69 kg |
