ATEN CS1944DPA-AT-G KVM switch
CS1944DPA - 4711581520554
ATEN 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included)
- Brand
- ATEN
- Product code
- CS1944DPA
- SKU
- KJ3G6XJXW07CO
- EAN/GTIN
- 4711581520554
- Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 120 Hz
- Daisy-chainable quad-display control connecting two CS1944DPAs to manage up to four PCs and four displays with one keyboard and mouse

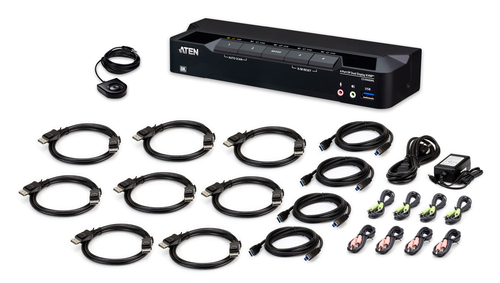

- All DisplayPort/USB cables and power adapter included for hassle-free installation Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands
Product Info
4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included)
ATEN 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: DC, Input voltage: 12 V, Power consumption (typical): 3.18 W. Width: 71.8 mm, Depth: 260 mm, Height: 43 mm
Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.

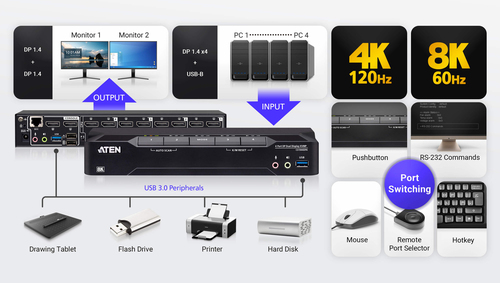

4 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console
The CS1944DPA is a 4-port KVM switch that empowers you to switch between projects with ease on a 4-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of four DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1944DPA is definitely your key to a workspace transformation.
Level up your multitasking productivity at this dual-display KVM console with:
● A pristine visual experience up to 4K@240 and 8K@60
● Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience
● A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer
● Multi-system compatibility with Windows, macOS, and Linux
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| Console RJ-45 ports quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| Performance | |
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| Maximum refresh rate | 240 Hz |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 3.18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 71.8 mm |
| Depth | 260 mm |
| Height | 43 mm |
| Weight | 620 g |
| Packaging content | |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84718000 |
| Country of origin | Taiwan |
