ATEN VS4814-AT video splitter
VS4814 - 4711581521605
ATEN 4-Port True 4K HDMI Splitter
- Brand
- ATEN
- Product code
- VS4814
- SKU
- WKM4N6G3EDQ9P
- EAN/GTIN
- 4711581521605
- EDID Sync™ – avoids boot-up display issues & optimizes resolutions

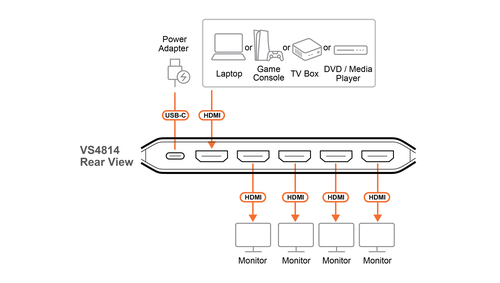

- One HDMI source shares four True 4K displays
- LPCM 7.1, Dolby® & DTS-HD Master Audio™
- Compact and aesthetic design with slick accent light
Product Info
4-Port True 4K HDMI Splitter
ATEN 4-Port True 4K HDMI Splitter. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Polycarbonate (PC). Output voltage: 5 V, Output current: 1 A. Width: 56.5 mm, Depth: 145 mm, Height: 15.2 mm. Cables included: USB Type-A to USB Type-C
The VS4814 is a 4-Port True 4K HDMI Splitter engineered to meet the highest demands of modern digital signage and commercial display applications. Featuring EDID Sync™, it delivers up to four simultaneous video streams from a single HDMI source, ensuring HDMI and HDCP 2.2-compliant visual excellence at all times. With support for HDR10+, 3D formats, and Deep Color, the VS4814 provides richer contrast and a wider color spectrum for truly immersive viewing experiences.
EDID Sync™ Smart Display Optimization
Automatically optimizes resolutions and prevents display issues for flawless display presentation
True 4K Dual-Display Sharing
Shares one HDMI source across four True 4K displays for maximum visual impact with uncompromised quality
HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
Guarantees stable performance, broad compatibility, and superior image quality
Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound

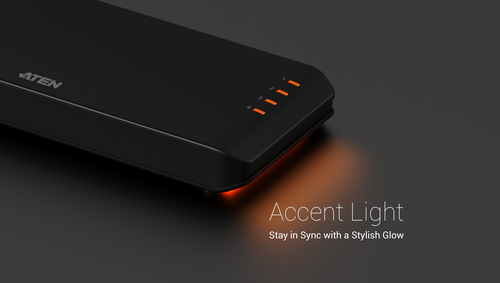

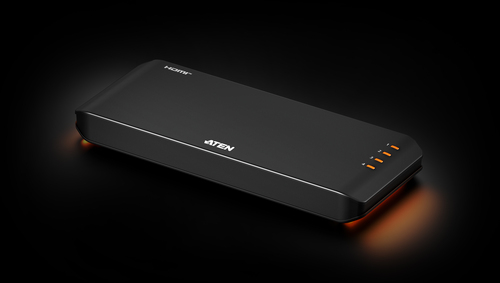

Aesthetic Compact Form
Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

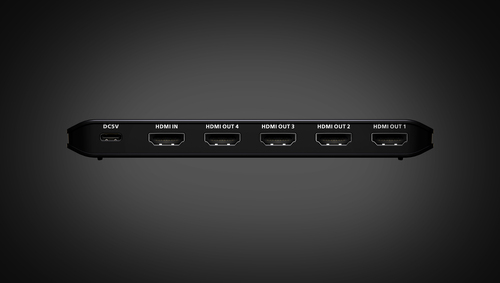

| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Video out | 4x HDMI |
| Video ports quantity | 5 |
| Features | |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum operating distance | 3 m |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| LED indicators | Yes |
| Power | |
| Output voltage | 5 V |
| Output current | 1 A |
| USB powered | Yes |
| Weight & dimensions | |
| Width | 56.5 mm |
| Depth | 145 mm |
| Height | 15.2 mm |
| Weight | 100 g |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 85437090 |
| Products per master (outer) case | 20 pc(s) |
| Country of origin | China |
