ATEN VS4812-AT KVM switch
VS4812 - 4711581521612
ATEN 2-Port True 4K HDMI Splitter
- Brand
- ATEN
- Product code
- VS4812
- SKU
- R3V410LPXDFJ0
- EAN/GTIN
- 4711581521612
- EDID Sync™ – avoids boot-up display issues & optimizes resolutions
- One HDMI source shares two True 4K displays
- LPCM 7.1, Dolby® & DTS-HD Master Audio™
- HDMI out 2 on/off via pushbutton
Product Info
2-Port True 4K HDMI Splitter
ATEN 2-Port True 4K HDMI Splitter. Video port type: HDMI, USB connector type: USB Type-C. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: USB, Input voltage: 5 V, Input current: 1 A. Width: 56.5 mm, Depth: 61 mm, Height: 15.2 mm
The VS4812 is a 2-Port True 4K HDMI Splitter designed for home cinema setups, dual-monitor professionals, and localized professional AV applications. It distributes the video stream from a single HDMI source to two displays simultaneously without loss of quality. EDID Sync™ and HDCP 2.2 compliance ensure smooth, hassle-free multi-display operation. With support for HDR10+, 3D formats, and Deep Color, the VS4812 delivers richer contrast and a wider color spectrum for a truly immersive viewing experience.
EDID Sync™ Smart Display Optimization
Automatically optimizes resolutions and prevents display issues for flawless display presentation

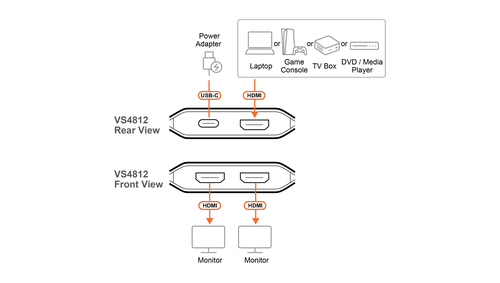

True 4K Dual-Display Sharing
Shares one HDMI source across two True 4K displays for double the visual impact with uncompromised quality
HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
Guarantees stable performance, broad compatibility, and superior image quality
Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound
Pushbutton Output Control
Instantly enables or disables HDMI out 2 with a press of the pushbutton for intuitive, hands-on display management

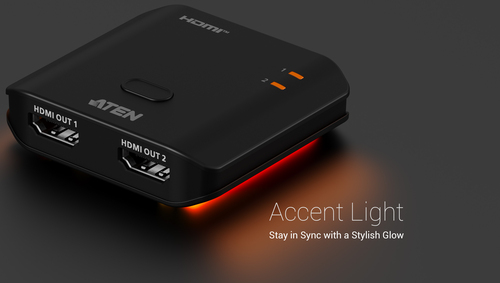

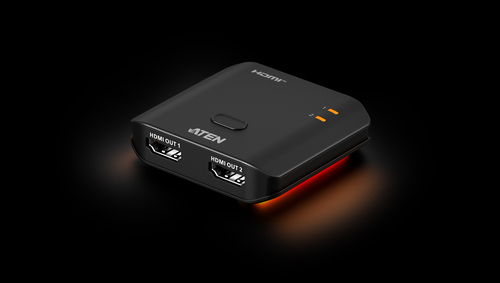

Aesthetic Compact Form
Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting
| Ports & interfaces | |
|---|---|
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| USB connector type | USB Type-C |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 18 Gbit/s |
| HDCP | Yes |
| Maximum operating distance | 3 m |
| HDCP version | 2.2 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | USB |
| Input voltage | 5 V |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 56.5 mm |
| Depth | 61 mm |
| Height | 15.2 mm |
| Weight | 30 g |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C |
| Quick installation guide | Yes |
| Packaging content | 1x 2-Port True 4K HDMI Splitter 1x USB power cable (Type-C to Type-A) (1 m) |
| Logistics data | |
| Case or master carton dimensions (W x D x H) | 213 x 320 x 156 mm |
| Master (outer) case net weight | 1.2 kg |
| Harmonized System (HS) code | 85437090 |
| Master (outer) case width | 213 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 156 mm |
| Master (outer) case gross weight | 2.37 kg |
| Master (outer) case volume | 0.38 cm³ |
| Products per master (outer) case | 20 pc(s) |
| Country of origin | China |
