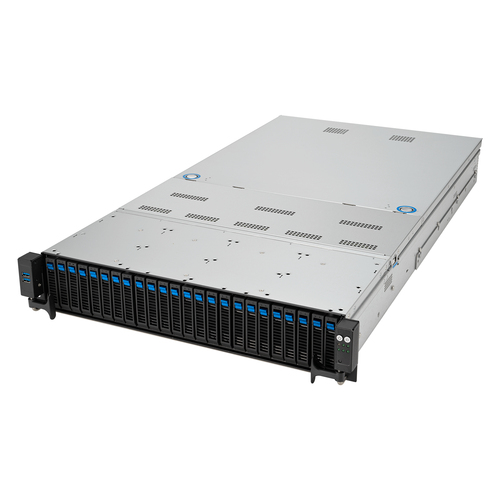

ASUS RS720A-E12-RS24
ASUS RS720A-E12-RS24 Socket SP5 Rack (2U) Grey
- Brand
- Asus
- Product code
- 90SF02E1-M00710
- SKU
- ZQ506Y1EGE7VC
- EAN/GTIN
- 4711387238356
- Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- Scale-up storage and expansion design: A total of 24 bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and nine PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads: Up to three dual-slot GPU, including NVIDIA A100 and A40, AMD Instinct and Xilinx
€4764.37
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
PCIe 5.0 Ready
ASUS RS720A-E12-RS24. Processor socket: Socket SP5, Processor manufacturer: AMD, Processor family: AMD EPYC. Supported memory types: DDR5-SDRAM, Supported DIMM module capacities: 128GB, 64GB, 32GB, Maximum internal memory: 6 TB. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, SSD form factor: M.2. On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X710-AT2
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
| Processor | |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9004 |
| Memory | |
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 128GB, 64GB, 32GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
| Storage | |
| Number of storage drives supported | 24 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 24 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 5.0 |
| Features | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Technical details | |
| Compliance certificates | BSMI, CE, CB, C-TICK, Federal Communications Commission (FCC) |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Power | |
| Power supply | 2600 W |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 840 mm |
| Height | 88.1 mm |
| Weight | 18.3 kg |
| Packaging data | |
| Package weight | 24.8 kg |
