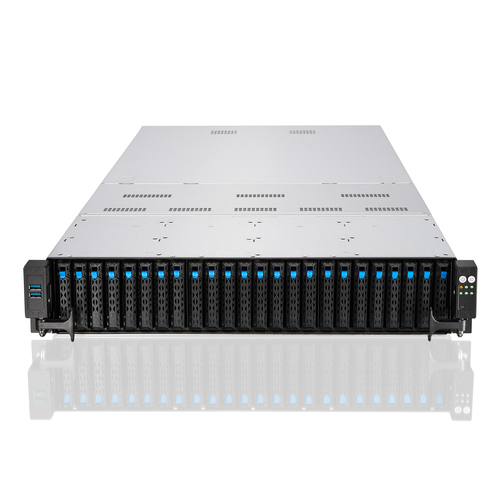

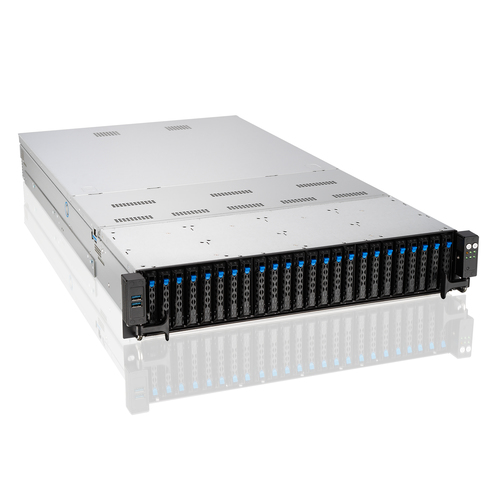

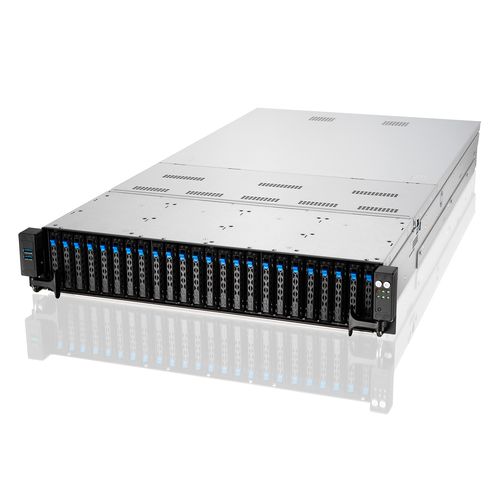

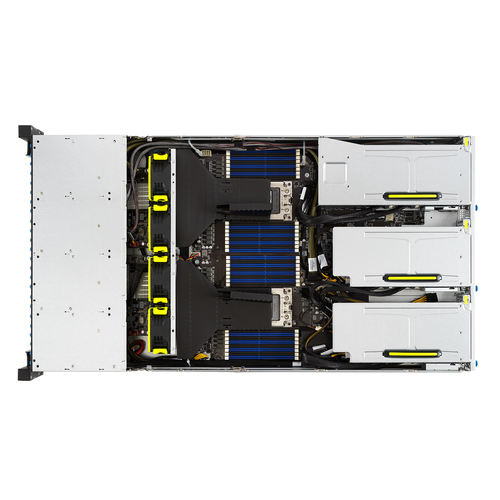

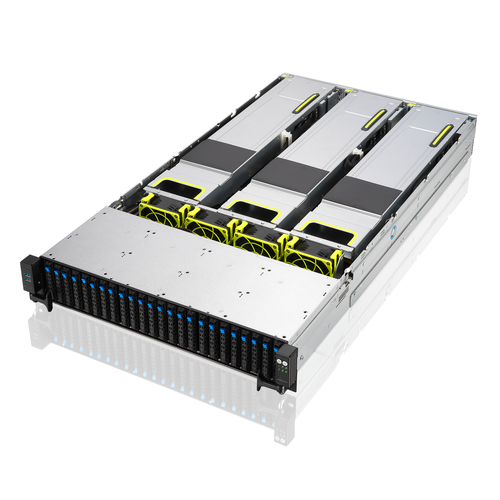

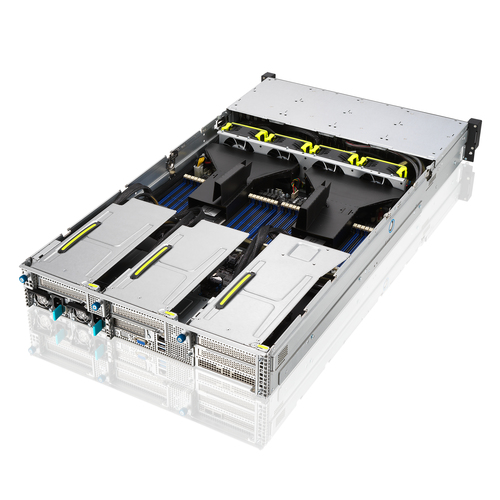

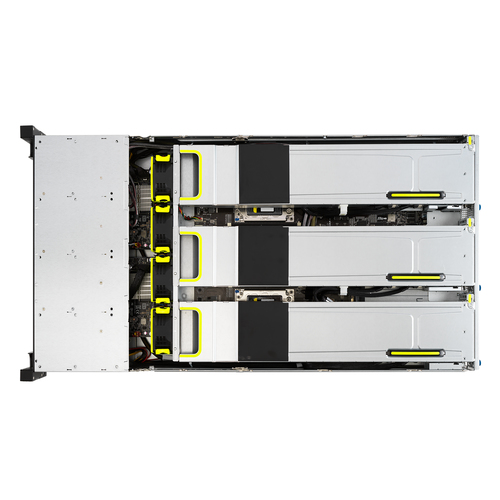

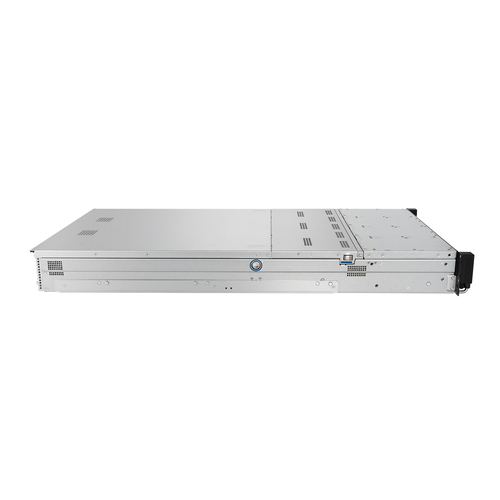

ASUS RS720-E11-RS24U
ASUS RS720-E11-RS24U Intel C741 Rack (2U) Black, Silver
- Brand
- Asus
- Product code
- 90SF01Z1-M008V0
- SKU
- WUQZEQGKDCR30
- EAN/GTIN
- 4711387382653
- Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge

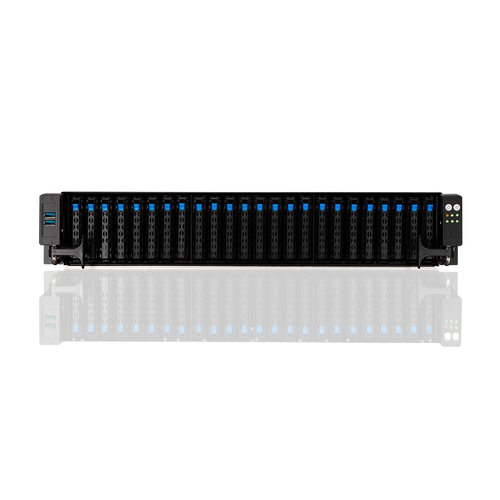

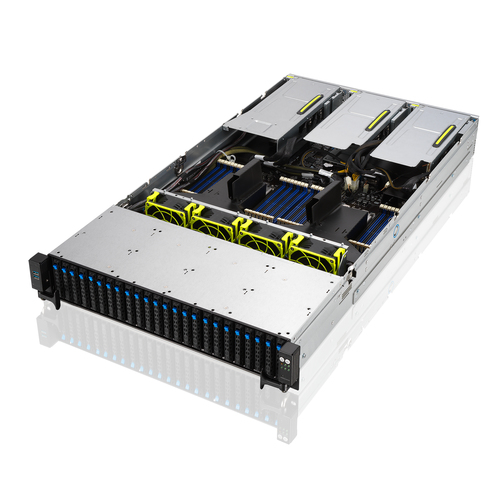

- Scale-up storage and expansion design: Up to 24 all-flash NVMe drives on the front panel and four PCIe 5.0 slots for higher bandwidth and system upgrade

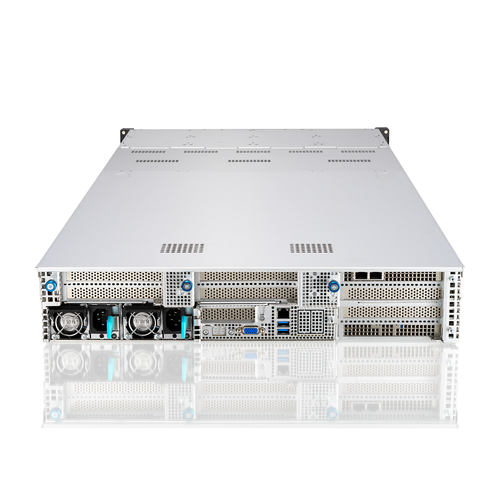

- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
€4816.43
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
PCIe 5.0 Ready
ASUS RS720-E11-RS24U. Motherboard chipset: Intel C741, Processor manufacturer: Intel, Processor family: Intel® Xeon® Scalable. Supported memory types: DDR5-SDRAM. Storage drive sizes supported: 2.5,3.5,M.2, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB, Maximum graphics card memory: 64 MB. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000,10000 Mbit/s, LAN controller: Intel X710-AT2, Intel® I350-AM2
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
| Processor | |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C741 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Number of DIMM slots | 32 |
| Supported memory types | DDR5-SDRAM |
| Storage | |
| Number of storage drives supported | 48 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
| Maximum graphics card memory | 64 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| LAN controller | Intel X710-AT2, Intel® I350-AM2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Expansion slots | |
| PCI Express slots version | 5.0 |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 3 |
| Features | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Power | |
| Power supply | 1600 W |
| Number of redundant power supplies supported | 2 |
| 80 PLUS certification | 80 PLUS Platinum |
| Weight & dimensions | |
| Width | 840 mm |
| Depth | 447 mm |
| Height | 88 mm |
| Weight | 36 kg |
