ASUS RS300-E12-PS4

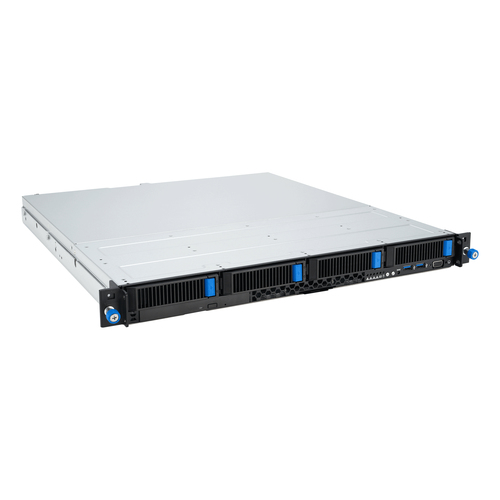

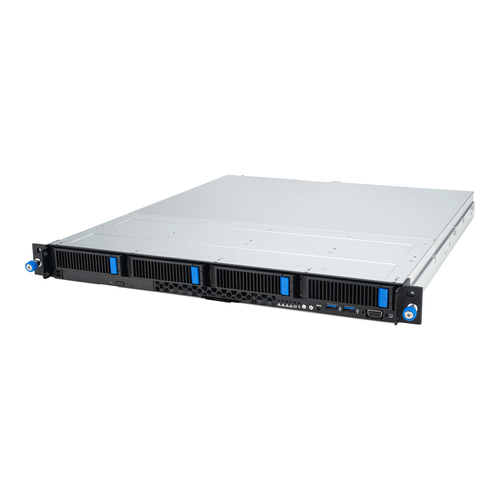

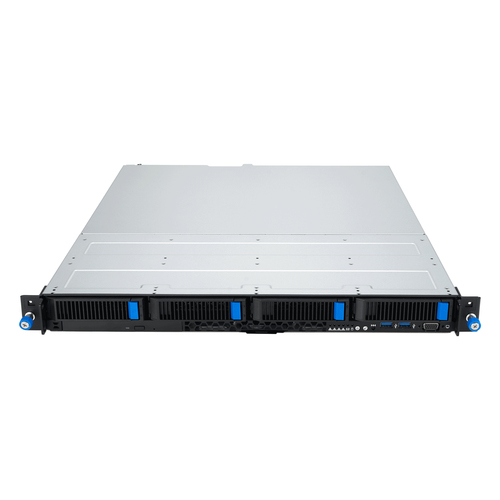

ASUS RS300-E12-PS4 LGA 1700 Rack (1U) Silver
- Brand
- Asus
- Product code
- 90SF03A1-M00060
- SKU
- OADB2ZG09IT21
- EAN/GTIN
- 4711387500354
- Powered by eight-core Intel Xeon E-2400-series processor and Intel Xeon 6300 series processor with support for up to 95 W TDP

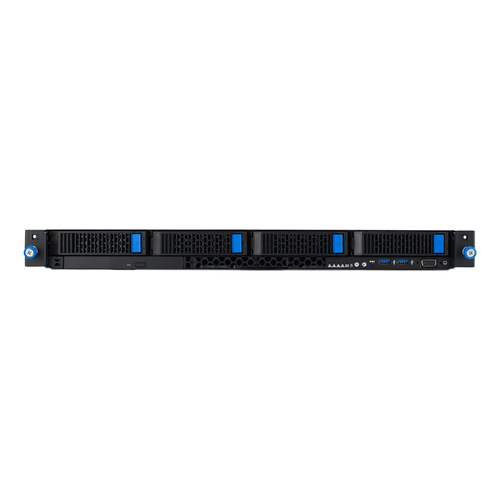

- Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
- Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
- Simplified system maintenance with a 350 W 80 PLUS Gold power supply
- Dual Intel I210-AT gigabit Ethernet with teaming support
- Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- Chassis-intrusion for enhanced physical security
€1258.57
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Intel Xeon E-2400 processors / Intel Xeon 6300 processors
ASUS RS300-E12-PS4. Processor socket: LGA 1700, Intel Xeon series: E-2400. Supported memory types: DDR5-SDRAM, Supported DIMM module capacities: 8GB, 16GB, 32GB, Maximum internal memory: 128 GB. Storage drive sizes supported: 3.5", Supported storage drive types: HDD & SSD, Supported storage drive interfaces: M.2, Serial ATA III, Serial Attached SCSI (SAS). Chassis type: Rack (1U), Product colour: Silver, LED indicators: Power, Reset, HDD. Power supply: 350 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Intel Xeon E-2400 processors / Intel Xeon 6300 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.
| Processor | |
|---|---|
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Intel Xeon series | E-2400 |
| Memory | |
| Number of DIMM slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Supported RDIMM clock speeds | 4400,4000,3600 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 3.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA III, Serial Attached SCSI (SAS) |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Number of SATA III connectors | 8 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Silver |
| LED indicators | Power, Reset, HDD |
| Power | |
| Power supply | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6.3 A |
| 80 PLUS certification | 80 PLUS Gold |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 497 mm |
| Depth | 439.5 mm |
| Height | 44 mm |
| Weight | 13.5 kg |
