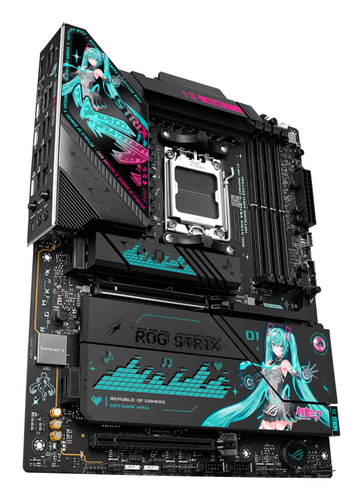

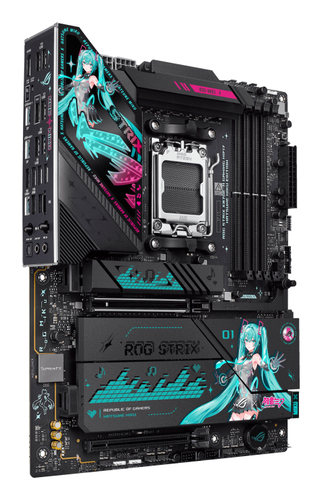

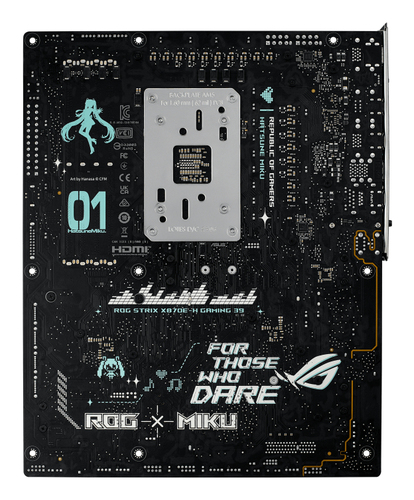

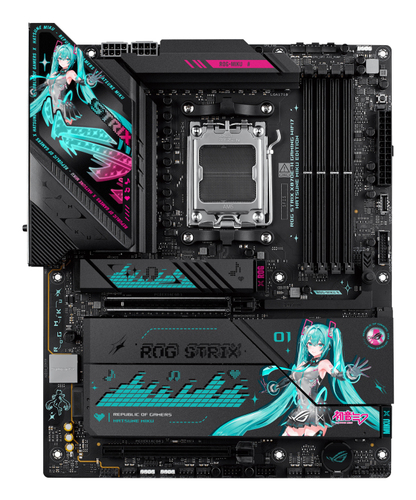

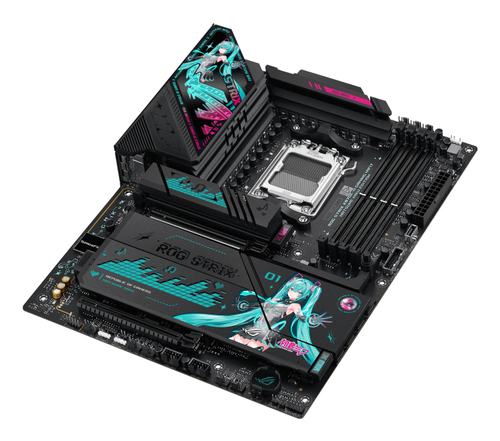

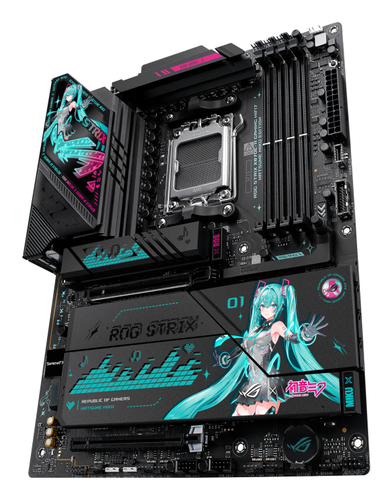

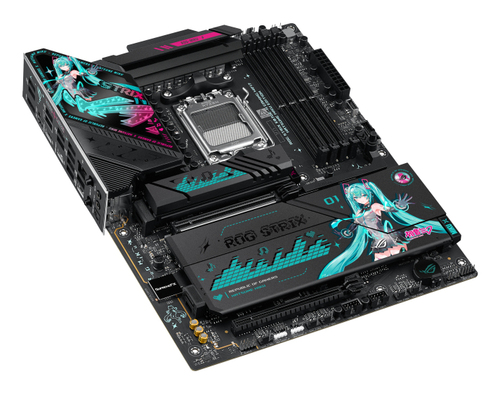

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
90MB1MA0-M0EAY0 - 4711636174640
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AMD X870E Socket AM5 ATX
- Brand
- Asus
- Product code
- 90MB1MA0-M0EAY0
- SKU
- XCTCEINE15DD9
- EAN/GTIN
- 4711636174640
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870E Realtek ALC1220P 7.1 channels
- DDR5-SDRAM 4 Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Product Info
AMD X870E, AM5, 4 x DIMM slots, max. 256GB, DDR5, Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, ATX
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Feel the Beat,
In-Game Feats

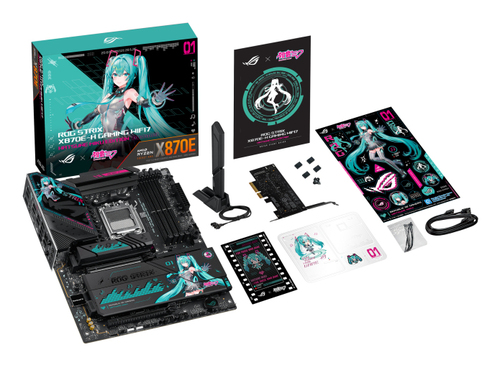

ROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku’s signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of water pump connectors | 1 |

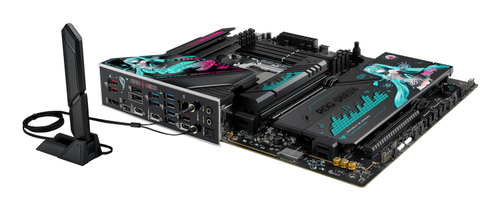

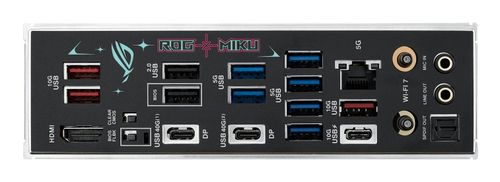

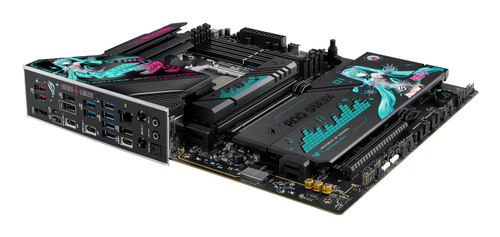

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
