ASUS ROG NUC RNUC15JNK9X489A3

90AS00I1-M002Z0 - 4711636132961

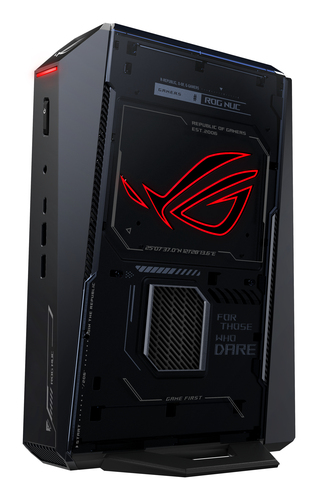

ASUS ROG NUC RNUC15JNK9X489A3 Intel Core Ultra 9 275HX 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Windows 11 Mini PC Black

Brand: Asus
Product Family: ROG
Product series: NUC
Product code: 90AS00I1-M002Z0
SKU: T6YRUXWR30OSV
EAN/GTIN: 4711636132961

Windows 11 64-bit
Intel Core Ultra 9 275HX (36MB Cache)
NVIDIA GeForce RTX 5070
32GB (6400MHz) DDR5-SDRAM & 1000GB SSD

€2767.46 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Intel Core Ultra 9 275HX (36MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, NVIDIA GeForce RTX 5070, LAN, WLAN, Bluetooth, Windows 11 64-bit

ASUS ROG NUC RNUC15JNK9X489A3. Processor family: Intel Core Ultra 9, Processor model: 275HX. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Operating system installed: Windows 11, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 3.12 kg. Product colour: Black

Gaming Redefined
Power Meets Precision

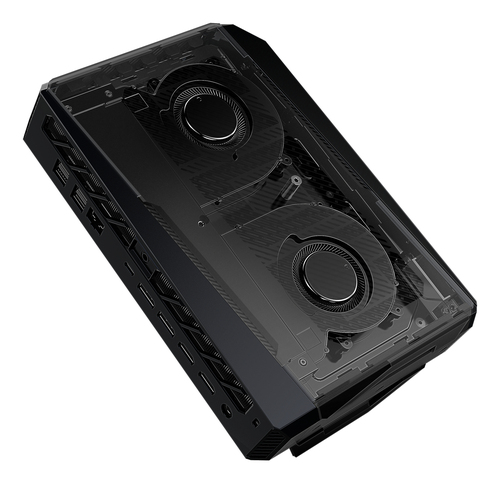

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.

Specifications

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra 9

Processor generation Intel Core Ultra (Series 2)

Processor model 275HX

Processor cores 24

Processor threads 24

Processor boost frequency 5.4 GHz

Performance cores 8

Efficient cores 16

Performance-core Max Turbo Frequency 5.4 GHz

Efficient-core Max Turbo Frequency 4.6 GHz

Performance-core base frequency 2.7 GHz

Efficient-core base frequency 2.1 GHz

Processor cache 36 MB

Processor base power 55 W

Maximum turbo power 160 W

Neural processor unit (NPU)

Neural processor unit (NPU) Intel AI Boost

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to 36 TOPs

NPU performance up to 13 TOPs

GPU performance up to 8 TOPs

Memory

Internal memory 32 GB

Maximum internal memory 96 GB

Internal memory type DDR5-SDRAM

Memory clock speed 6400 MHz

Storage

Total storage capacity 1 TB

Storage media SSD

Optical drive type No

Total SSDs capacity 1 TB

Number of SSDs installed 1

SSD capacity 1 TB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Graphics

Discrete graphics card Yes

Discrete GPU manufacturer NVIDIA

On-board graphics card Yes

Discrete graphics card model NVIDIA GeForce RTX 5070

Number of discrete graphics cards 1

On-board GPU manufacturer Intel

On-board graphics card family Intel® Graphics

On-board graphics card model Intel® Graphics

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000,2500 Mbit/s

Cabling technology 10/100/1000Base-T(X)

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

WLAN controller manufacturer Intel

WLAN controller model Intel Wi-Fi 7 BE200

Bluetooth Yes

Bluetooth version 5.4

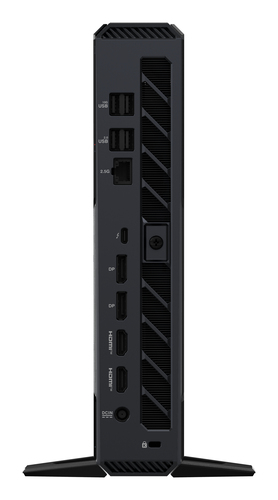

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6

Intel® Thunderbolt 4 Yes

Thunderbolt 4 ports quantity 1

HDMI ports quantity 2

HDMI version 2.1

DisplayPorts quantity 2

DisplayPort version 1.4a

Ethernet LAN (RJ-45) ports 1

Combo headphone/mic port Yes

DC-in jack Yes

Number of rear USB ports 5

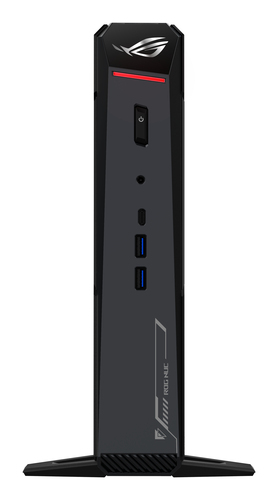

Number of front USB ports 3

Design

Chassis type Mini PC

Placement supported Horizontal/Vertical

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Performance

Market positioning Gaming

Product type Mini PC

Software

Operating system architecture 64-bit

Operating system installed Windows 11

Weight & dimensions

Width 282.4 mm

Depth 187.7 mm

Height 56.5 mm

Weight 3.12 kg

Display

Display included No
