ASUS ROG NUC RNUC15JNK7X569A3

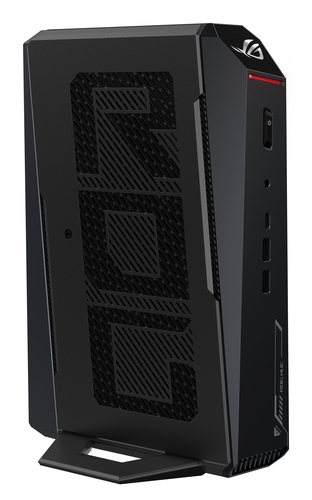

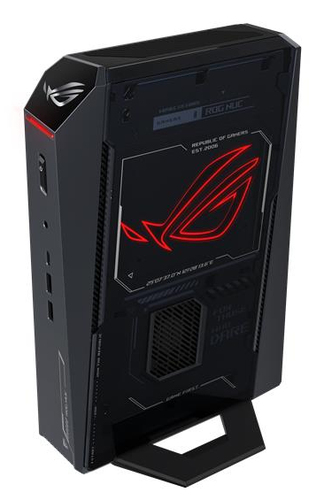

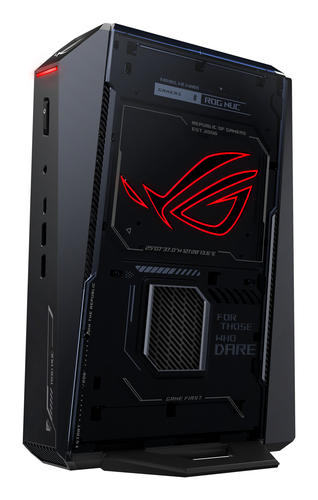

ASUS ROG NUC RNUC15JNK7X569A3 Intel Core Ultra 7 255HX 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Windows 11 Mini PC Black

Brand: Asus
Product Family: ROG
Product series: NUC
Product code: 90AS00I1-M00310
SKU: 0LHSRF2MGWWIB
EAN/GTIN: 4711636132985

Windows 11 64-bit
Intel Core Ultra 7 255HX (30MB Cache)
NVIDIA GeForce RTX 5060
16GB (6400MHz) DDR5-SDRAM & 1000GB SSD

€2178.77 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ASUS ROG NUC RNUC15JNK7X569A3. Processor family: Intel Core Ultra 7, Processor model: 255HX. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 3.12 kg. Product colour: Black

Gaming Redefined
Power Meets Precision

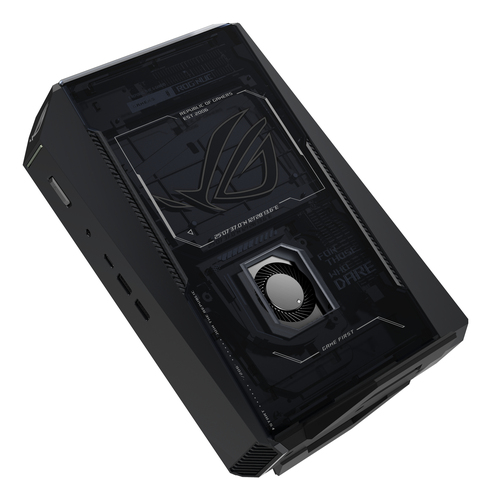

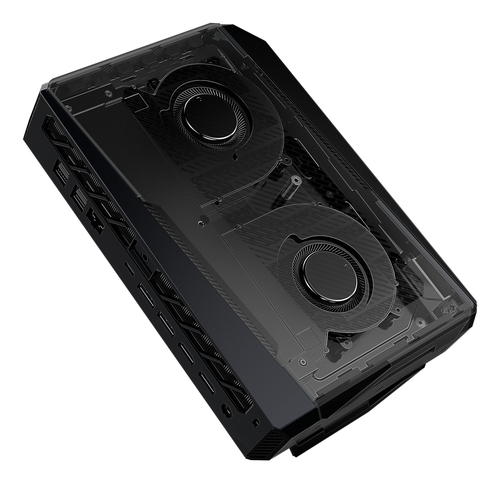

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	255HX
Processor cores	20
Processor threads	20
Processor boost frequency	5.2 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Internal memory	16 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	6400 MHz
Storage
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Graphics
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Yes
Bluetooth version	5.4
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes

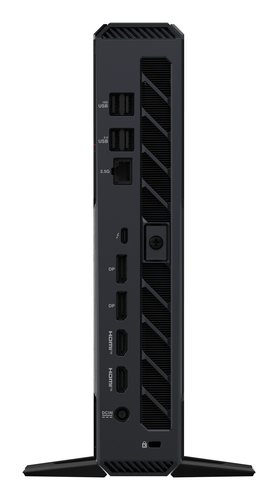

Number of rear USB ports	5

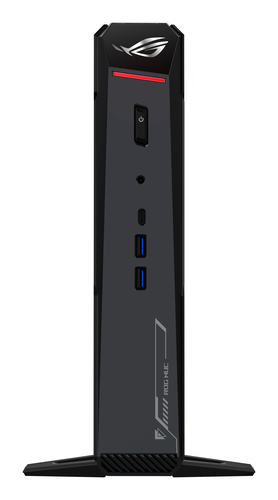

Number of front USB ports	3
Design
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Performance
Market positioning	Gaming
Product type	Mini PC
Software
Operating system architecture	64-bit
Operating system installed	Windows 11
Weight & dimensions
Width	282.4 mm
Depth	187.7 mm
Height	56.5 mm
Weight	3.12 kg
Display
Display included	No
