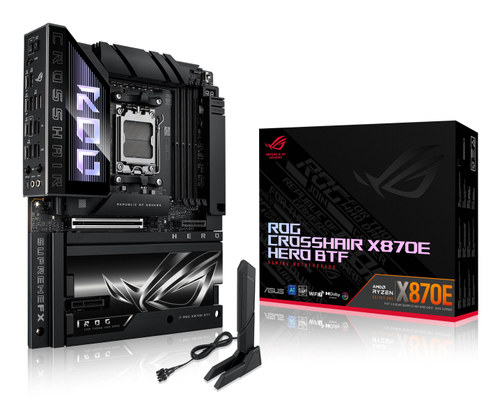

ASUS ROG CROSSHAIR X870E HERO BTF

90MB1MX0-M0EAY0 - 4711636227094

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX

Brand: Asus
Product code: 90MB1MX0-M0EAY0
SKU: O4TTO8CH8SG6M
EAN/GTIN: 4711636227094

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD X870E 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

€670.88 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

AMD X870E, AM5, 4 x DIMM slots, max.256GB DDR5, 2.5/5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256Mb Flash ROM, UEFI AMI BIOS, ATX

ASUS ROG CROSSHAIR X870E HERO BTF. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

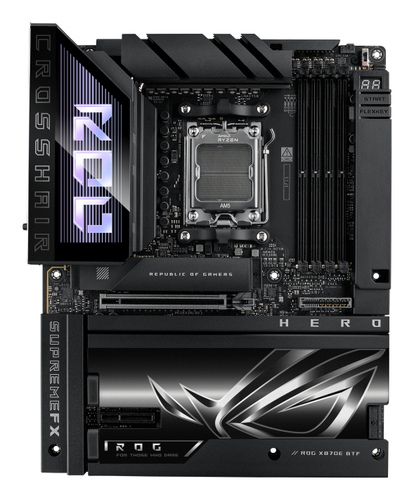

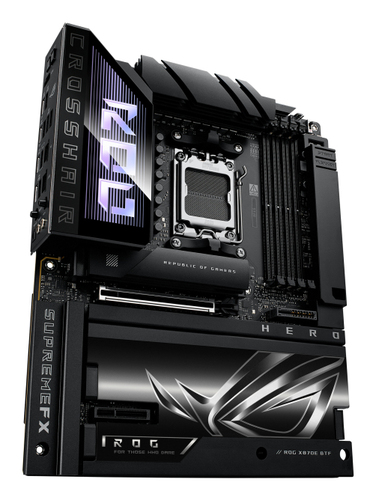

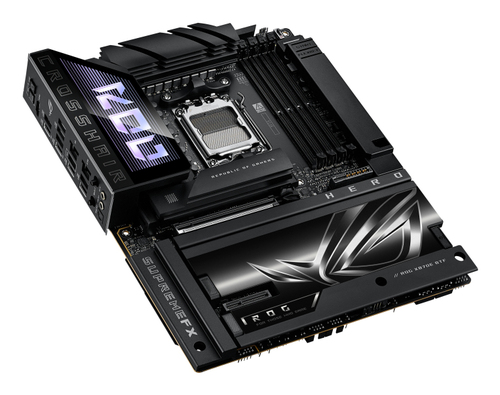

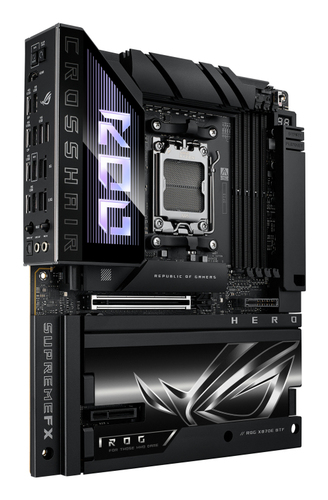

ROG Crosshair X870E HERO BTF

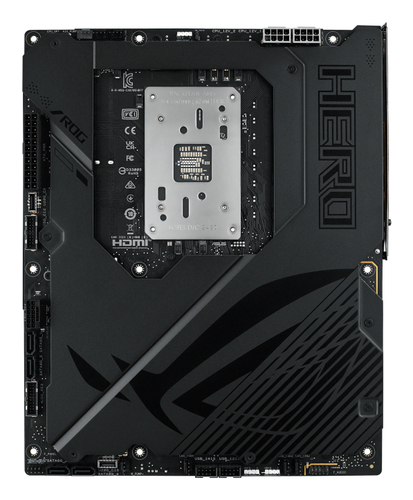

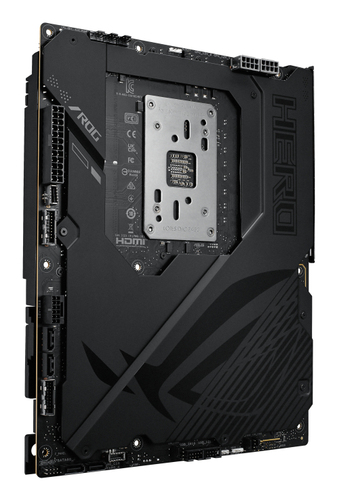

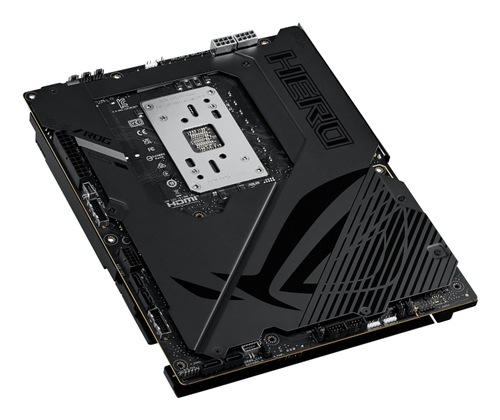

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 4

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility ECC & Non-ECC

Supported memory clock speed (max) 8600 MHz

Maximum internal memory 256 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 9

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

On-board graphics card No

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 2x2 connectors 2

Number of SATA III connectors 4

Front panel audio connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of CPU fan connectors 1

Number of chassis fan connectors 4

EPS power connector (8-pin) Yes

12V power connector Yes

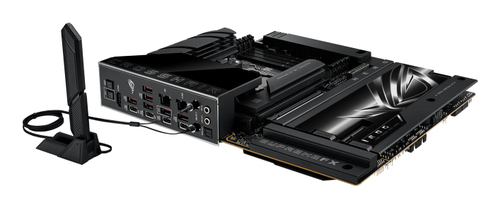

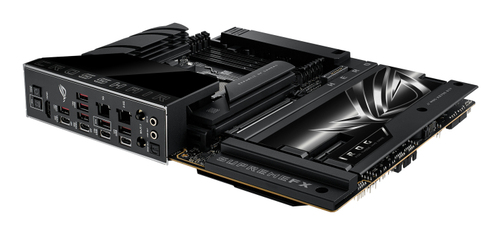

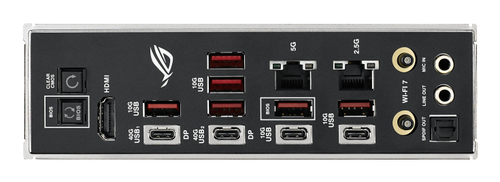

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2

USB4 Gen 3x2 ports quantity 2

Ethernet LAN (RJ-45) ports 2

HDMI ports quantity 1

Microphone in Yes

S/PDIF out port Yes

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Bluetooth Yes

Bluetooth version 5.4

Features

Motherboard chipset AMD X870E

Audio output channels 7.1 channels

Product colour Multicolour

Component for PC

Motherboard form factor ATX

Motherboard chipset family AMD

Windows operating systems supported Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots 1

Number of M.2 (M) slots 5

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Clear CMOS button Yes

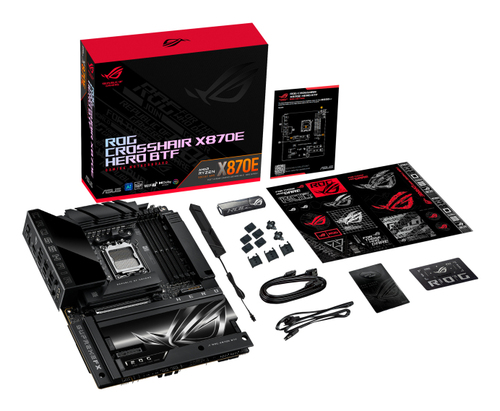

Packaging data

Package width 366 mm

Package depth 308 mm

Package height 110 mm

Package weight 4.47 kg

Weight & dimensions

Width 305 mm

Depth 244 mm

Height 57 mm

Other features

Weight 2.62 kg
