ASUS PRIME B840M-R

90MB1PT0-M0EAY0 - 4711636560696

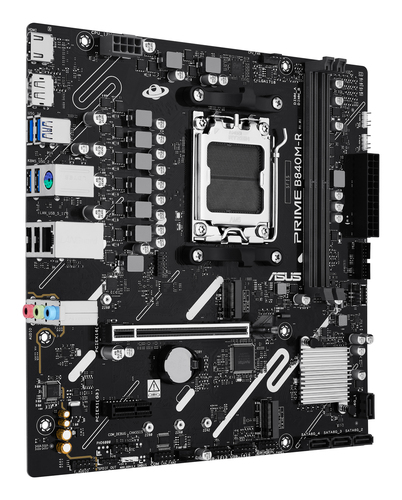

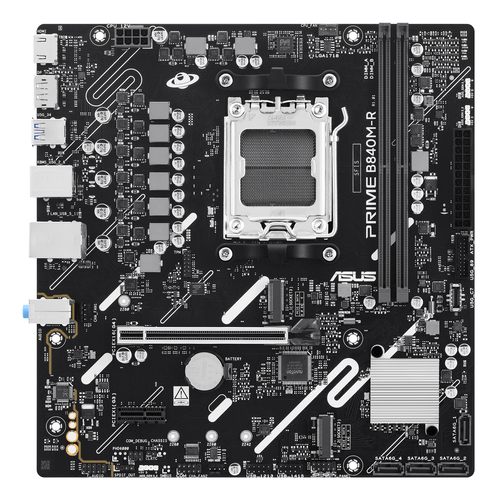

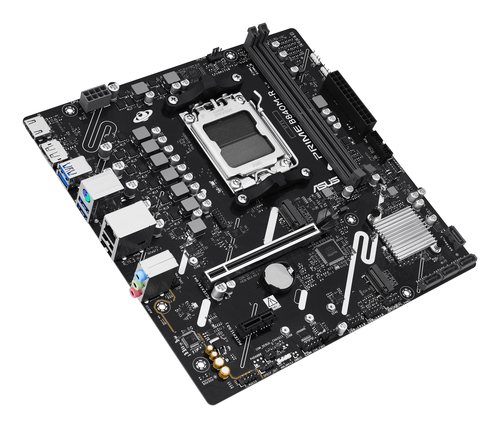

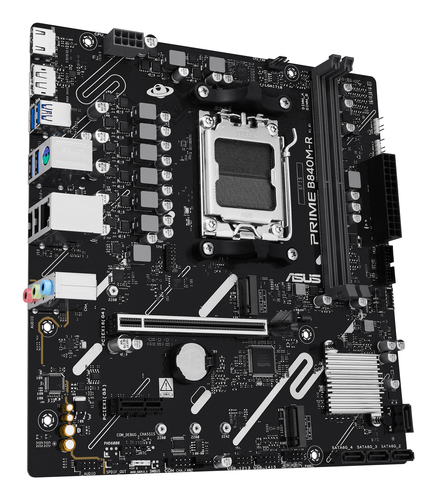

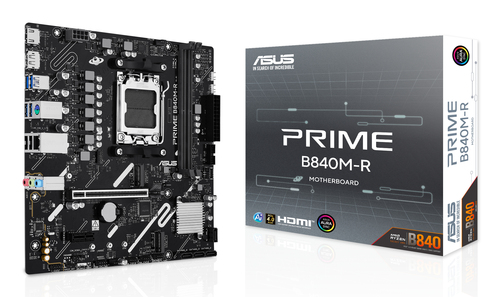

ASUS PRIME B840M-R AMD B840 Socket AM5 micro ATX

Brand: Asus
Product code: 90MB1PT0-M0EAY0
SKU: Y0LVJ1GEH8S8V
EAN/GTIN: 4711636560696

AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
PC micro ATX AMD B840 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit
Gigabit Ethernet

€118.62 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

AM5, AMD B840, 2 x DIMM slots, max. 128GB, DDR5, 1Gb Ethernet, 32MB (256Mb) Flash ROM, UEFI AMI BIOS, micro-ATX

ASUS PRIME B840M-R. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet

Prime B840M-R
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-R motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 2

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility Non-ECC

Supported memory clock speed (max) 7600 MHz

Maximum internal memory 128 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 6

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

Number of SATA III connectors 4

S/PDIF out connector Yes

Front panel audio connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of CPU fan connectors 1

Number of chassis fan connectors 2

EPS power connector (8-pin) Yes

Number of COM connectors 1

TPM connector Yes

12V power connector Yes

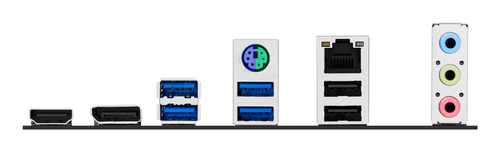

Rear panel I/O ports

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

Ethernet LAN (RJ-45) ports 1

PS/2 ports quantity 1

HDMI ports quantity 1

DisplayPorts quantity 1

Headphone outputs 1

Line-in Yes

Microphone in Yes

USB connector type USB Type-A

Network

Ethernet LAN Yes

Ethernet interface type Gigabit Ethernet

Wi-Fi No

Features

Motherboard chipset AMD B840

Audio output channels 7.1 channels

Product colour Multicolour

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family AMD

Windows operating systems supported Windows 11, Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots 1

Number of M.2 (M) slots 2

1st M.2 largest key size 2280

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Packaging data

Package width 260 mm

Package depth 270 mm

Package height 51.5 mm

Package weight 924 g

Weight & dimensions

Width 236 mm

Depth 229 mm

Height 36.5 mm

Other features

Weight 563 g
