ASUS PRIME B840M-K

90MB1PK0-M0EAY0 - 4711636435048

ASUS PRIME B840M-K AMD B840 Socket AM5 micro ATX

Brand: Asus
Product code: 90MB1PK0-M0EAY0
SKU: G1R2Z03A1GXVC
EAN/GTIN: 4711636435048

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC micro ATX AMD B840 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet

€130.7 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

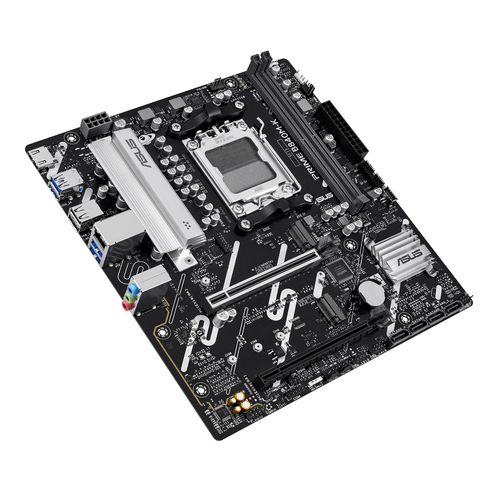

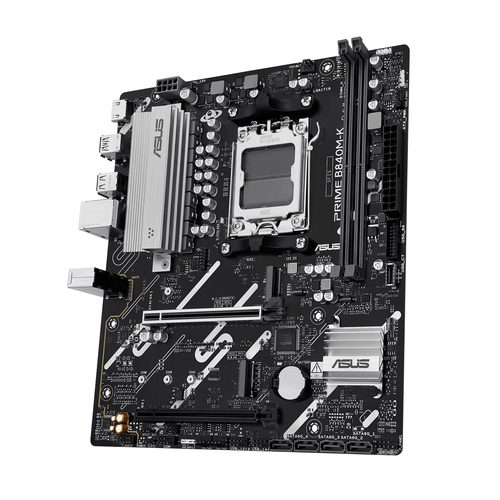

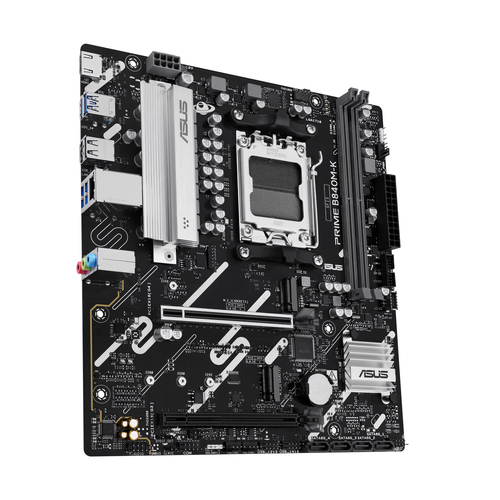

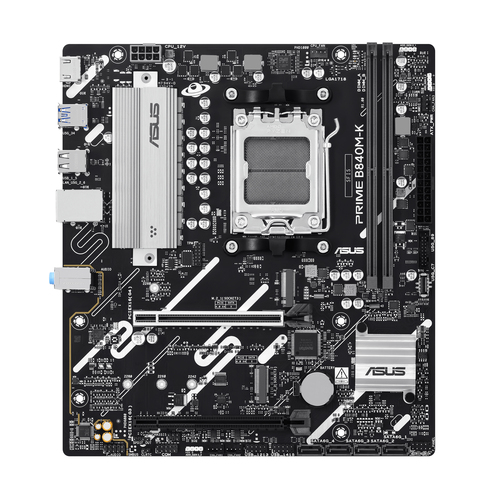

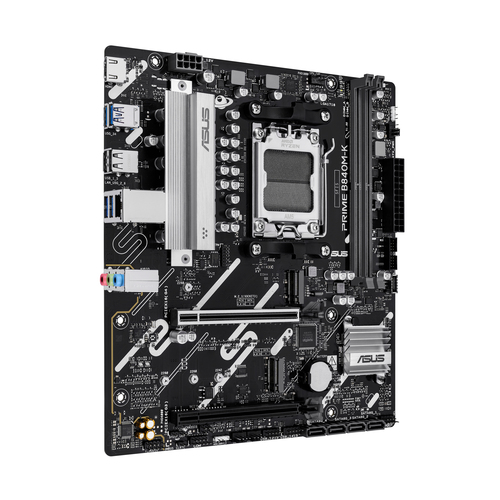

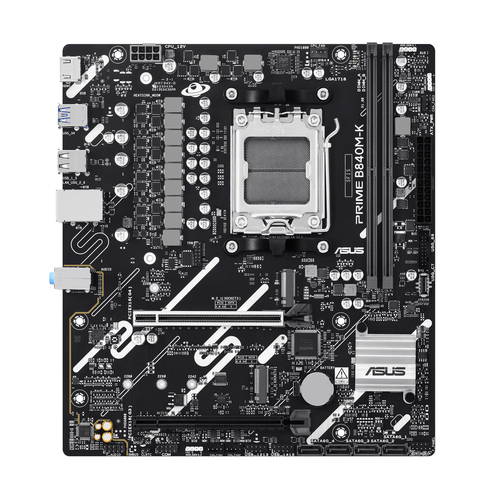

PRIME B840M-K AMD B840 micro-ATX (DDR5, M.2, Realtek 2.5Gb Ethernet, HDMI, Front USB 5Gbps Type-C, Aura Sync)

ASUS PRIME B840M-K. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

B840M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets Socket AM5

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 2

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility ECC & Non-ECC

Maximum internal memory 128 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 6

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

Number of SATA III connectors 4

S/PDIF out connector Yes

Front panel audio connector Yes

Front panel connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of chassis fan connectors 3

EPS power connector (8-pin) Yes

Number of COM connectors 1

TPM connector Yes

12V power connector Yes

RGB LED pin header Yes

Number of RGB LED pin headers 3

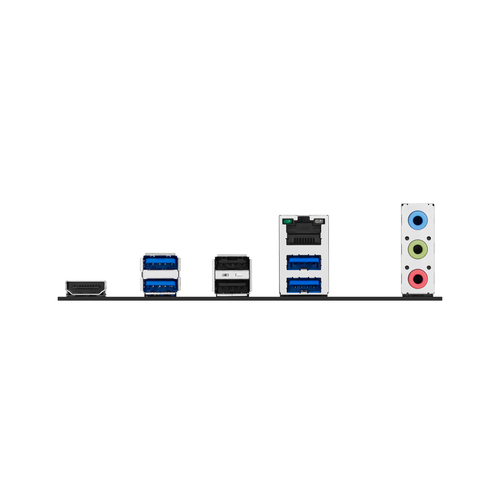

Rear panel I/O ports

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi No

Features

Motherboard chipset AMD B840

Audio output channels 7.1 channels

Product colour Black

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family AMD

Windows operating systems supported Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

Number of M.2 (M) slots 2

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Packaging data

Package width 270 mm

Package depth 263 mm

Package height 51.5 mm

Package weight 1.02 kg

Weight & dimensions

Width 244 mm

Depth 221 mm

Packaging content

Cables included SATA

Screws included Yes
