ASUS NUC RNUC16GDKU96C4N2

90AS00Q1-M000K0 - 4711636424059

ASUS NUC RNUC16GDKU96C4N2 Intel Core Ultra X9 388H 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black

Brand: Asus
Product Family: NUC
Product series: 16 Pro
Product code: 90AS00Q1-M000K0
SKU: W10A8A0U7SD1F
EAN/GTIN: 4711636424059

Windows 11 Pro 64-bit
Intel Core Ultra X9 388H (18MB Cache)
32GB DDR5-SDRAM (1 x 32) & 1000GB SSD

€2485.24 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Intel Core Ultra X9 388H (18MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Arc B390, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

ASUS NUC RNUC16GDKU96C4N2. Processor family: Intel Core Ultra X9, Processor model: 388H. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc B390. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 685 g. Product colour: Black

Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

Specifications

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra X9

Processor generation Intel® Core™ Ultra (Series 3)

Processor model 388H

Processor cores 16

Processor threads 16

Processor boost frequency 5.1 GHz

Performance cores 4

Efficient cores 8

Low Power Efficient-cores 4

Performance-core Max Turbo Frequency 5.1 GHz

Efficient-core Max Turbo Frequency 3.8 GHz

Low Power Efficient-core Max Turbo Frequency 3.7 GHz

Performance-core base frequency 2.1 GHz

Efficient-core base frequency 1.6 GHz

Low Power Efficient-core Base Frequency 1600 MHz

Processor cache 18 MB

Processor cache type Smart Cache

Processor base power 25 W

Maximum turbo power 80 W

Neural processor unit (NPU)

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to 50 TOPs

GPU performance up to 122 TOPs

Memory

Internal memory 32 GB

Maximum internal memory 128 GB

Internal memory type DDR5-SDRAM

Memory layout (slots x size) 1 x 32 GB

Memory slots 2x SO-DIMM

Storage

Total storage capacity 1 TB

Storage media SSD

Optical drive type No

Number of storage drives installed 1

Total SSDs capacity 1 TB

Number of SSDs installed 1

SSD capacity 1 TB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Graphics

Discrete graphics card No

On-board graphics card Yes

Discrete graphics card model Not available

On-board GPU manufacturer Intel

On-board graphics card family Intel Arc Graphics

On-board graphics card model Intel Arc B390

Network

Ethernet LAN Yes

Ethernet LAN data rates 2500 Mbit/s

LAN controller Intel I226-V

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

Bluetooth Yes

Bluetooth version 6.0

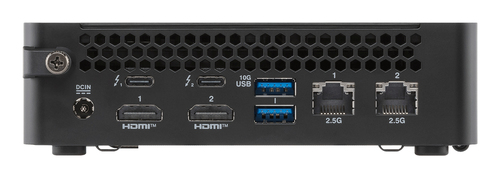

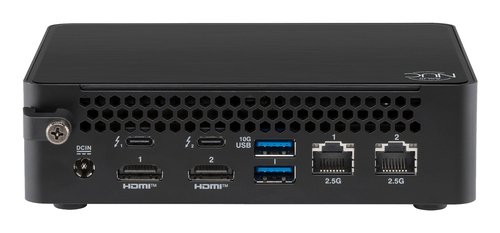

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

Intel® Thunderbolt 4 Yes

Thunderbolt 4 ports quantity 2

HDMI ports quantity 2

HDMI version 2.1

Ethernet LAN (RJ-45) ports 2

DC-in jack Yes

Number of rear USB ports 4

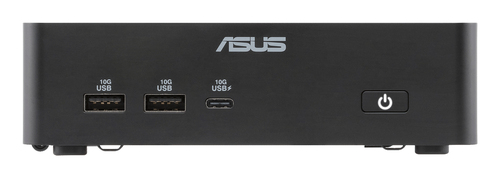

Number of front USB ports 3

Design

Chassis type Mini PC

Colour name Black

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Introduction year 2026

Performance

Market positioning Home & office

Product type Mini PC

Software

Operating system architecture 64-bit

Operating system installed Windows 11 Pro

Weight & dimensions

Width 144 mm

Depth 117 mm

Height 42 mm

Weight 685 g

Packaging data

Package width 206 mm

Package depth 108 mm

Package height 171.5 mm

Package weight 1.5 kg

Display

Display included No
