ASUS NUC RNUC16GDKU7664N2
90AS00Q1-M000A0 - 4711636423984

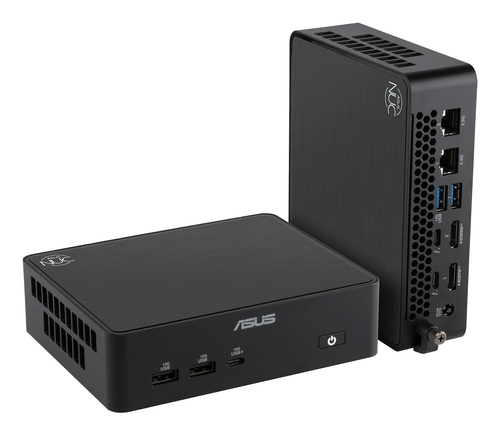

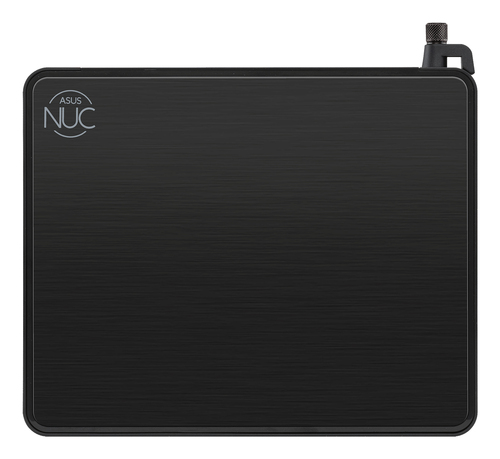

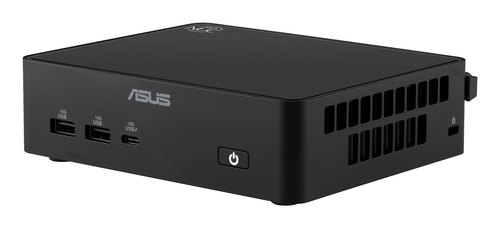

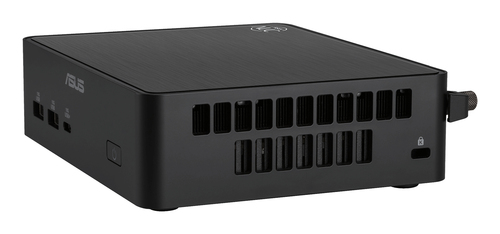

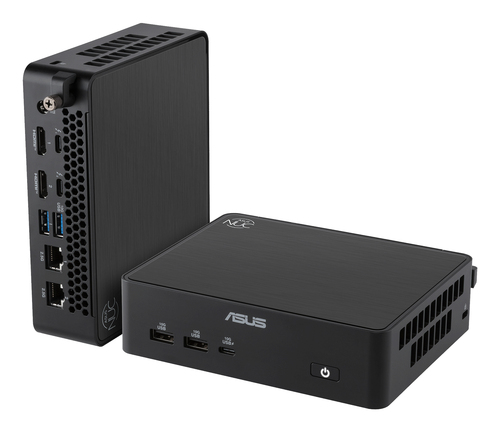

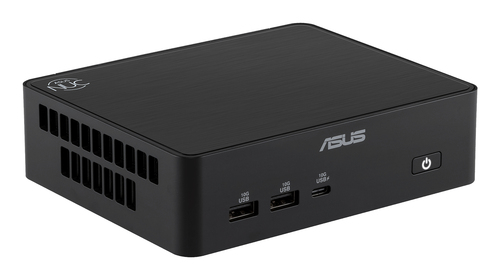

ASUS NUC RNUC16GDKU7664N2 Intel Core Ultra 7 356H 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
- Brand
- Asus
- Product Family
- NUC
- Product series
- 16 Pro
- Product code
- 90AS00Q1-M000A0
- SKU
- P6846NSA9AH84
- EAN/GTIN
- 4711636423984
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 356H (18MB Cache)
- 16GB DDR5-SDRAM (2 x 8) & 1000GB SSD
Product Info
Intel Core Ultra 7 356H (18MB Cache), 16GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
ASUS NUC RNUC16GDKU7664N2. Processor family: Intel Core Ultra 7, Processor model: 356H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 685 g. Product colour: Black
Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Processor model | 356H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.9 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Low Power Efficient-core Base Frequency | 1500 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor base power | 25 W |
| Maximum turbo power | 80 W |
| Neural processor unit (NPU) | |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 50 TOPs |
| GPU performance up to | 40 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |

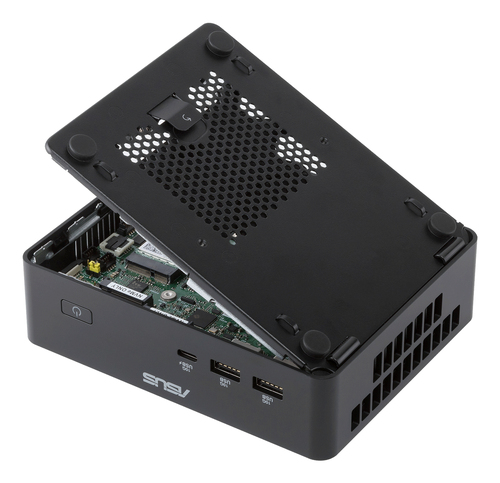

| Memory slots | 2x SO-DIMM |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |

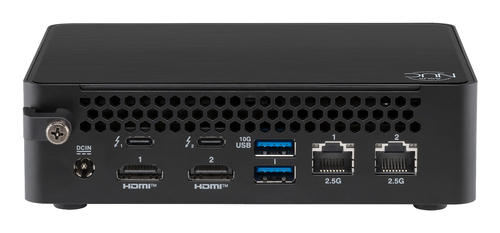

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |

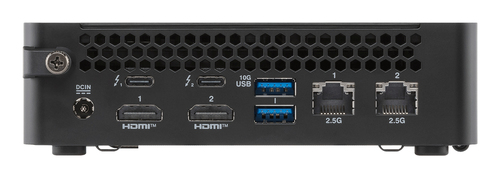

| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Number of rear USB ports | 4 |

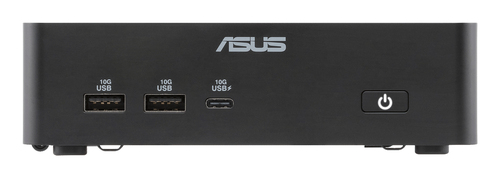

| Number of front USB ports | 3 |
| Design | |
| Chassis type | Mini PC |
| Colour name | Black |

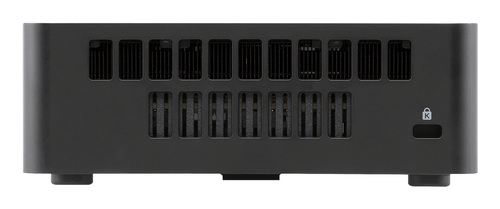

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction year | 2026 |
| Performance | |
| Market positioning | Home & office |
| Product type | Mini PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 117 mm |
| Height | 42 mm |
| Weight | 685 g |
| Packaging data | |
| Package width | 206 mm |
| Package depth | 108 mm |
| Package height | 171.5 mm |
| Package weight | 1.5 kg |
| Display | |
| Display included | No |
