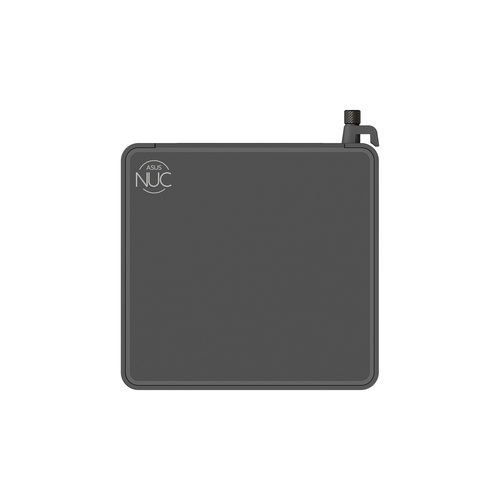

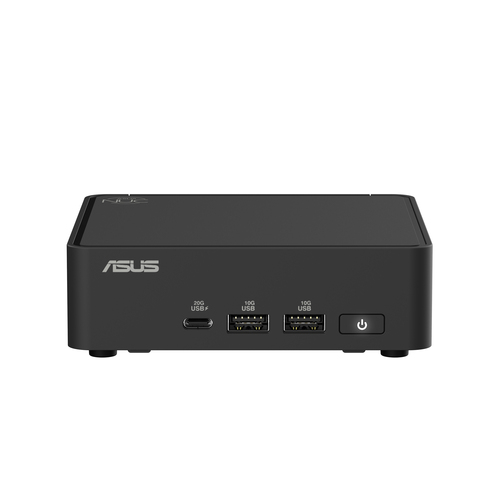

ASUS NUC RNUC15CRKU5063C2

90AS00L1-M005L0 - 4711636406642

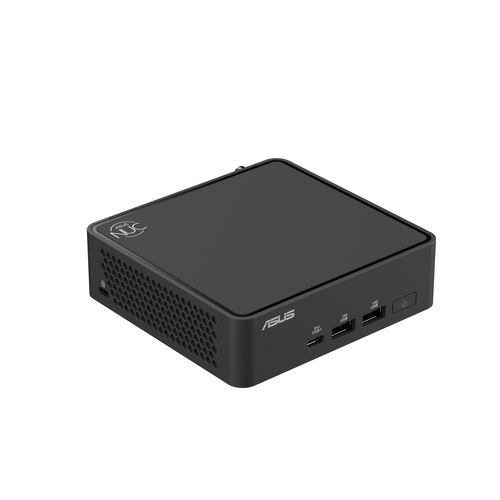

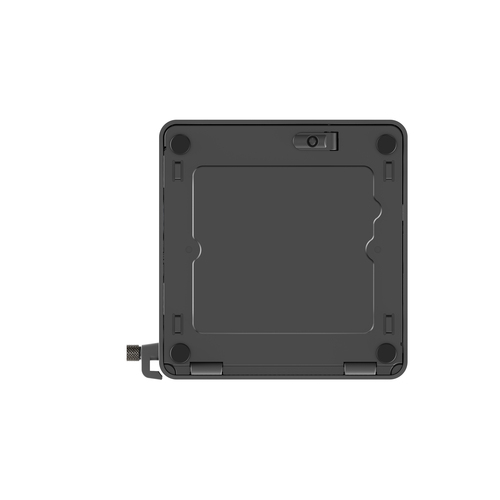

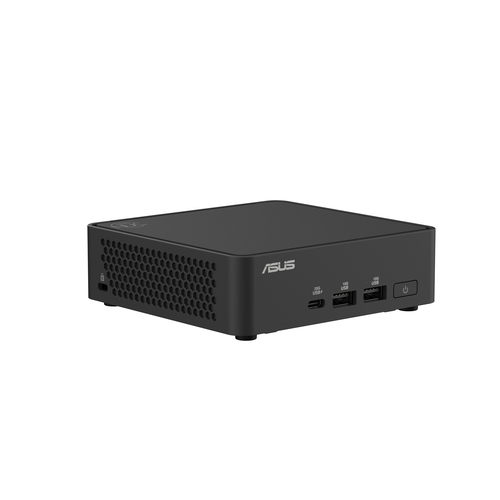

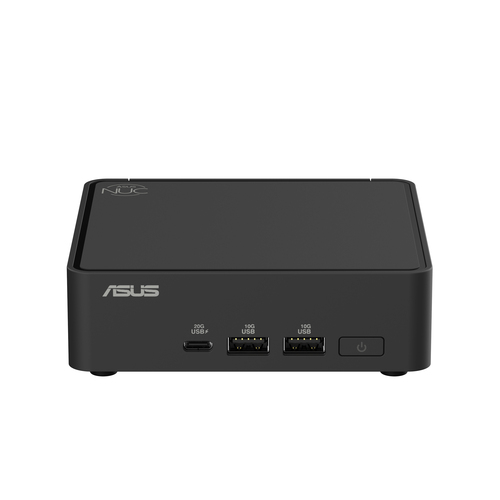

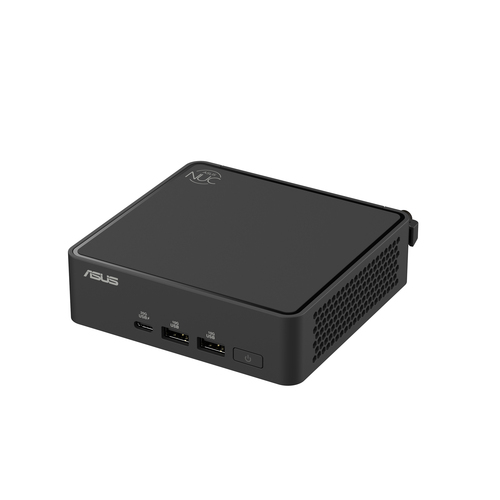

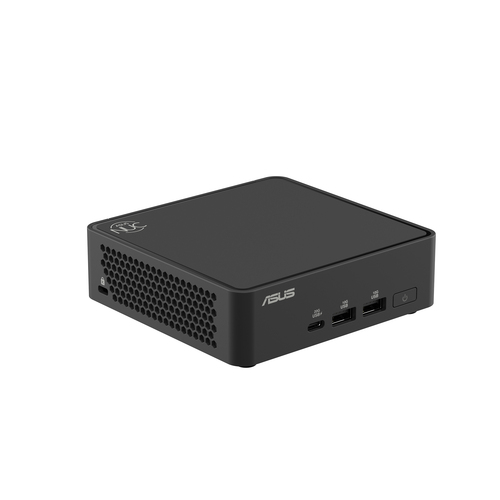

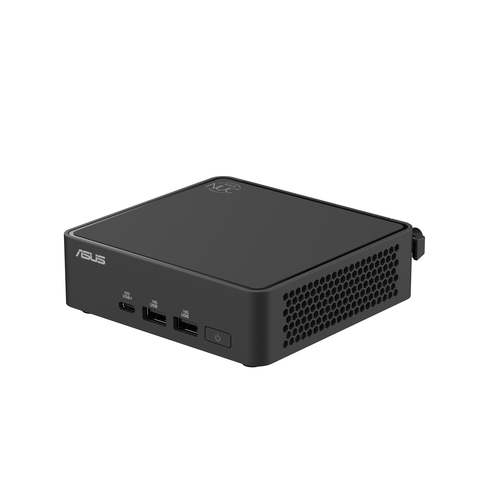

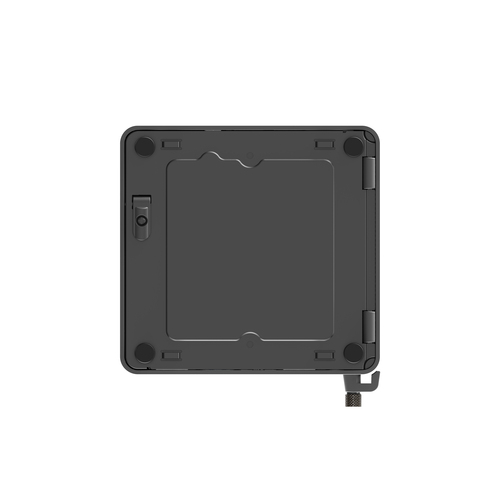

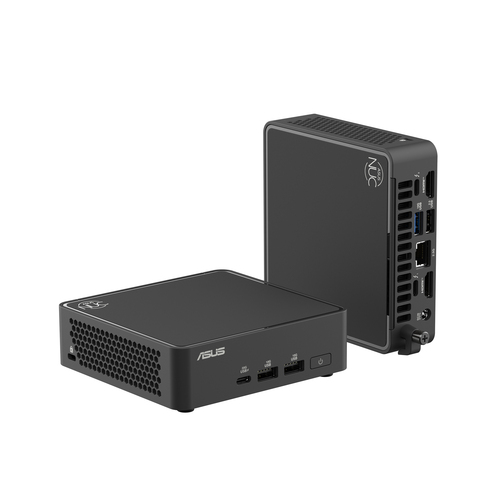

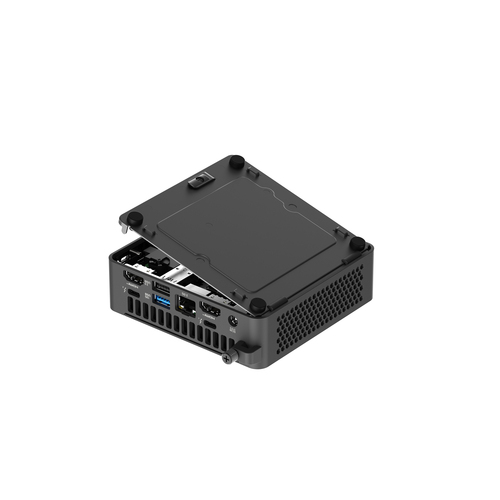

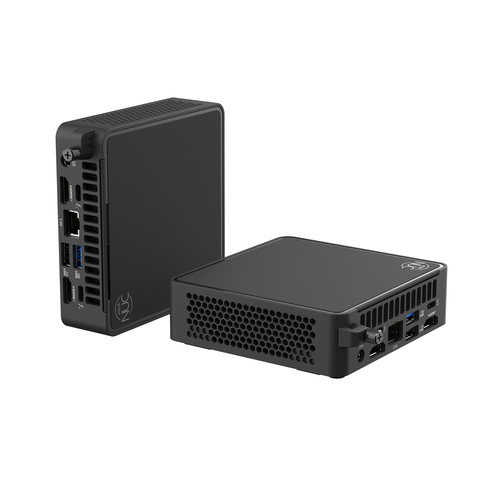

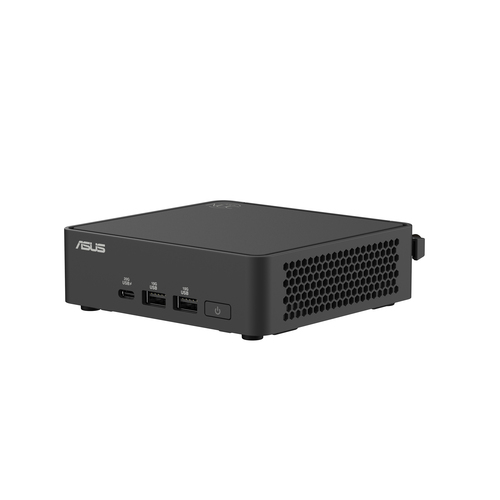

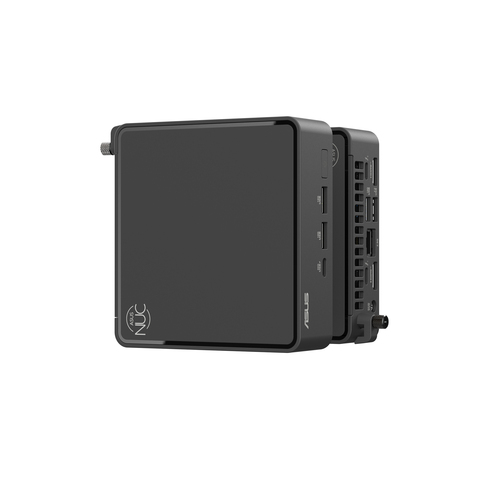

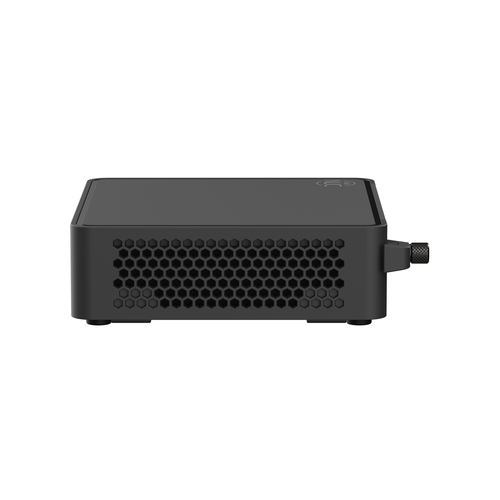

ASUS NUC RNUC15CRKU5063C2 Intel Core Ultra 5 225H 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Brand: Asus
Product Family: NUC
Product series: 15 Pro
Product code: 90AS00L1-M005L0
SKU: UJFC5T3VLSDXF
EAN/GTIN: 4711636406642

Windows 11 Pro 64-bit
Intel Core 5 225H (18MB Cache)
16GB DDR5-SDRAM (2 x 8) & 512GB SSD

€1351.56 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Intel Core 5 225H (18MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel Arc 130T, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

ASUS NUC RNUC15CRKU5063C2. Processor family: Intel Core Ultra 5, Processor model: 225H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 130T. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 500 g. Product colour: Black

ASUS NUC 15 Pro
Best Compact Choice for the AI-Driven Future.
Experience the future of computing with ASUS NUC 15 Pro – a sleek mini PC that’s perfect for office and edge computing. Powered by the latest Intel® Core™ Ultra processor with DDR5 6400MHz memory and Intel Arc™ graphics, ASUS NUC 15 Pro delivers unmatched speed and efficiency in a scratch-resistance matte texture chassis

Specifications

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra 5

Processor generation Intel Core (Series 2)

Processor model 225H

Processor cores 14

Processor threads 14

Processor boost frequency 4.9 GHz

Performance cores 4

Efficient cores 8

Low Power Efficient-cores 2

Performance-core Max Turbo Frequency 4.9 GHz

Efficient-core Max Turbo Frequency 4.3 GHz

Low Power Efficient-core Max Turbo Frequency 2.5 GHz

Performance-core base frequency 1.7 GHz

Efficient-core base frequency 1.3 GHz

Low Power Efficient-core Base Frequency 700 MHz

Processor cache 18 MB

Processor cache type Smart Cache

Processor base power 28 W

Maximum turbo power 115 W

Neural processor unit (NPU)

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU OpenVINO, Windows ML, DirectML, ONNX RT, WebNN

Total processor performance up to 83 TOPs

NPU performance up to 13 TOPs

GPU performance up to 63 TOPs

Memory

Internal memory 16 GB

Maximum internal memory 96 GB

Internal memory type DDR5-SDRAM

Memory layout (slots x size) 2 x 8 GB

Memory slots 2x SO-DIMM

Storage

Total storage capacity 512 GB

Storage media SSD

Optical drive type No

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Graphics

Discrete graphics card No

On-board graphics card Yes

Discrete graphics card model Not available

On-board GPU manufacturer Intel

On-board graphics card family Intel Arc Graphics

On-board graphics card model Intel Arc 130T

Network

Ethernet LAN Yes

Ethernet LAN data rates 2500 Mbit/s

LAN controller Intel I226-V

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

WLAN controller manufacturer Intel

WLAN controller model Intel Wi-Fi 7 BE202

Bluetooth Yes

Bluetooth version 5.4

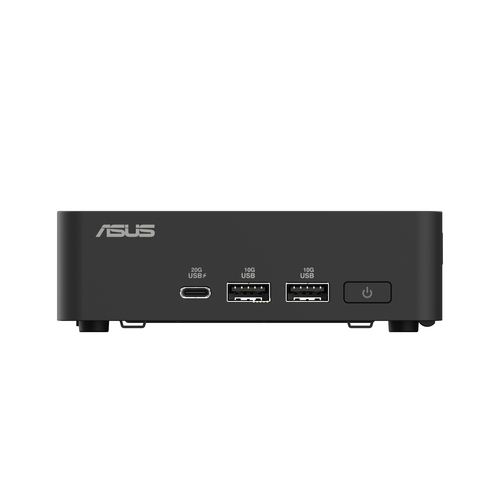

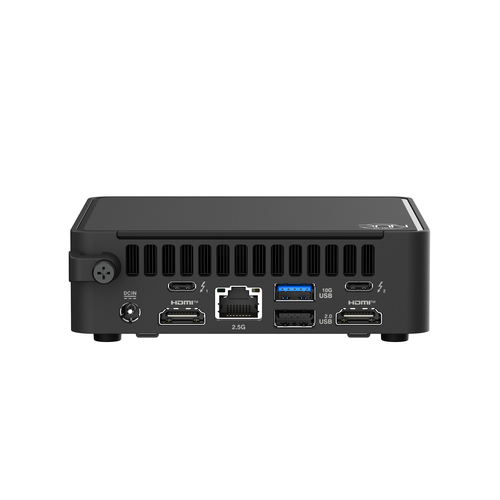

Ports & interfaces

USB 2.0 ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3

USB 3.2 Gen 2x2 Type-C ports quantity 1

Intel® Thunderbolt 4 Yes

Thunderbolt 4 ports quantity 2

HDMI ports quantity 2

HDMI version 2.1

Ethernet LAN (RJ-45) ports 1

DC-in jack Yes

Design

Chassis type Mini PC

Colour name Black

Placement supported Horizontal/Vertical

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Performance

Product type Mini PC

Software

Operating system architecture 64-bit

Operating system installed Windows 11 Pro

Weight & dimensions

Width 117 mm

Depth 112 mm

Height 37 mm

Weight 500 g

Display

Display included No
