ASUS NUC RNUC14LNKU5073H3

90AS00N1-M001S0 - 4711387930014

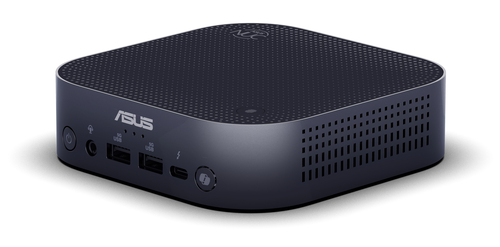

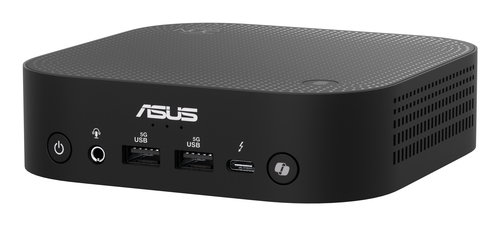

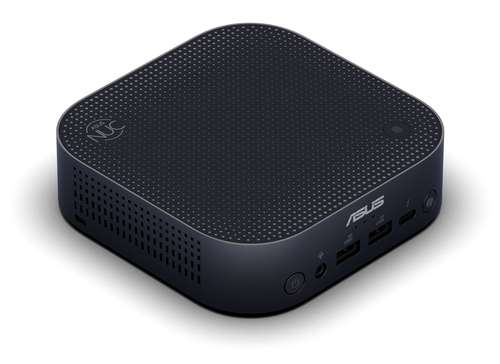

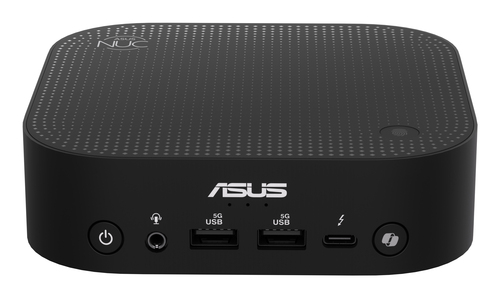

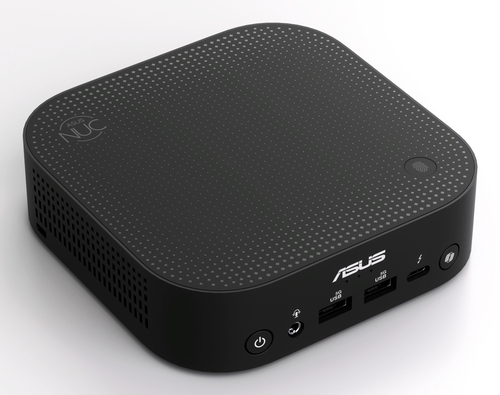

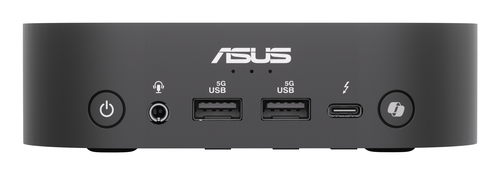

ASUS NUC RNUC14LNKU5073H3 Copilot+ PC Intel Core Ultra 5 226V 16 GB LPDDR5x-SDRAM 512 GB SSD Windows 11 Home Mini PC Black

Brand: Asus
Product Family: NUC
Product series: 14 Pro AI
Product code: 90AS00N1-M001S0
SKU: 7T60X699P3AQU
EAN/GTIN: 4711387930014

Windows 11 Home 64-bit
Intel Core Ultra 5 226V (8MB Cache)
16GB (8533MHz) LPDDR5x-SDRAM & 512GB SSD

€1054.67 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Intel Core Ultra 5 226V (8MB Cache), 16GB LPDDR5x-SDRAM, 512GB SSD, Intel Arc Graphics 130V, LAN, WLAN, Bluetooth, Windows 11 Home 64-bit

ASUS NUC RNUC14LNKU5073H3. Processor family: Intel Core Ultra 5, Processor model: 226V. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM, Memory clock speed: 8533 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Wi-Fi. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 500 g. Product colour: Black

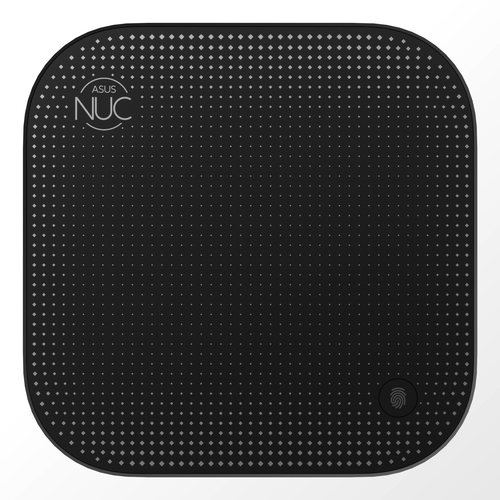

World’s first Mini PC Powered by the Intel® Core™ Ultra processor (Series 2, formerly ‘Lunar Lake’), featuring Copilot+, Bluetooth® 5.4, voice commands, and fingerprint recognition with Secure Boot for enhanced security.

Create, achieve, and stay secure with AI Innovation
The World’s First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact <0.6L design. it features Copilot+ button, Wi-Fi 7, Bluetooth 5.4, voice command, and fingerprint recognition with Secure Boot for enhanced security, plus effortless tool-free installation. This revolutionary device sets a new benchmark for mini PC innovation, providing unparalleled performance across business, entertainment, and industrial applications.

Specifications

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra 5

Processor generation Intel Core Ultra (Series 2)

Processor model 226V

Processor cores 8

Processor threads 8

Processor boost frequency 4.5 GHz

Performance cores 4

Low Power Efficient-cores 4

Performance-core Max Turbo Frequency 4.5 GHz

Low Power Efficient-core Max Turbo Frequency 3.5 GHz

Performance-core base frequency 2.1 GHz

Low Power Efficient-core Base Frequency 2100 MHz

Processor cache 8 MB

Processor cache type Smart Cache

Processor base power 17 W

Maximum turbo power 37 W

Neural processor unit (NPU)

Copilot+ PC Yes

Neural processor unit (NPU) Intel AI Boost

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to 97 TOPs

NPU performance up to 40 TOPs

GPU performance up to 53 TOPs

Memory

Internal memory 16 GB

Maximum internal memory 16 GB

Internal memory type LPDDR5x-SDRAM

Memory clock speed 8533 MHz

Memory channels Dual-channel

Storage

Total storage capacity 512 GB

Storage media SSD

Optical drive type No

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Graphics

Discrete graphics card No

On-board graphics card Yes

Discrete graphics card model Not available

On-board GPU manufacturer Intel

On-board graphics card family Intel Arc Graphics

On-board graphics card model Intel Arc Graphics 130V

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,1000,2500,100 Mbit/s

Cabling technology 10/100/1000Base-T(X)

LAN controller Intel I226-V

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

WLAN controller manufacturer Intel

WLAN controller model Intel Wi-Fi 7 BE201

Bluetooth Yes

Bluetooth version 5.4

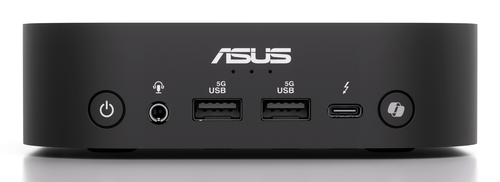

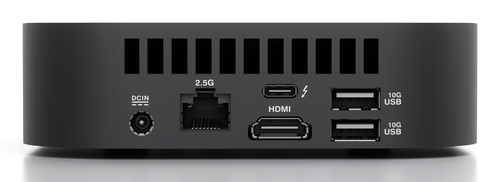

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

USB Type-C DisplayPort Alternate Mode Yes

Intel® Thunderbolt 4 Yes

Thunderbolt 4 ports quantity 2

HDMI ports quantity 1

HDMI version 2.1

Ethernet LAN (RJ-45) ports 1

Combo headphone/mic port Yes

DC-in jack Yes

Design

Chassis type Mini PC

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Copilot key Yes

Certified refurbished No

Performance

Audio chip Realtek ALC3288

Trusted Platform Module (TPM) Yes

Product type Mini PC

Software

Operating system architecture 64-bit

Operating system installed Windows 11 Home

Weight & dimensions

Width 130 mm

Depth 130 mm

Height 34 mm

Weight 500 g

Display

Display included No
