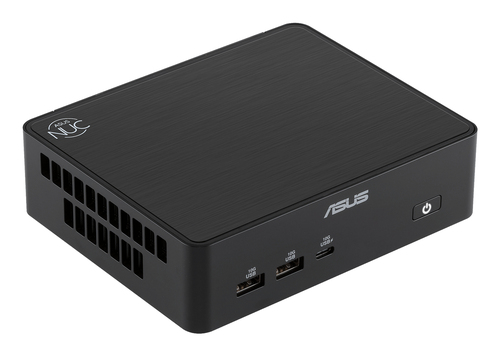

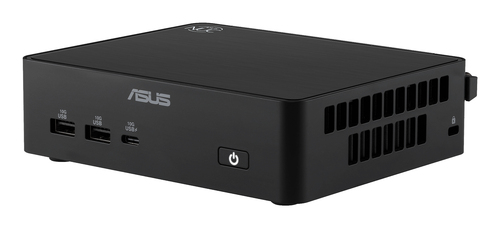

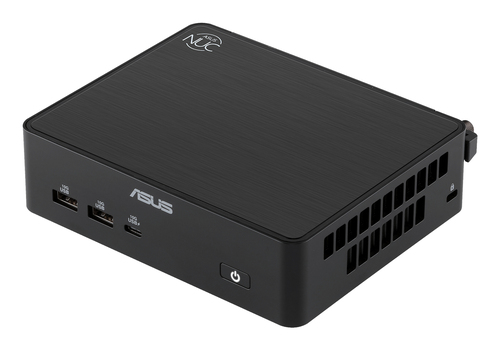

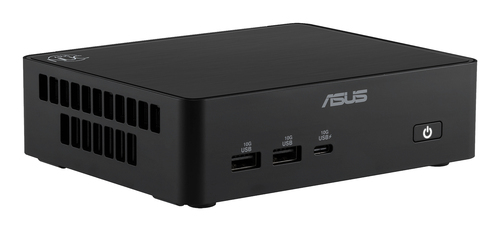

ASUS NUC 16 Pro RNUC16GDKV560002

90AR00W2-M000C0 - 4711636406703

ASUS NUC 16 Pro RNUC16GDKV560002 Black 335

Brand: Asus
Product Family: NUC 16 Pro
Product code: 90AR00W2-M000C0
SKU: C34SJSB064SOG
EAN/GTIN: 4711636406703

Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease

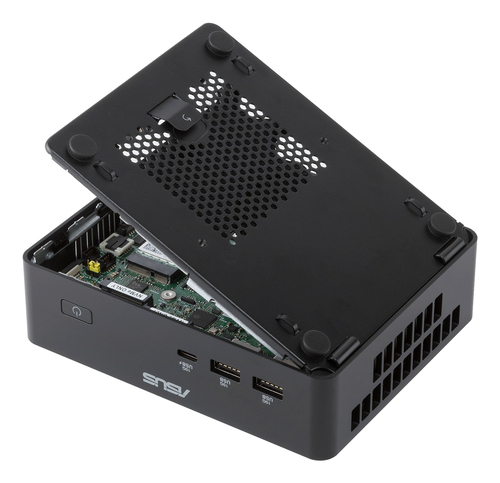

Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment

€821.13 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Intel Core Ultra 5 335 Processor, 2 x SO-DIMM, DDR5, WLAN, LAN

ASUS NUC 16 Pro RNUC16GDKV560002. Product type: Mini PC barebone. Number of memory slots: 2, Maximum internal memory: 128 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 8 TB. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 6.0. Cooling type: Active

Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	335
Processor cores	8
Processor threads	8
Processor boost frequency	4.8 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.6 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Built-in processor	Yes
Processor cache	18 MB
Memory
Internal memory installed	No
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	128 GB
Memory channels	Dual-channel
Storage
Storage drives installed	No
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express
Number of storage drives supported	2
Maximum storage capacity	8 TB
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® Graphics
Audio
Built-in speaker(s)	No
Network
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	6.0

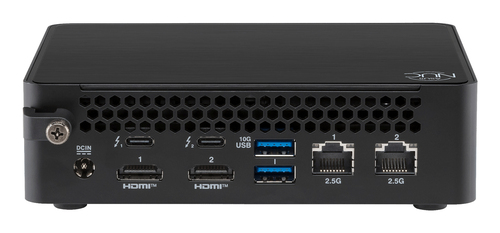

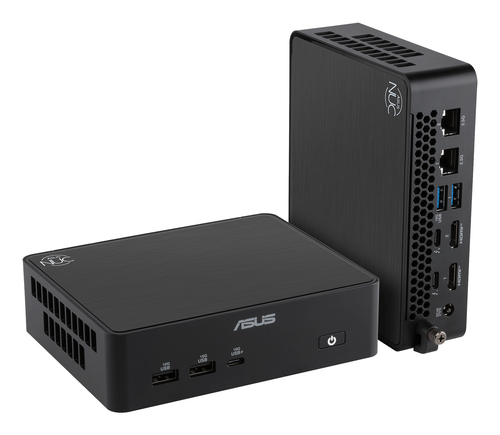

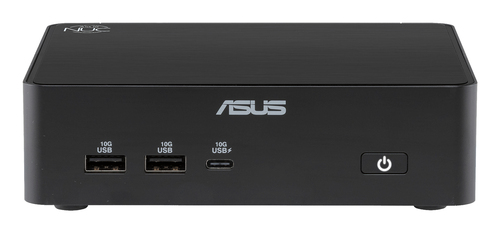

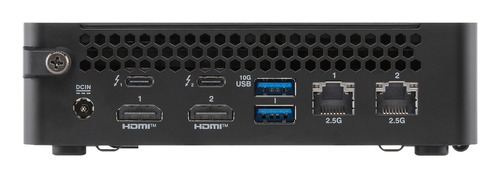

Ports & interfaces

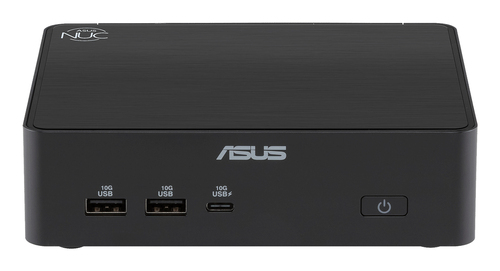

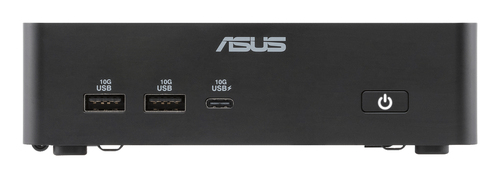

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
Thunderbolt 4 ports quantity	2
DC-in jack	Yes
Design
Product colour	Black
Cooling type	Active
On/off switch	Yes

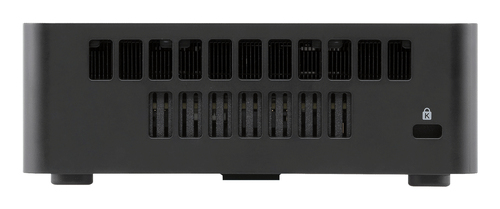

Cable lock slot	Yes
Cable lock slot type	Kensington

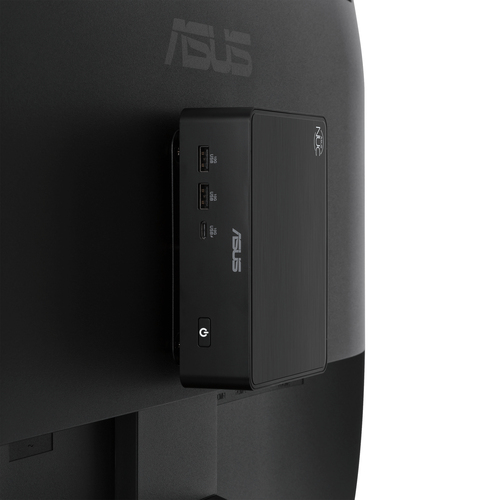

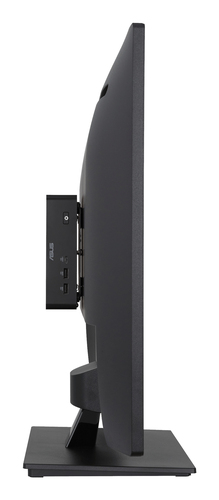

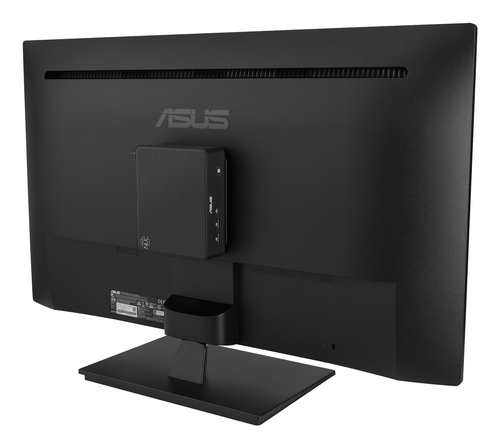

VESA mounting	Yes
Product type	Mini PC barebone
Performance
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Power
Power supply type	External AC adapter
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 92%
Weight & dimensions
Width	144 mm
Depth	117 mm
Height	42 mm
