ASUS ExpertCenter PN54-S1-S50083AL
90MS0391-M002L0

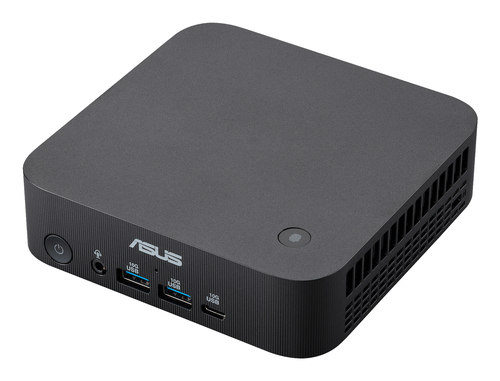

ASUS ExpertCenter PN54-S1-S50083AL AMD Ryzen™ 5 220 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
- Brand
- Asus
- Product Family
- ExpertCenter
- Product series
- PN54-S1
- Product code
- 90MS0391-M002L0
- SKU
- 20BW62NXLTNV4
- Powerful Multitasking: Featuring AMD Ryzen™ 200 Series Processors designed for powerful, efficient multitasking.
- Smart AI Acceleration: With up to 16 TOPS of built-in AI acceleration on the AMD Ryzen™ 7 260, enabling locally and efficiently run AI tasks such as enhanced visuals, voice recognition, and real-time translation.
- Immersive 4K Visuals: AMD Radeon™ 780M or 740M Graphics delivers breathtaking detail across up to four 4K displays.

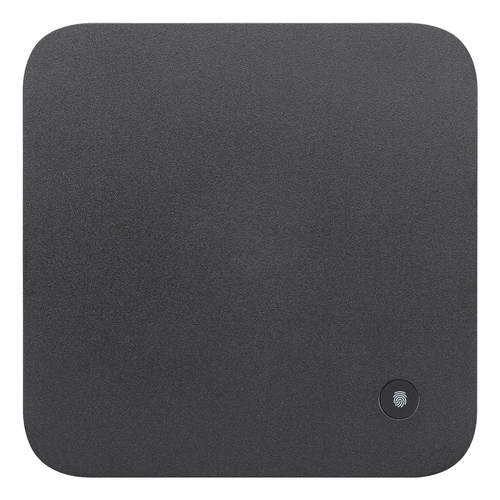

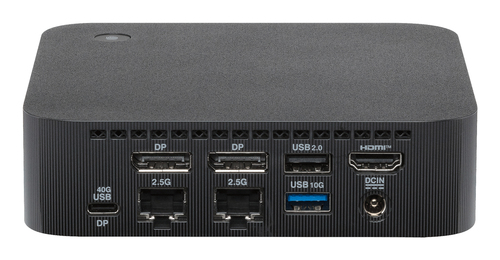

- Ultrafast and Versatile Connectivity: Enjoy ultrafast connectivity with Wi-Fi 7 and Bluetooth 5.4. Benefit from a versatile array of connectivity options, including six USB ports, dual 2.5G LANs, a fingerprint reader for Windows Hello, and built-in speakers and a microphone for voice command support.
- Effortless Upgrades: Tool-free design allows quick access and easy component upgrades without hassle.
- Slim, Durable Design: Housed in a sleek 34mm chassis built for 24/7 operation, combining compact form with eco-conscious durability and long-term reliability.
Product Info
Mini Desktop PC (AMD Ryzen 5 220 CPU, AMD Radeon 700M, 2x 8GB DDR5, 512GB G4 PCIe SSD, WiFi 7, Bluetooth 5.4, Windows 11 Pro)
ASUS ExpertCenter PN54-S1-S50083AL. Processor frequency: 3.2 GHz, Processor family: AMD Ryzen™ 5, Processor model: 220. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 740M. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
ASUS ExpertCenter PN54-S1 Mini PC
Trusted Performance, Energy Efficient
ASUS ExpertCenter PN54-S1 Mini PC strikes the perfect balance of performance and energy efficiency. Featuring AMD Ryzen™ 200 Series processors , it delivers robust performance with quad 4K display support, 6 USB ports, and Wi-Fi 7 for seamless everyday computing
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 200 Series |
| Processor model | 220 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.9 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache type | L2 & L3 |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 740M |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

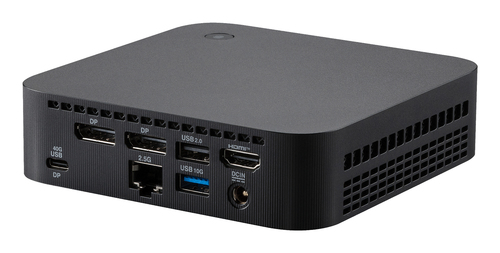

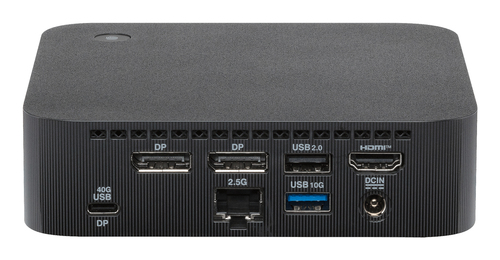

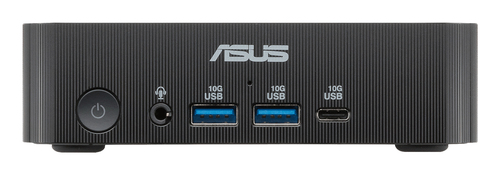

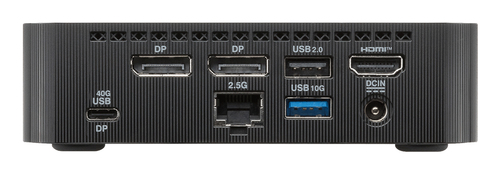

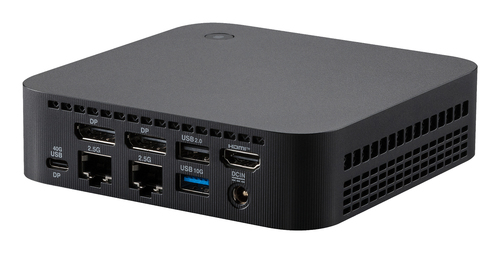

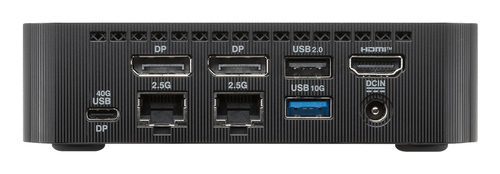

| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | Mini PC |
| Colour name | Black |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Audio chip | Realtek ALC3251 |
| Audio system | High Definition Audio |
| Product type | Mini PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 130 mm |
| Height | 34 mm |
| Weight | 550 g |
| Packaging data | |
| Package width | 189 mm |
| Package depth | 157 mm |
| Package height | 134 mm |
| Package weight | 1.48 kg |
| Display | |
| Display included | No |
