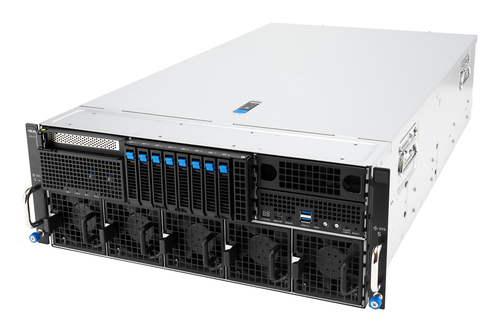

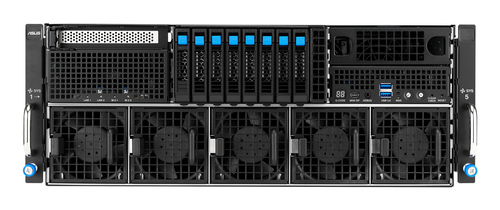

ASUS ESC8000A-E13P
ASUS ESC8000A-E13P LGA 6096 Rack (4U) Silver, Black
- Brand
- Asus
- Product code
- 90SF0404-M00ZR0
- SKU
- SO5OQD4NV84PA
- Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 6400 MHz DDR5 and support for a maximum TDP of up to 500 watts per socket
- Fully compatible with NVIDIA MGX architecture, enabling fast and large-scale deployment.
- High-density 4U server for eight dual-slot high-end NVIDIA H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, supporting up to 600 watts each
- Optimized server configuration, five PCI 5.0 slots for high-bandwidth PCIe NICs and DPU to enable performance scaling
- ASUS-exclusive toolless design empowers easy maintenance for maximum efficiency
- ASUS Control Center IT management software and hardware-level Root-of-Trust solution
€17578.25
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
AMD EPYC™ 9005 dual-processor 4U NVIDIA® MGX server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 24 DIMM, five PCIe® 5.0 slots and eight 2.5" NVMe
ASUS ESC8000A-E13P. Processor socket: LGA 6096, Processor manufacturer: AMD, Processor family: AMD EPYC. Supported memory types: DDR5-SDRAM, Supported DIMM module capacities: 16GB, 32GB, 64GB, 128GB, Maximum internal memory: 3 TB. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10000 Mbit/s, LAN controller: Intel X710-AT2. Chassis type: Rack (4U), Product colour: Silver, Black, Certification: BSMI, CB, CE, FCC(Class A), RCM
AMD EPYC™ 9005 dual-processor 4U NVIDIA® MGX server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 24 DIMM, five PCIe® 5.0 slots and eight 2.5" NVMe

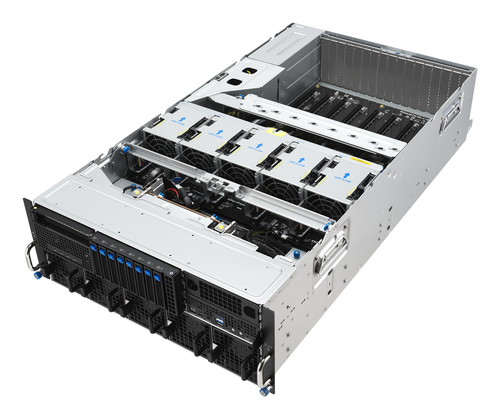

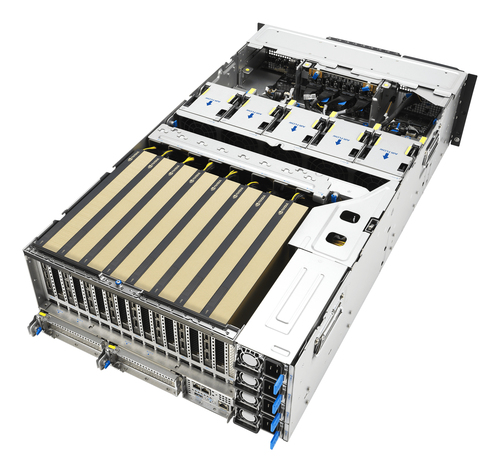

Eight dual-slot GPUs in a high-density 4U compute server
Powered by AMD EPYC™ 9005 processors, ESC8000A-E13P delivers exceptional performance, featuring top-tier GPUs, faster GPU interconnects, and higher-bandwidth fabric. This powerhouse server supports up to eight dual-slot GPUs, either active or passive, and offers flexible scalability with options for NVIDIA® NVLink® Bridge or AMD Infinity Fabric™ Link. This configuration allows seamless scaling and performance enhancement, making ESC8000A-E13P an ideal choice for tackling the most Enterprise AI and HPC tasks.
| Processor | |
|---|---|
| Built-in processor | No |
| Processor socket | LGA 6096 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Memory | |
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 3 TB |
| Supported RDIMM clock speeds | 6400,5600 MHz |
| Storage | |
| Number of storage drives supported | 10 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10000 Mbit/s |
| LAN controller | Intel X710-AT2 |

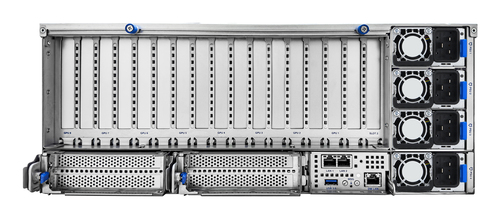

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Mini DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 14 |
| Number of M.2 (M) slots | 2 |
| Design | |
| Chassis type | Rack (4U) |
| Product colour | Silver, Black |
| LED indicators | Yes |
| Certification | BSMI, CB, CE, FCC(Class A), RCM |
| Power | |
| Power supply | 3200 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 4 |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 800 mm |
| Depth | 439.5 mm |
| Height | 1745 mm |
| Weight | 42 kg |
| Packaging data | |
| Package weight | 44.2 kg |
