ASUS Dual -RX9060-8G
90YV0NU0-M0NA00 - 4711636213813
ASUS Dual -RX9060-8G AMD Radeon RX 9060 8 GB GDDR6
- Brand
- Asus
- Product Family
- Dual
- Product code
- 90YV0NU0-M0NA00
- SKU
- XS6DZX0BIB2AT
- EAN/GTIN
- 4711636213813
- AMD Radeon RX 9060 8 GB GDDR6
- 7680 x 4320 pixels 128 bit 18 Gbit/s PCI Express 5.0
- HDMI ports quantity: 1 DisplayPorts quantity: 2
- OpenGL version: 4.6
- 1x 8-pin
Product Info
Dual Radeon RX 9060 8GB GDDR6
ASUS Dual -RX9060-8G. Graphics processor family: AMD, Graphics processor: Radeon RX 9060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Dual Radeon™ RX 9060

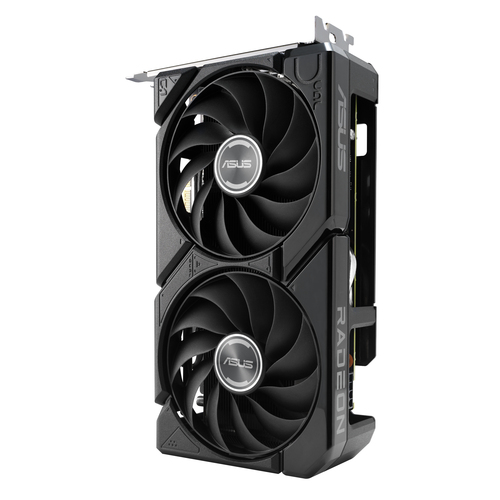

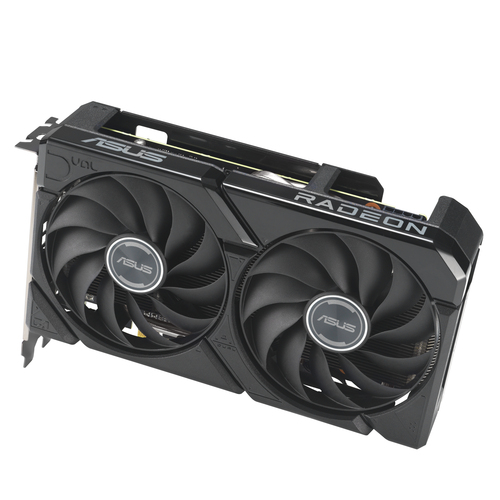

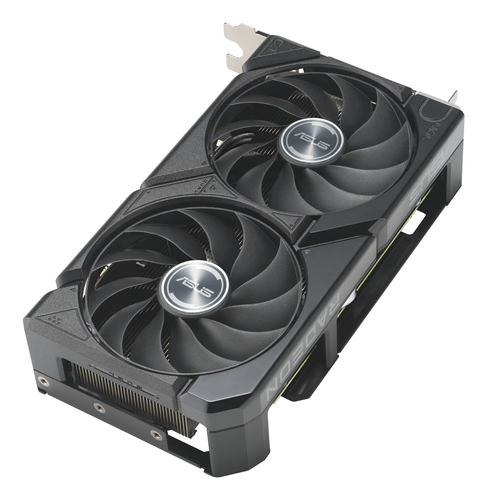

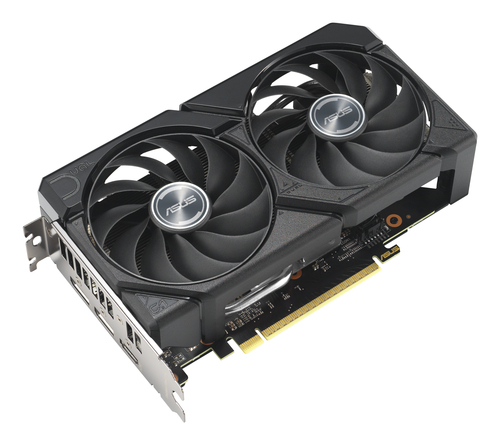

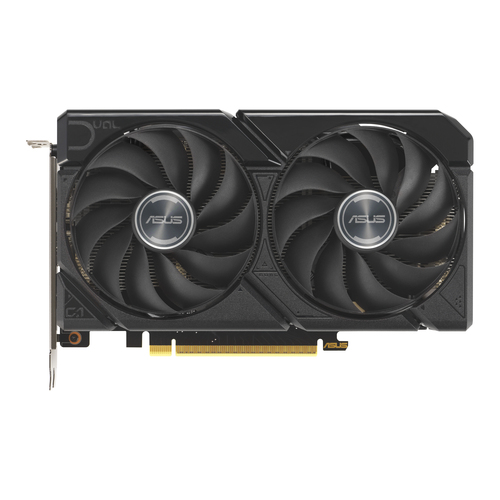

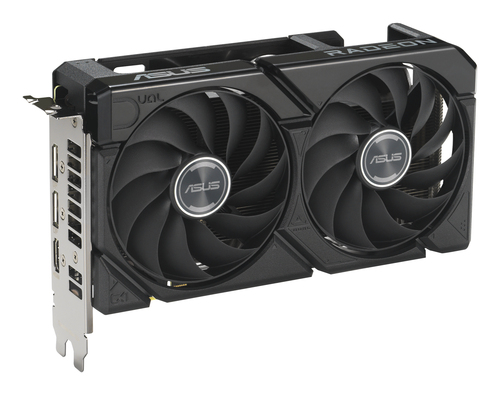

Dual Fans, Perfect Fit

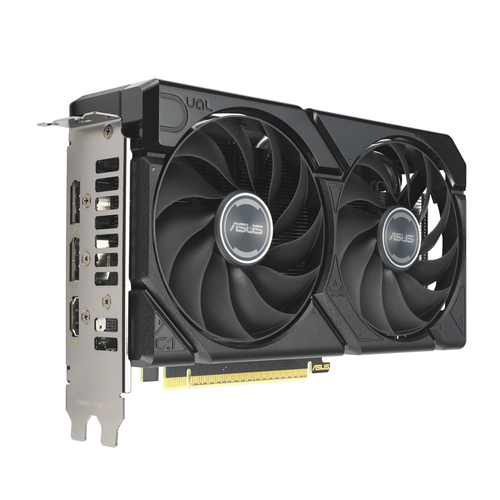

ASUS Dual Radeon™ RX 9060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling
2.5-slot Design

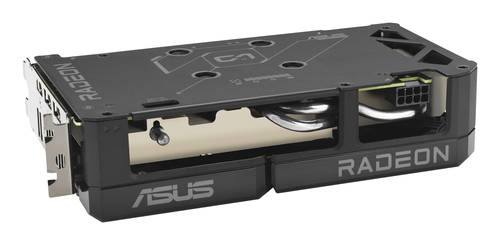

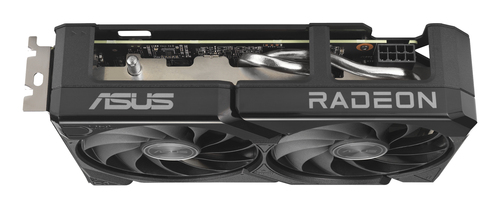

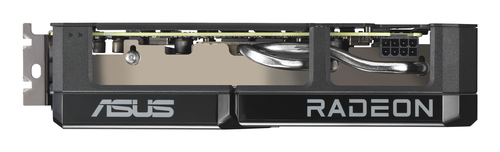

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades

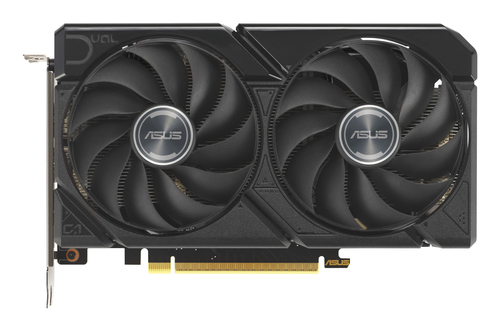

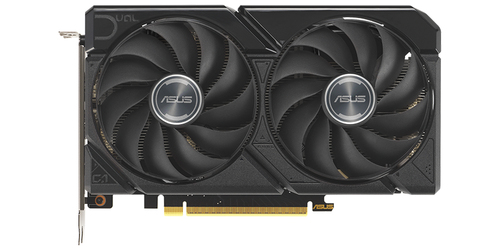

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
| Processor | |
|---|---|
| CUDA | No |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 |
| Processor boost clock speed | 2990 MHz |
| Processor boost clock speed (OC mode) | 3000 MHz |
| Processor boost clock speed (Gaming mode) | 2410 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Stream processors | 1792 |
| Maximum displays per videocard | 3 |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |
| Ports & interfaces | |
| Interface type | PCI Express 5.0 |

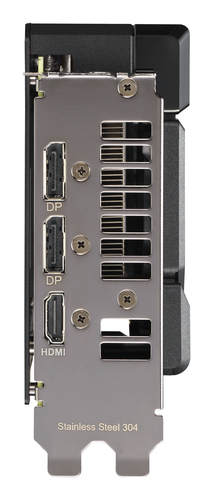

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| Performance | |
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| Design | |
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Number of slots | 2.5 |
| Product colour | Black |
| Power | |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Weight & dimensions | |
| Length | 202 mm |
| Depth | 49 mm |
| Height | 120 mm |
| Packaging content | |
| Manual | Yes |
