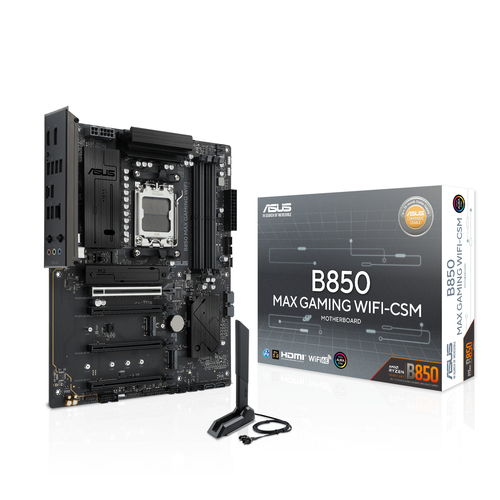

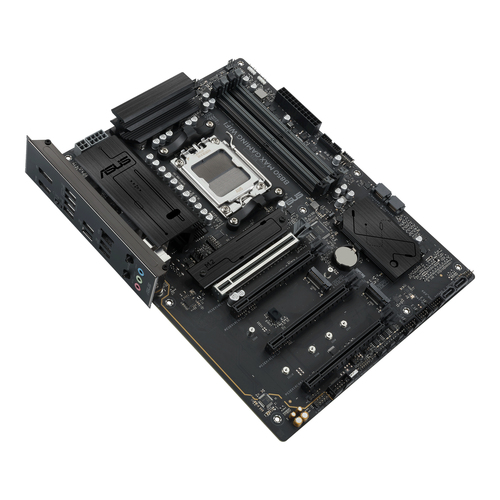

ASUS B850 MAX GAMING WIFI

90MB1PR0-M0EAY0 - 4711636465519

ASUS B850 MAX GAMING WIFI AMD B850 Socket AM5 ATX

Brand: Asus
Product code: 90MB1PR0-M0EAY0
SKU: RVIRZP70YOS3F
EAN/GTIN: 4711636465519

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD B850 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.4

€214.6 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

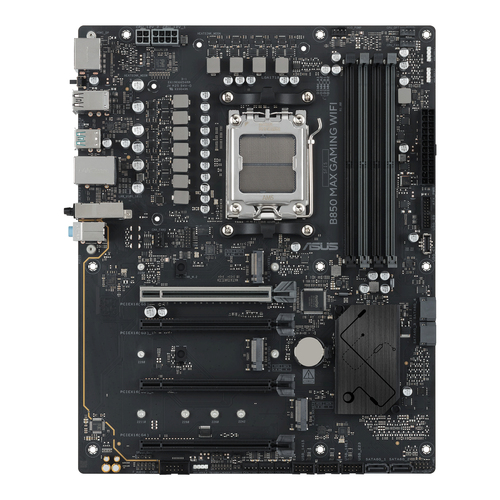

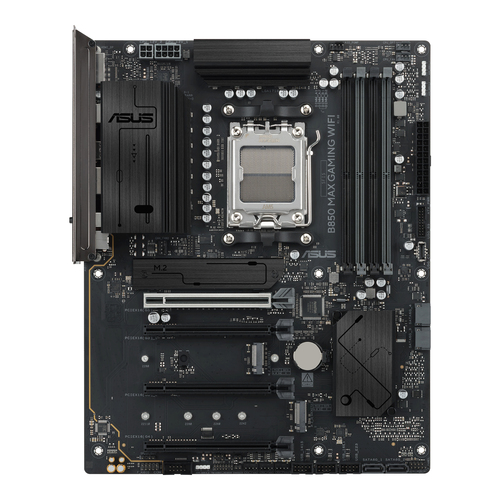

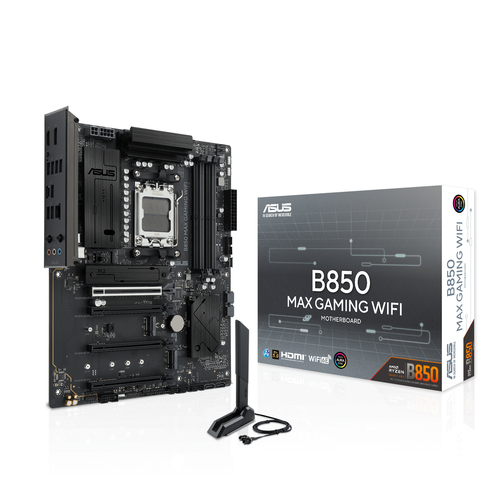

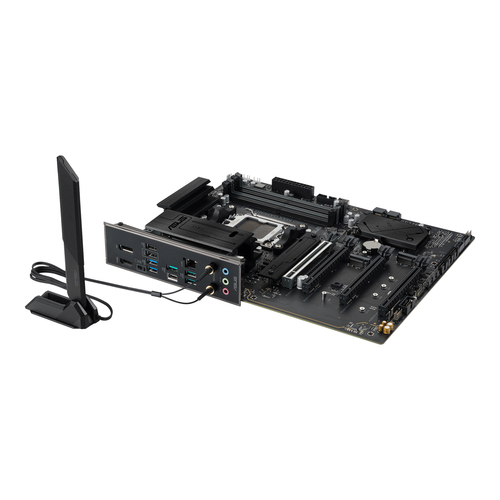

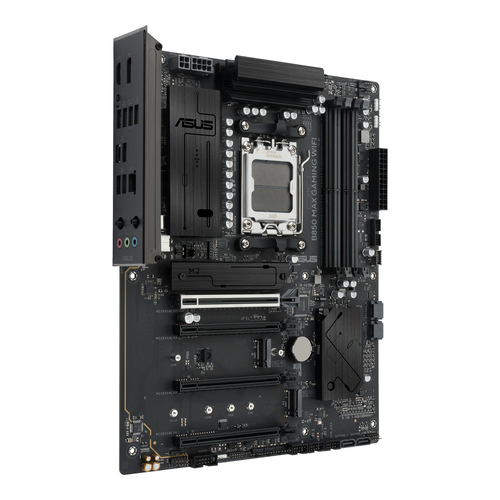

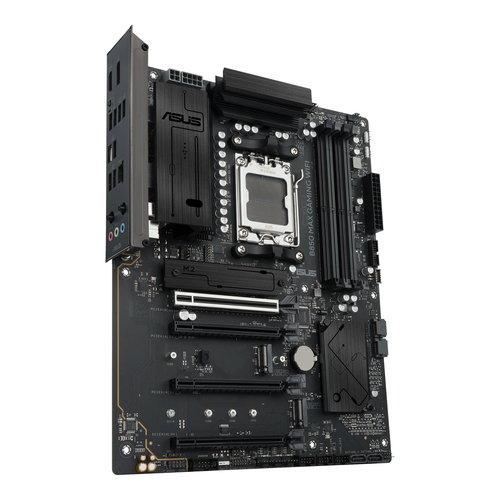

B850 MAX GAMING WIFI AMD B850 ATX motherboard (DDR5, PCIe 5.0 capable, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbit/s Type-A & Type-C, BIOS FlashBack, Aura Sync)

ASUS B850 MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax)

B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets Socket AM5

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 4

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility ECC & Non-ECC

Supported memory clock speed (max) 9000 MHz

Maximum internal memory 256 GB

Unbuffered memory Yes

Maximum internal memory per slot 64 GB

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 7

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Maximum resolution 7680 x 4320 pixels

Internal I/O

USB 2.0 connectors 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

Number of SATA III connectors 4

S/PDIF out connector Yes

Front panel audio connector Yes

Front panel connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of CPU fan connectors 1

Number of chassis fan connectors 4

Chassis intrusion connector Yes

Peripheral (Molex) power connectors (4-pin) 1

EPS power connector (8-pin) Yes

Number of EPS power connectors (8-pin) 1

Number of COM connectors 1

TPM connector Yes

Thunderbolt headers 1

12V power connector Yes

Number of water pump connectors 1

RGB LED pin header Yes

Number of RGB LED pin headers 3

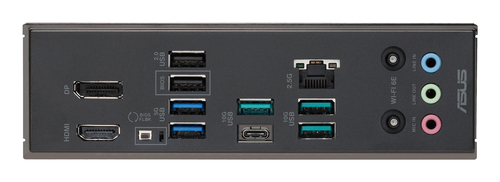

Rear panel I/O ports

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

HDMI version 2.1

DisplayPorts quantity 1

DisplayPort version 1.4

Headphone outputs 1

Line-in Yes

Microphone in Yes

WiFi-AP antenna jack 2

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 6E (802.11ax)

Wi-Fi standards Wi-Fi 6E (802.11ax)

Bluetooth Yes

Bluetooth version 5.4

Features

Motherboard chipset AMD B850

Audio output channels 7.1 channels

Product colour Black

Component for PC

Motherboard form factor ATX

Motherboard chipset family AMD

Cooling type Passive

Power source type ATX

Windows operating systems supported Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots 2

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Number of M.2 (M) slots 3

1st M.2 largest key size 2280

1st M.2 highest PCI Express generation 5.0

2nd M.2 largest key size 2280

2nd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 22110

3rd M.2 highest PCI Express generation 4.0

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

BIOS flashback button Yes

Packaging data

Package width 353 mm

Package depth 273 mm

Package height 68 mm

Package weight 1.26 kg

Weight & dimensions

Width 305 mm

Depth 244 mm

Height 48 mm

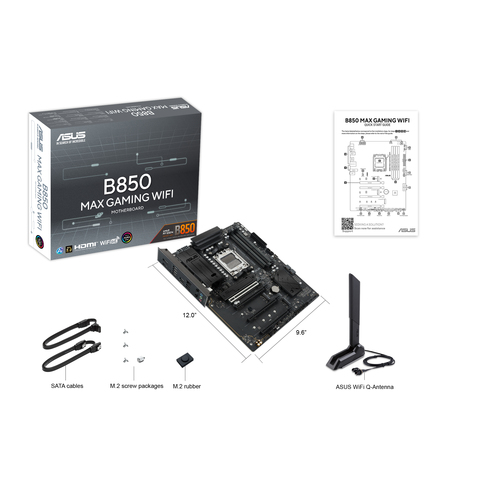

Packaging content

Cables included SATA

Antenna included Yes

Screws included Yes

Other features

Weight 1.05 kg
