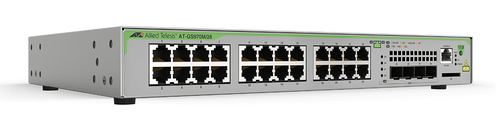

Allied Telesis AT-GS970M/28PS-30 network switch

AT-GS970M/28PS-30 - 767035211350

Allied Telesis AT-GS970M/28PS-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Brand: ALLIED TELESIS
Product code: AT-GS970M/28PS-30
SKU: BWWBFIYQ09FHF
EAN/GTIN: 767035211350

Managed L3
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24
10G support
MAC address table: 16000 entries Switching capacity: 56 Gbit/s
Access Control List (ACL)
Rack mounting
Power over Ethernet (PoE)

€655.3 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

L3 switch with 24 x 10/100/1000T PoE ports and 4 x 100/1000X SFP ports

Allied Telesis AT-GS970M/28PS-30. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3. Power over Ethernet (PoE). Rack mounting

The Allied Telesis CentreCOM® GS970M/24PS Layer 3 managed switch features twenty-four 10/100/1000T Gigabit Ethernet ports and four 100/1000X SFP ports for secure connectivity at the network edge.

Specifications

Management features

Switch type Managed

Switch layer L3

Quality of Service (QoS) support Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity 4

Network

Networking standards IEEE 802.2, IEEE 802.3

10G support Yes

Port mirroring Yes

Full duplex Yes

IP routing Yes

Flow control support Yes

Spanning tree protocol Yes

VLAN support Yes

Number of VLANs 2048

Data transmission

Switching capacity 56 Gbit/s

MAC address table 16000 entries

Latency (10-100 Mbps) 8.6 µs

Latency (1 Gbps) 4.3 µs

Jumbo frames support Yes

Packet buffer memory 1.5 MB

Security

DHCP features DHCP client

Access Control List (ACL) Yes

IGMP snooping Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

Multicast features

Multicast support Yes

Design

Rack mounting Yes

Product colour Grey

Performance

Internal memory 256 MB

Flash memory 64 MB

Noise level 33 dB

Power

AC input voltage 100 - 240 V

AC input frequency 50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 24

Total Power over Ethernet (PoE) budget 370 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -25 - 70 °C

Operating relative humidity (H-H) 5 - 90%

Storage relative humidity (H-H) 5 - 95%

Operating altitude 0 - 3000 m

Heat dissipation 127 BTU/h

Weight & dimensions

Width 440 mm

Depth 290 mm

Height 44 mm

Weight 4.7 kg

Packaging data

Package width 530 mm

Package depth 430 mm

Package height 150 mm

Package weight 6.35 kg

Logistics data

Country of origin China

Harmonized System (HS) code 85176990
