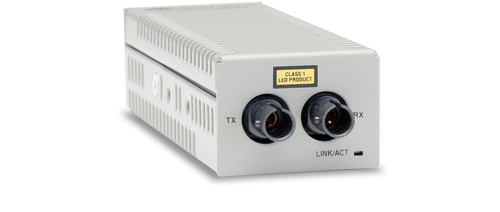

Allied Telesis AT-DMC100/ST-30 network media converter

AT-DMC100/ST-30 - 767035206660

Allied Telesis AT-DMC100/ST-30 network media converter Internal 100 Mbit/s 1310 nm Multi-mode Grey

Brand: ALLIED TELESIS
Product code: AT-DMC100/ST-30
SKU: ZKRG5EDC381JR
EAN/GTIN: 767035206660

Wired
100 Mbit/s 2000 m 1310 nm
Multi-mode ST 50/125,62.5/125 µm
Internal
Grey

€140.02 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Fast Ethernet to Fiber Desktop Media Converter with USB power, 100TX to 100FX, ST fiber connector

Allied Telesis AT-DMC100/ST-30. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. Product colour: Grey. Fiber optic connector: ST, Connectivity technology: Wired. Power consumption (typical): 1.5 W

This desktop media converter features 100TX to 100FX conversion with multi-mode ST fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Specifications

Network

Maximum data transfer rate 100 Mbit/s

Converter input interface 100Base-TX

Converter output interface 100Base-FX

Networking standards IEEE 802.1Q

Ethernet interface type Fast Ethernet

Data transfer rate 100 Mbit/s

Packet forwarding rate (10 Mbps) 14880 pps

Packet forwarding rate (100 Mbps) 148800 pps

Packet forwarding rate (1 Gbps) 1488000 pps

VLAN support Yes

Auto MDI/MDI-X Yes

Duplex system Full, Half

Performance

Maximum transfer distance 2000 m

Wavelength 1310 nm

Fiber mode structure Multi-mode

Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm

Tx power (min) -22.5 dBmW

Tx power (max) -14 dBmW

Rx power (min) -32 dBmW

Features

Internal Yes

LED indicators Yes

Product colour Grey

Ports & interfaces

Connectivity technology Wired

Fiber optic connector ST

Power

Power consumption (typical) 1.5 W

Weight & dimensions

Width 31.8 mm

Depth 91.4 mm

Height 21.6 mm

Weight 113 g

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 65 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%

Operating altitude 0 - 3048 m
