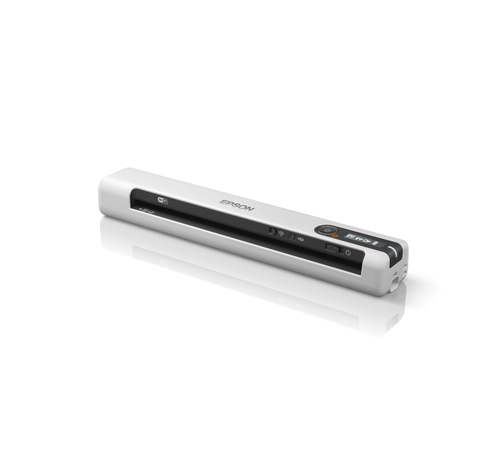

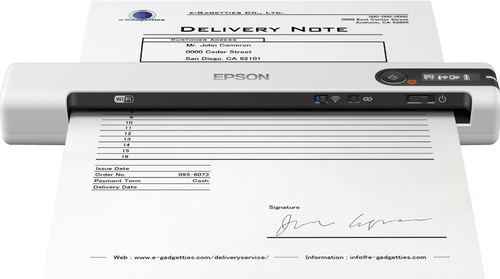

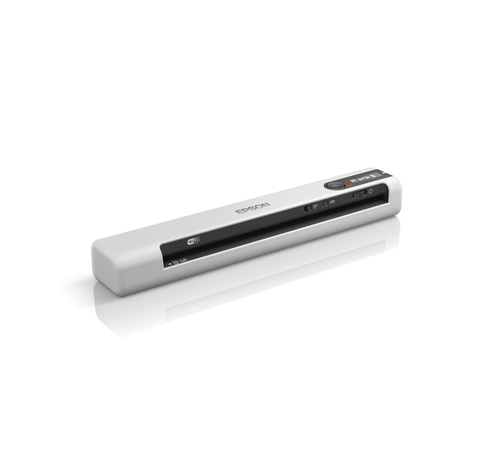

Epson WorkForce DS-80W

Epson WorkForce DS-80W Handheld scanner 600 x 600 DPI A4 White


Brand
Epson
Product Family
WorkForce
Product code
B11B253402BY
SKU
QZMB82E6IBEPV
  • Scan anywhere: Small, lightweight design
  • USB cable or integrated battery power: Scan up to 300 pages between battery charges
  • Fast scanning speeds: At up to four seconds per page (8.5ppm)
  • Simplify your workload: Continuous scanning with automatic feed mode
  • Includes a range of software: Document Capture Pro 2, Epson Scan 2.0 and TWAIN driver support
€161.29 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Epson WorkForce DS-80W. Maximum scan size: 216 x 1828 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 48 bit. Scanner type: Handheld scanner, Product colour: White, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 300 pages, Light source: ReadyScan LED. Auto document feeder (ADF) input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), Paper tray media weight: 35 - 270 g/m²

Scan anywhere

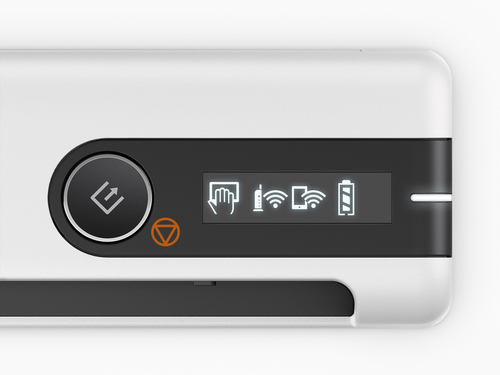

The DS-80W has built-in Wi-Fi and battery with an LCD Panel, providing true mobility to scan anywhere at speeds of just 4 seconds per page. When fully charged, scan up to 300 pages without the need for a power source. This makes it ideal for mobile workers who need to scan on the move or in areas with limited space.

Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents makes scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up scanning process, while the CIS sensor delivers instant scanning with no warm up time. The new LCD panel makes it easy to define job tasks when working remotely.

Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.

Scanning
Maximum scan size 216 x 1828 mm
Optical scanning resolution 600 x 600 DPI
Colour scanning Yes
Duplex scanning No
Input colour depth 48 bit
Output colour depth 24 bit
Input greyscale depth 16 bit
Output greyscale depth 8 bit
Output monochrome depth 8 bit
Scan speed (b/w, low res, A4) 4 sec/page
Scan speed (colour, low res, A4) 4 sec/page
Design
Scanner type Handheld scanner
Product colour White
Display LCD
Colour display No
Built-in display Yes
Performance
Sensor type CIS
Light source ReadyScan LED
Scan file formats BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max) 300 pages
Scan drivers TWAIN, WIA, SANE, ICA
Input capacity
Auto document feeder (ADF) input capacity 1 sheets
Paper handling
Scanning media types supported Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size A4
Paper tray media weight 35 - 270 g/m²
Auto Document Feeder (ADF) media weight 35 - 270 g/m²
Ports & interfaces
USB port Yes
USB version 2.0
Standard interfaces USB 2.0, Wireless LAN
Network
Wi-Fi Yes
Power
Power supply type USB
Weight & dimensions
Width 272 mm
Depth 47 mm
Height 34 mm
Weight 300 g
Packaging data
Quantity per pack 1 pc(s)
Package width 141 mm
Package depth 330 mm
Package height 67 mm
Package weight 597 g
Packaging content
Cables included USB
Bundled software Document Capture Pro 2.0, Epson Scan 2
System requirements
Compatible operating systems Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -25 - 60 °C
Operating relative humidity (H-H) 10 - 85%
Storage relative humidity (H-H) 10 - 90%
Other features
Output resolutions 600 dpi
Image formats supported BMP, JPEG, TIFF, PNG
Logistics data
Products per pallet 360 pc(s)
Country of origin China
Pallet gross weight 0 g
Master (outer) case length 360 mm
Master (outer) case height 320 mm
Master (outer) case width 350 mm
Master (outer) case gross weight 0 g
Pallet gross length 120 cm
Pallet gross width 80 cm
Pallet gross height 171 cm
Products per master (outer) case 10 pc(s)
Products per pallet layer 60 pc(s)
Products per pallet layer (UK) 60 pc(s)
Products per pallet (UK) 360 pc(s)
Pallet weight (UK) 0 g
Pallet length (UK) 120 cm
Pallet width (UK) 100 cm
Pallet height (UK) 171 cm
Master (outer) case GTIN (EAN/UPC) 8715946663005
Harmonized System (HS) code 84716070
