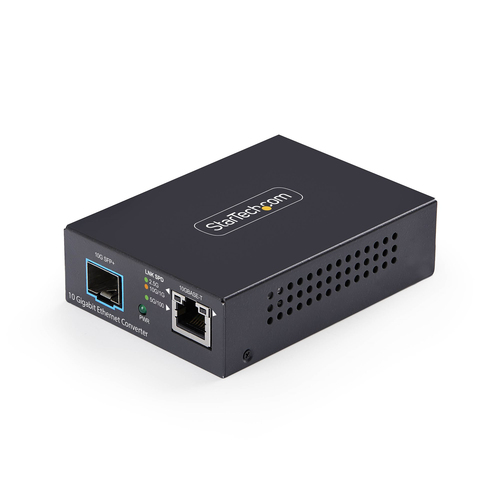

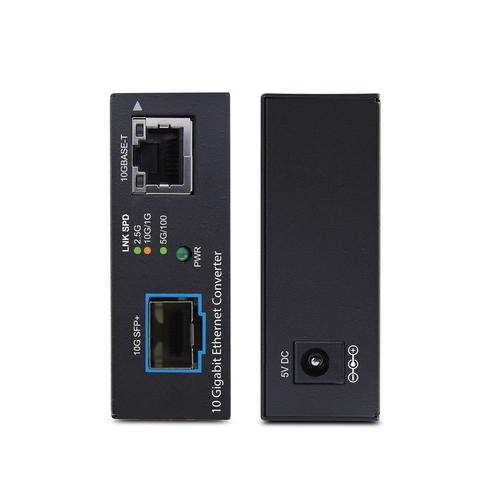

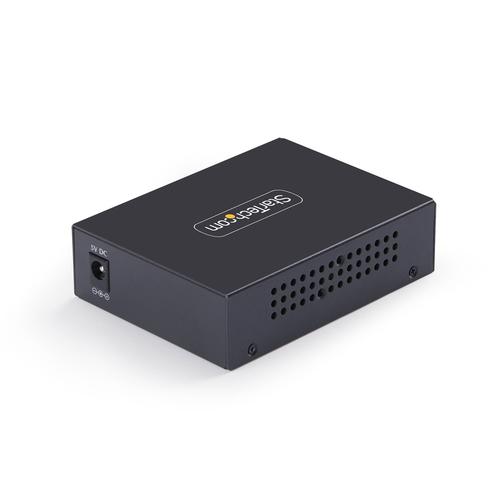

StarTech.com 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, 10G/5G/2.5G/1G/100M, Copper to 10GBASE-X SFP+, Single-Mode, Multi-Mode, 16K Jumbo Frames, TAA
- Brand
- STARTECH
- Product code
- MCM10G6SSFP
- SKU
- X63RWXHHBZAV7
- EAN/GTIN
- 0065030917094
- Upgrade Networks with Copper-to-Fiber Conversion: Convert 100M to 10GBASE-T copper (RJ-45) to 10G fiber using an open SFP+ slot; supports multimode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment and extended reach
- Install Anywhere with Flexible Mounting: Use as a compact standalone unit or mount to a wall, rack, DIN rail (use ADJDINKIT) or chassis (use MCM-CHASSIS-PSU) for clean, professional integration into structured wiring closets, data centers, or server rooms
- Reliable Performance Across Mixed Speeds:: Supports IEEE 802.3 standards, Jumbo Frames (up to 16K), full-duplex flow control, auto-negotiation, and auto MDI/MDI-X; Delivers plug-and-play setup and reduced packet loss across legacy and high-speed links
- Deploy Efficiently in Compact, Power-Sensitive Spaces: Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
- The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Product Info
Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.
Flexible, High-Speed Copper-to-Fiber Conversion
This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.
Versatile Mounting and Deployment

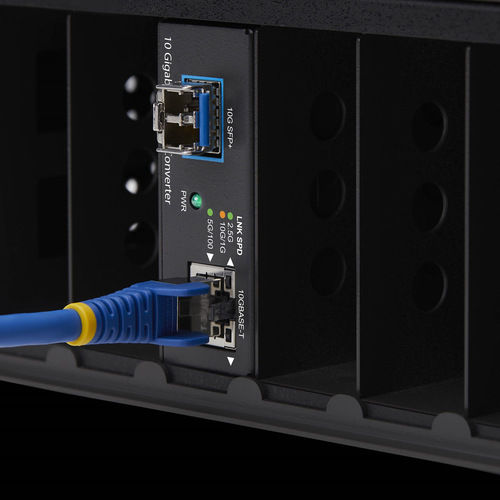

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.
Optimized for Mixed-Speed Networks
Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.
Efficient, Compact Design
With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.
| Network | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Converter input interface | 10GBase-T |
| Converter output interface | 10GBase-X |
| Networking standards | IEEE 802.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Features | |
| Internal | No |
| Plug and Play | Yes |
| LED indicators | Link, Power |
| Product colour | Black |
| Housing material | Metal |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP+ |
| DC-in jack | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 3.75 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |

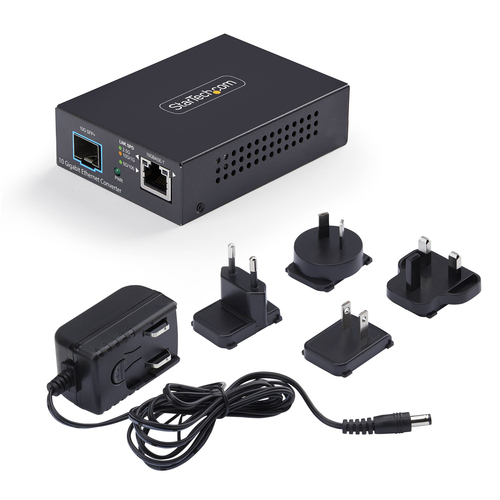

| AC adapter included | Yes |
| User guide | Yes |
| Packaging data | |
| Package width | 70 mm |
| Package depth | 94 mm |
| Package height | 26 mm |
| Package weight | 500 g |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 133 mm |
| Master (outer) case length | 281 mm |
| Master (outer) case height | 66 mm |
| Products per master (outer) case | 20 pc(s) |
