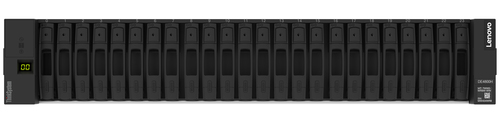

Lenovo ThinkSystem DE4800F 2U24 SFF disk array

7DCCA001EA

Lenovo ThinkSystem DE4800F 2U24 SFF disk array Rack (2U) Black

Brand: Lenovo
Product code: 7DCCA001EA
SKU: JBQOTLAYGP8U8

Small & Medium Business
Rack (2U) Black
Hot-swap drive bays
913 W

€28508.83 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

(128GB Cache) HICless Hybrid Flash Array 2U24 SFF

Lenovo ThinkSystem DE4800F 2U24 SFF. Chassis type: Rack (2U), Device class: Small & Medium Business. Number of storage drives supported: 24, Supported storage drive types: SSD, Supported storage drive interfaces: SAS, Storage drive sizes supported: 2.5". Width: 449 mm, Depth: 553 mm, Height: 85 mm, Weight: 25.1 kg. Product colour: Black

Lenovo ThinkSystem DE4800H and DE4800F are a scalable, hybrid and all flash mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The DE4800H and DE4800F deliver enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.

Specifications

Storage

Supported storage drive types SSD

Number of storage drives supported 24

Supported storage drive interfaces SAS

Storage drive sizes supported 2.5"

RAID levels 0, 1, 5, 6, 10

Data transfer rate 12 Gbit/s

Hot-swap drive bays Yes

Ports & interfaces

Host ports 12

Serial interface type RJ-45, USB C

RJ-45 ports quantity 1

Design

Device class Small & Medium Business

Chassis type Rack (2U)

Product colour Black

LED indicators Yes

Built-in display Yes

Performance

Maximum number of controllers supported 2

Cache size (max) 128 GB

Maximum number of hosts supported 512

Power

Power supply unit (PSU) capacity 913 W

Redundant power supply (RPS) support Yes

Hot-swap PSU Yes

AC input voltage 100 - 240 V

Weight & dimensions

Width 449 mm

Depth 553 mm

Height 85 mm

Weight 25.1 kg

Operational conditions

Operating temperature (T-T) 10 - 40 °C

Operating relative humidity (H-H) 8 - 90%

Storage temperature (T-T) -10 - 50 °C

Storage relative humidity (H-H) 10 - 90%

Operating altitude 0 - 3050 m
