Epson EB-W49 3800 ANSI lumens 3LCD WXGA (1280x800) White
- Brand
- Epson
- Product code
- V11H983040
- SKU
- 1RR3VUV1YPBVV
- EAN/GTIN
- 8715946680767
- HD-Ready bright images: 3LCD technology and equally high White and Colour Light Output
- Contrast ratio of 16,000:1: Deep, rich blacks and dense shadow areas
- Wide connectivity options: Network-enabled and wireless capable
- Low total cost of ownership: Lamp life up to 17,000 hours in Eco mode
- Versatile and flexible control: Project from different sources with HDMI input and mobile connectivity
Product Info
Flexible, HD-Ready WXGA display
With detailed WXGA resolution and the versatility to be positioned just about anywhere, this durable projector will provide years of service.
The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content on screen sizes up to 320 inches. 3,800-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 17,000 hours in Eco mode.
Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-W49 can be added to a company network or upgraded for wireless device access at a later stage (optional accessory required).
Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
| Projector | |
|---|---|
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 838.2 - 8128 mm (33 - 320") |
| Projector brightness | 3800 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2600 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.5 cm (0.59") |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 8000 h |
| Service life of light source (economic mode) | 17000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
| Lens system | |
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Aperture range (F-F) | 1.49 - 1.72 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.30 - 1.56:1 |
| Video | |
| Full HD | No |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |

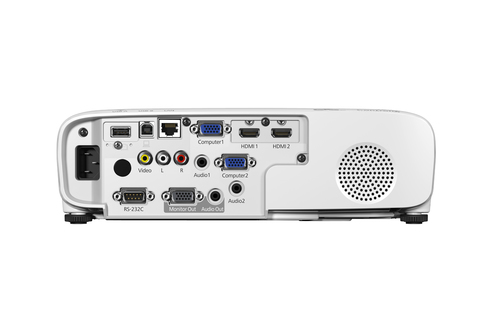

| Ports & interfaces | |
| HDMI connector type | Full-size |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Features | |
| Noise level (economic mode) | 28 dB |
| Noise level (standby) | 28 dB |
| Preset modes | Blackboard, Dynamic, Presentation, Theatre, sRGB |
| On Screen Display (OSD) | Yes |
| Noise level | 37 dB |
| Country of origin | Philippines |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Portable |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 327 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 225 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Software | |
| Software support | via: AMX, Crestron (Network), Control4, Extron |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 302 mm |
| Depth | 249 mm |
| Height | 87 mm |
| Weight | 2.7 kg |
| Package width | 350 mm |
| Package depth | 380 mm |
| Package height | 160 mm |
| Package weight | 4.01 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| WLAN adapter included | Yes |
| Bundled software | EasyMP Network Projection, Epson Projektor Management |
| Technical details | |
| USB display function | 3 in 1: Image / Mouse / Sound |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 78 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 78 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Other features | |
| Supported network protocols | PJLink |
