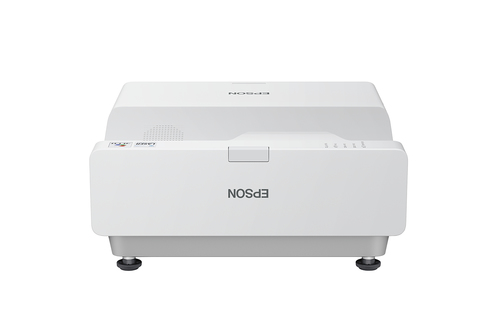

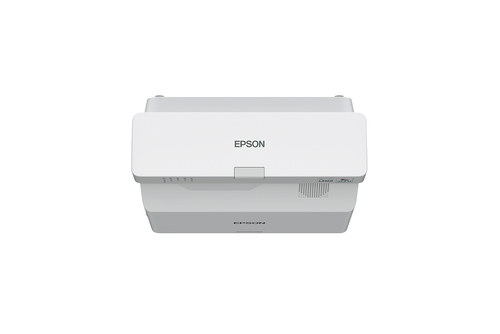

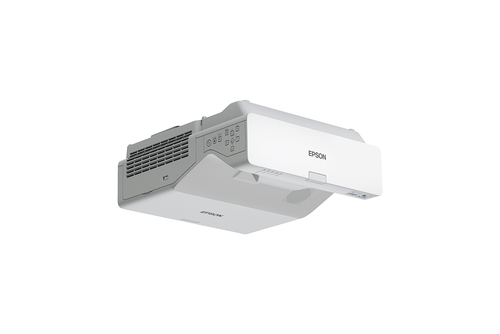

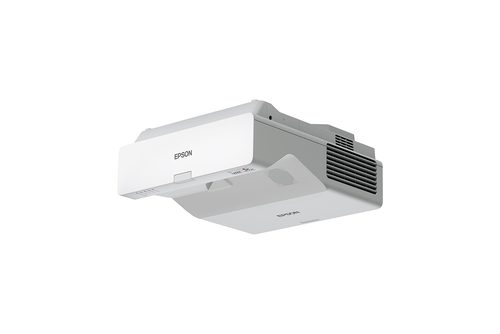

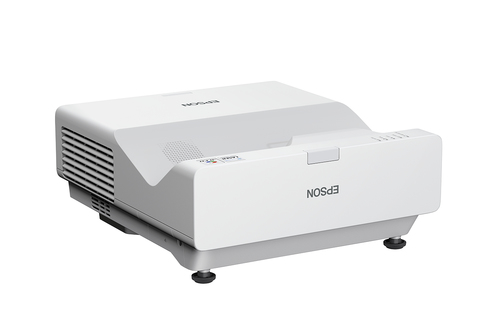

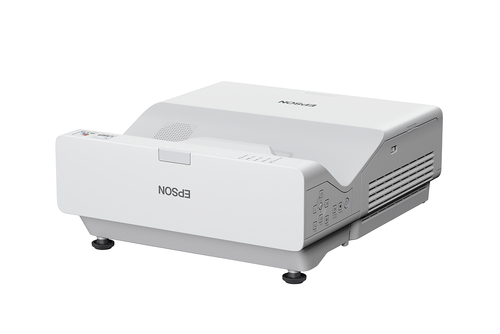

Epson EB-760Wi 4100 ANSI lumens 3LCD WXGA (1280x800) White
- Brand
- Epson
- Product code
- V11HA80080
- SKU
- U970TBO9FJE5H
- EAN/GTIN
- 8715946715261
- Interactive HD display for any room 53-100" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility Create and record a live, totally immersive lesson or presentation
Product Info
The EB-760Wi is a step up from the EB-760W, with added interactive features.
Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.

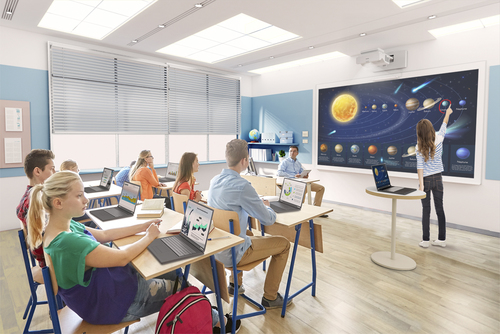

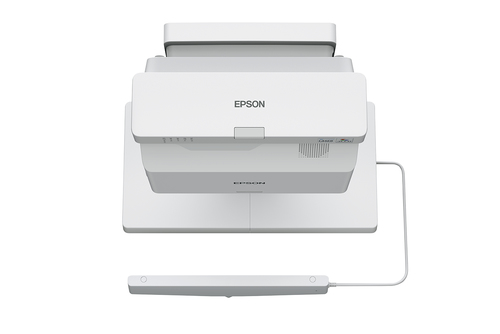

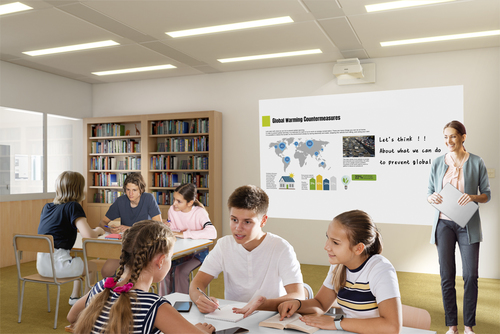

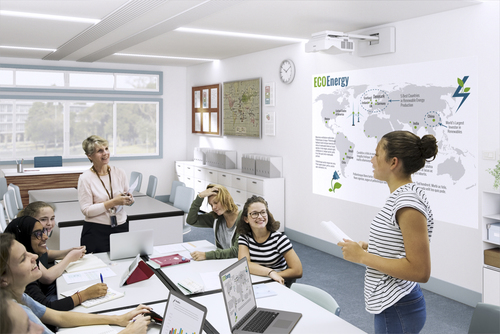

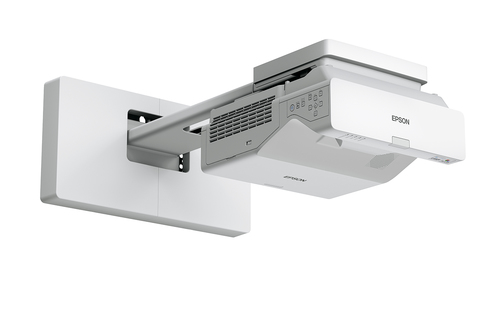

The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
| Projector | |
|---|---|
| Smart projector | No |
| Screen size compatibility | 1346.2 - 2540 mm (53 - 100") |
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2100 ANSI lumens |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix size | 1.5 cm (0.59") |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Focus | Manual |
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
| Video | |
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |

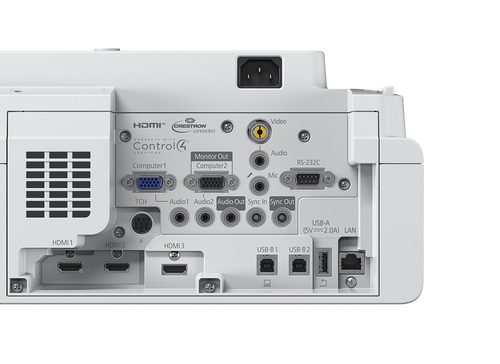

| Ports & interfaces | |
| Service port type | USB Type-B |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 3 |
| Composite video in | 1 |
| DVI port | No |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | Yes |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| Noise level | 37 dB |
| Air filter | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 197 W |
| Power consumption (economy mode) | 141 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | -10 - 90% |
| Weight & dimensions | |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Weight | 6 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, USB |
| Interactive pen included | Yes |
