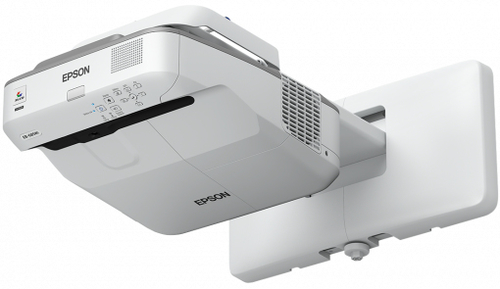

Epson EB-685W

Epson EB-685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White


Brand
Epson
Product code
V11H744041
SKU
DKOZJFTIKRYDG
EAN/GTIN
8715946605227
  • Ultra short throw projector Grey, White
  • 3LCD 3500 ANSI lumens
  • Lamp 5000 h
  • WXGA (1280x800) 16:10 300:1
  • Screen size compatibility: 1524 - 2540 mm (60 - 100") Number of colours: 1.073 billion colours
  • Focus: Manual Zoom capability
  • Ethernet LAN
  • Built-in speaker(s) 16 W
  • AC 354 W
€1221.54 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Epson EB-685W. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 0 - 3.76 mm, Zoom ratio: 1.35:1. Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232, USB connector type: USB Type-A, USB Type-B

HD-ready classroom projector

Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.

The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.

High-quality, bright images

Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.

Enhanced learning

Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.

Document camera compatibility

Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.

Keep costs down

Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

-Optional wireless capability

Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.

Projector
Supported aspect ratios 16:10
Screen size compatibility 1524 - 2540 mm (60 - 100")
Projection distance 0.4 - 0.6 m
Projection distance (wide) 0 - 0.4 m
Projection distance (tele) 0 - 0.6 m
Contrast ratio (dynamic) 14000:1
Projector brightness 3500 ANSI lumens
Projection technology 3LCD
Projector native resolution WXGA (1280x800)
Contrast ratio (typical) 300:1
Native aspect ratio 16:10
Number of colours 1.073 billion colours
Projector brightness (economic mode) 2900 ANSI lumens
Keystone correction, horizontal ±3°
Keystone correction, vertical ±3°
Matrix size 1.5 cm (0.59")
Light source
Light source type Lamp
Service life of light source 5000 h
Service life of light source (economic mode) 10000 h
Lamp power 250 W
Lens system
Focus Manual
Focal length range 0 - 3.76 mm
Zoom capability Yes
Zoom ratio 1.35:1
Digital zoom 1.35x
Video
Full HD No
HD-Ready Yes
3D No
Video processing 10 bit
Colour modes (2D) Cinema, Dynamic
Video colour modes Blackboard, Cinema, Dynamic, Presentation, sRGB
Ports & interfaces
USB 2.0 ports quantity 2
Audio (L/R) in 1
Headphone outputs 1
Microphone in Yes
Serial interface type RS-232
VGA (D-Sub) ports quantity 3
HDMI ports quantity 3
USB connector type USB Type-A, USB Type-B
Composite video in 1
DVI port No
Mobile High-Definition Link (MHL) Yes
AC (power) in Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100 Mbit/s
Storage
Card reader integrated No
Features
Noise level (economic mode) 28 dB
On Screen Display (OSD) Yes
Noise level 35 dB
Air filter Yes
Country of origin Philippines
Password protection Yes
Multimedia
Built-in speaker(s) Yes
RMS rated power 16 W
Number of built-in speakers 1
Design
Product type Ultra short throw projector
Product colour Grey, White
Placement Wall
Cable lock slot Yes
Cable lock slot type Kensington
Display
Built-in display No
Power
Power source AC
Power consumption (typical) 354 W
Power consumption (standby) 0.39 W
Power consumption (PowerSave) 310 W
AC input voltage 220 - 240 V
AC input frequency 50 - 60 Hz
Software
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 367 mm
Depth 400 mm
Height 149 mm
Weight 5.7 kg
Package width 490 mm
Package depth 730 mm
Package height 335 mm
Package weight 18.5 kg
Packaging content
Remote control included Yes
Remote control type IR
Batteries included Yes
Cables included USB
Manual Yes
Bundled software EasyMP Monitor, EasyMP Multi PC Projection
Logistics data
Quantity per pack 1 pc(s)
Products per pallet 12 pc(s)
Pallet gross length 120 cm
Pallet gross width 80 cm
Pallet gross height 141 cm
Products per pallet layer 2 pc(s)
Products per pallet layer (UK) 2 pc(s)
Products per pallet (UK) 12 pc(s)
Pallet length (UK) 120 cm
Pallet width (UK) 100 cm
Pallet height (UK) 141 cm
Other features
RS-232 ports 1
