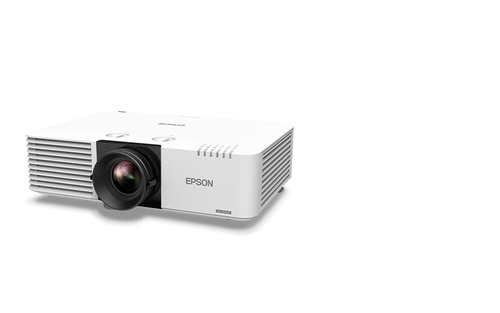

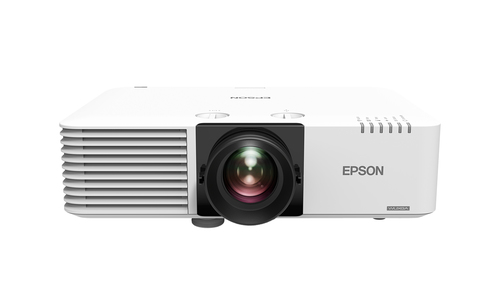

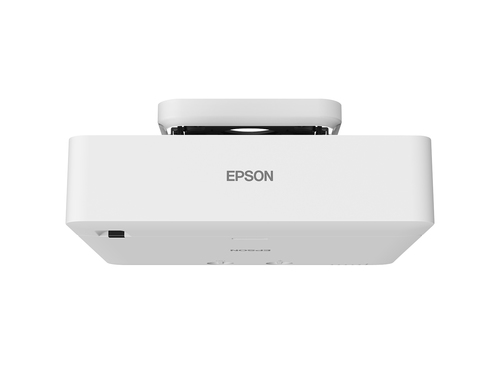

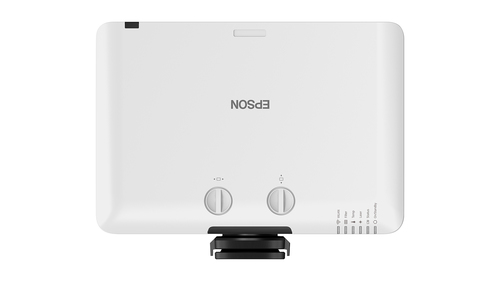

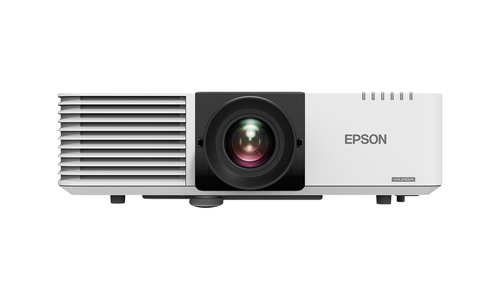

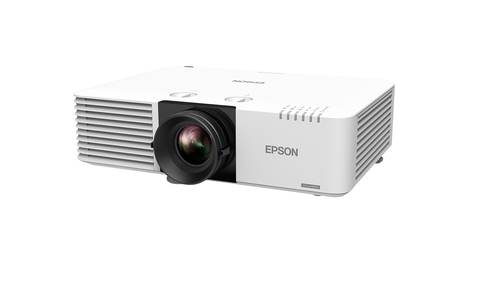

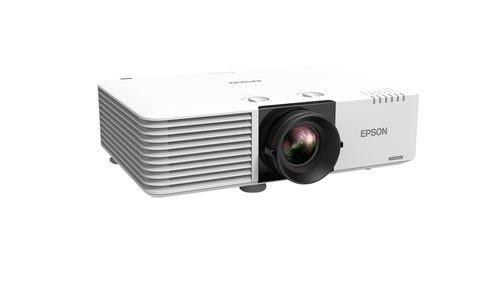

Epson EB-L530U Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White
- Brand
- Epson
- Product code
- V11HA27040
- SKU
- S1YTBCLO3CILN
- EAN/GTIN
- 8715946695334
- 5,200-lumen brightness: Crisp images and bright colours, even in well-lit rooms
- WUXGA resolution: Sharp Full HD images for excellent clarity
- Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
- Easy, flexible installation: Lightweight and compact design with wide lens shift
- Support social distancing: Scalable display size of up to 500 inches
Product Info
As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers even more effective, practical and creative display applications across a number of different industries.
Bright, cost-effective display solutions

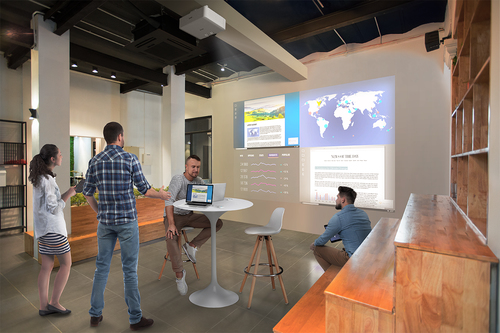

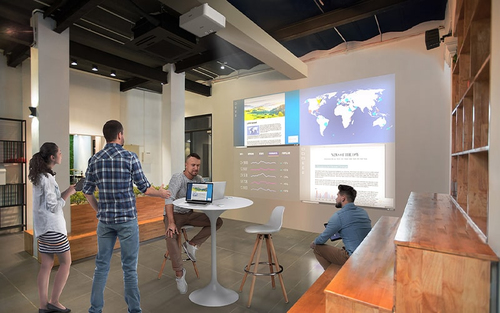

Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L530U offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L530U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
| Projector | |
|---|---|
| Smart projector | No |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Projection distance | 1.44 - 23.84 m |
| Projection distance (wide) | 1.4 - 14.8 m |
| Projection distance (tele) | 2.4 - 23.8 m |
| Projector brightness | 5200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3640 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.7 cm (0.67") |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Focus | Manual |
| Focal length range | 20 - 31.8 mm |
| Aperture range (F-F) | 1.5 - 1.7 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.35 - 2.2:1 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 50% |
| Video | |
| Full HD | Yes |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection |

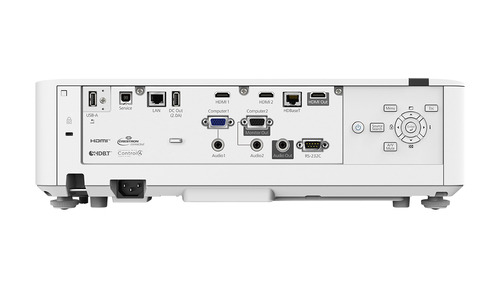

| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Miracast | Yes |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| Noise level (economic mode) | 23 dB |
| HDCP | Yes |
| Noise level | 31 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Product colour | White |

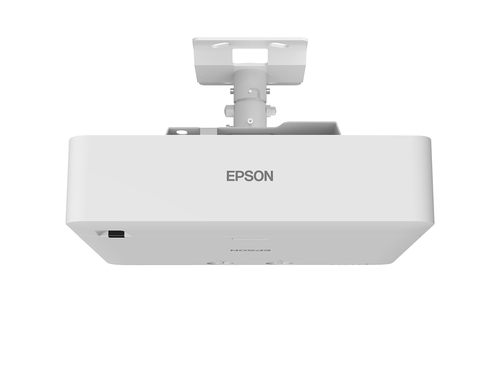

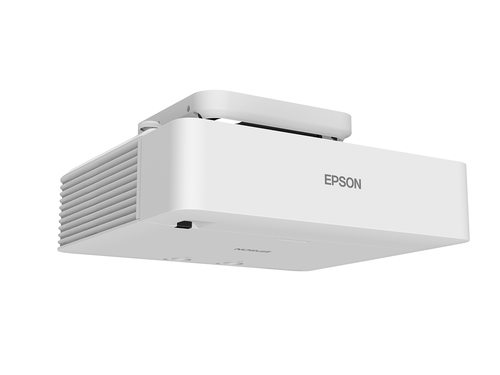

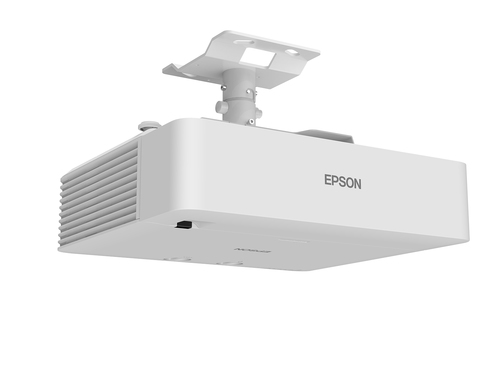

| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 293 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 223 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Software | |
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 339 mm |
| Height | 136 mm |
| Weight | 8.2 kg |
| Package width | 540 mm |
| Package depth | 565 mm |
| Package height | 210 mm |
| Package weight | 12 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Warranty card | Yes |
| WLAN adapter included | Yes |
| Technical details | |
| Sustainability certificates | TCO |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 14 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 14 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Other features | |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
