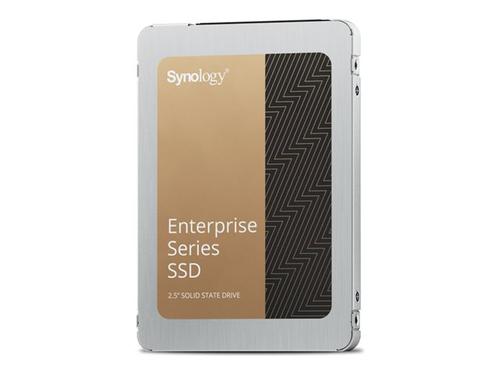

Synology SAT5221-960G - SSD - Enterprise - 960 GB - SATA 6Gb/s
- Brand
- Synology
- Product code
- SAT5221-960G
- SKU
- R4WNF80NCJN6A
- EAN/GTIN
- 4711174726158
- SSD
- Enterprise
- 960 GB
- internal
- 2.5"
- SATA 6Gb/s
- Weight: 0.08 KG
Product Info
The Synology SAT5221-960G is designed to meet the demands of enterprise environments, offering reliable and efficient performance. With a capacity of 960 GB, this solid state drive delivers internal data rates of up to 500 MBps, facilitating smooth data access and transfer. Its power loss protection feature ensures data integrity against unexpected shutdowns.
Built for 24x7 operation, the SAT5221-960G supports high workloads with a maximum of 90,000 IOPS for 4KB random reads and up to 30,000 IOPS for 4KB random writes. The drive maintains a mean time between failures (MTBF) of 1,500,000 hours, highlighting its reliability for persistent usage. Its operating temperature range from 0°C to 70°C and storage temperature range of -40°C to 85°C ensures robust performance in various environments.
Description
Reliable data integrity
The Power Loss Protection (PLP) feature ensures that data is safeguarded in the event of sudden power loss, allowing users to work confidently knowing their data is secure.
High performance capabilities
With a maximum random read speed of 90,000 IOPS and random write speed of 30,000 IOPS, this drive efficiently handles intensive data tasks.
Durable temperature tolerance
With an operating temperature range from 0°C to 70°C and storage temperature range from -40°C to 85°C, this drive performs reliably in various environmental conditions.
Long-lasting reliability
Featuring a mean time between failures (MTBF) of 1,500,000 hours, this drive is engineered for extended use, making it suitable for demanding enterprise environments.
| General | |
|---|---|
| Form Factor | 2.5" |
| Height | 7 mm |
| Depth | 100 mm |
| Capacity | 960 GB |
| Width | 69.85 mm |
| Device Type | Solid state drive - internal |
| Interface | SATA 6Gb/s |
| Features | Power Loss Protection (PLP), End-to-end data protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, EAC, BSMI, VCCI, KC, UKCA, RoHS, WEEE, ESD |
| Power | |
| Power Consumption | 2.3 Watt (read)3.2 Watt (write)1.3 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Performance | |
| Drive Class | Enterprise |
| Maximum 4KB Random Write | 30000 IOPS |
| Maximum 4KB Random Read | 90000 IOPS |
| Internal Data Rate | 500 MBps (read) / 500 MBps (write) |
| SSD Endurance | 1700 TB |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^17 |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s |
