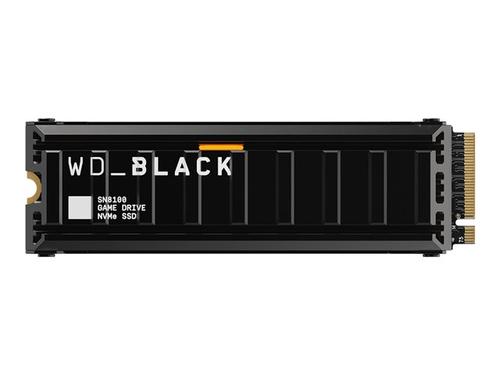

WD_BLACK SN8100 WDS100T1XHM-00CMT0 - SSD - 1 TB - PCI Express 5.0 x4 (NVMe)
- Brand
- Western Digital
- Product code
- WDS100T1XHM-00CMT0
- SKU
- 19YPDEQF4FT78
- EAN/GTIN
- 619659220914
- SSD
- encrypted
- 1 TB
- internal
- M.2 2280
- PCI Express 5.0 x4 (NVMe)
- TCG Opal Encryption 2.02
- integrated heatsink
- Weight: 0.08 KG
Product Info
The WD_BLACK SN8100 is designed for high-performance computing and gaming environments, offering a robust storage solution with a capacity of 1 TB. Utilizing the PCI Express 5.0 x4 NVMe interface, this solid state drive features internal data rates of up to 14,900 MBps, ensuring quick access to files and programs. With its integrated heatsink, the WD_BLACK SN8100 efficiently manages heat, allowing for sustained performance under heavy workloads. The controllable RGB lighting adds a personalized touch to your setup, making it functional and visually appealing.
In addition to its speed and aesthetics, the WD_BLACK SN8100 boasts endurance of 600 TB, meaning it can handle extensive write cycles without compromising performance. It's built with 3D triple-level cell NAND flash memory, enhancing both performance and lifespan. With a minimum operating temperature of 0°C and maximum operating temperature of 85°C, along with a storage temperature range of -40°C to 85°C, it performs reliably in various conditions. The drive is compliant with numerous standards, ensuring it meets the needs for both gamers and professionals.
Description
High-speed performance
With internal data rates of 14,900 MBps and write speeds of 11,000 MBps, the WD_BLACK SN8100 delivers performance suitable for gaming and professional use.
Durable design
The drive features an integrated heatsink that maintains optimal temperature management, ensuring consistent performance under heavy workloads.
Enhanced storage technology
Utilizing 3D triple-level cell NAND flash memory, this SSD provides improved performance, reliability, and efficiency.
RGB customization
The controllable RGB lighting allows users to personalize their builds, adding aesthetic appeal to the overall system setup.
Robust endurance
With an SSD endurance of 600 TB, the drive is built to withstand extensive write cycles, ensuring long-term reliability.
| General | |
|---|---|
| Hardware Encryption | Yes |
| Integrated Heatsink | Yes |
| Depth | 80 mm |
| Width | 25 mm |
| Capacity | 1 TB |
| Weight | 31.2 g |
| Device Type | Solid state drive - internal |
| Height | 11.25 mm |
| Form Factor | M.2 2280 |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | DRAM cache, CMOS-bonded-array (CBA), controllable RGB lighting, anodised aluminium heatsink, NVMe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
| Power | |
| Power Consumption | 6.2 Watt (average read)6.2 Watt (average write) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Performance | |
| SSD Endurance | 600 TB |
| Maximum 4KB Random Read | 1600000 IOPS |
| Maximum 4KB Random Write | 2400000 IOPS |
| Internal Data Rate | 14900 MBps (read) / 11000 MBps (write) |
| Reliability | |
| MTBF | 1,750,000 hours |
| Software & System Requirements | |
| OS Required | Windows 10 or later |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) |
