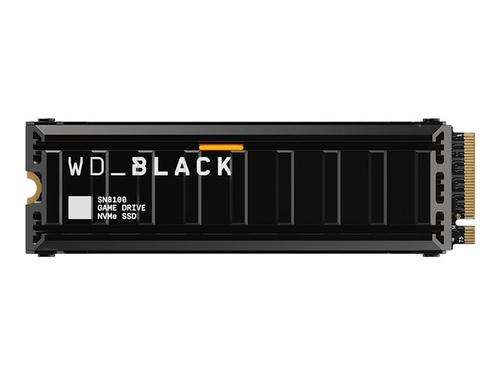

WD_BLACK SN8100 WDS200T1XHM-00CMT0 - SSD - 2 TB - PCI Express 5.0 x4 (NVMe)
- Brand
- Western Digital
- Product code
- WDS200T1XHM-00CMT0
- SKU
- AOWL209QTMKMI
- EAN/GTIN
- 619659220921
- SSD
- encrypted
- 2 TB
- internal
- M.2 2280
- PCI Express 5.0 x4 (NVMe)
- TCG Opal Encryption 2.02
- integrated heatsink
- Weight: 0.06 KG
Product Info
Experience high-speed storage with the WD_BLACK SN8100, a solid state drive that offers a large capacity of 2 TB. With an internal data rate of 14,900 MBps and a write speed of 14,000 MBps, loading games and applications is fast. The drive features an anodized aluminum heatsink to maintain optimal temperatures during heavy workloads, and its compact M.2 2280 form factor makes it easy to integrate into laptops and desktops. Performance is enhanced with a DRAM cache and 3D triple-level cell NAND flash memory, delivering maximum IOPS of 2,300,000 for random reads and 2,400,000 for random writes. Customizable LED RGB lighting adds a touch of personalization, allowing users to create a unique aesthetic for their setup. With robust features for endurance and operation within a wide temperature range, the WD_BLACK SN8100 meets the demands of gaming and heavy data tasks.
Description
High-performance capacity
With 2 TB of storage, this SSD accommodates extensive data and applications, catering to both gamers and professionals.
Efficient thermal design
The anodized aluminum heatsink ensures that the SSD remains cool, even during intense use, preventing thermal throttling.
Advanced data speeds
The internal data rate reaches up to 14,900 MBps while write speeds sustain at 14,000 MBps, enhancing user experience.
Enhanced durability
This SSD boasts an endurance rating of 1200 TB, ensuring long-lasting performance for demanding applications and gaming.
Robust security features
Equipped with TCG Opal Encryption 2. 02, the drive provides hardware-level security to protect sensitive data.
| General | |
|---|---|
| Hardware Encryption | Yes |
| Integrated Heatsink | Yes |
| Depth | 80 mm |
| Width | 22 mm |
| Capacity | 2 TB |
| Weight | 31.2 g |
| Device Type | Solid state drive - internal |
| Height | 11.25 mm |
| Form Factor | M.2 2280 |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | DRAM cache, CMOS-bonded-array (CBA), anodised aluminium heatsink, customisable LED RGB lighting, NVMe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
| Power | |
| Power Consumption | 6.5 Watt (average read)7 Watt (average write) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Performance | |
| SSD Endurance | 1200 TB |
| Maximum 4KB Random Write | 2400000 IOPS |
| Maximum 4KB Random Read | 2300000 IOPS |
| Internal Data Rate | 14900 MBps (read) / 14000 MBps (write) |
| Reliability | |
| MTBF | 1,750,000 hours |
| Software & System Requirements | |
| OS Required | Windows 10 or later |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) |
