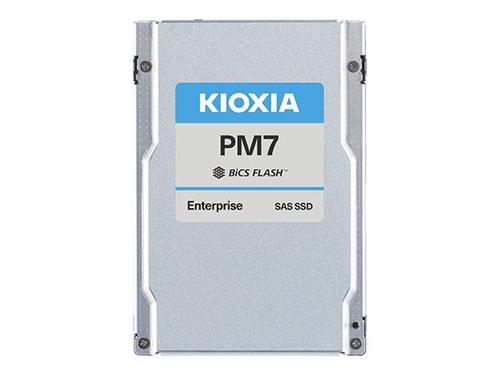

KIOXIA PM7-R Series KPM7VRUG30T7 - SSD - Enterprise, Read Intensive - 30720 GB - Self-Encrypting Drive (SED) - SAS 24Gb/s
- Brand
- KIOXIA SSD
- Product code
- KPM7VRUG30T7
- SKU
- QWU8KR3ZDTH2L
- EAN/GTIN
- 4582563859005
- SSD
- Enterprise, Read Intensive
- encrypted
- 30720 GB
- Self-Encrypting Drive (SED)
- internal
- 2.5"
- SAS 24Gb/s
- Weight: 0.12 KG
Product Info
KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA 112-layer BiCS FLASH 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with big capacities.
Description
Robust durability
Designed to withstand the rigors of heavy use, this hard drive features a shock acceleration operating tolerance of 1000 g and a vibration acceleration operating tolerance of 2. 17 gRMS, ensuring reliability in a variety of working conditions.
High-capacity storage
With a massive 30720 GB capacity, this solid state drive offers ample space for extensive data storage needs, making it an ideal choice for enterprise and read-intensive applications.
Exceptional performance
Boasting an internal data rate of 4150 MBps for reading and 3200 MBps for writing, alongside a data transfer rate of 2. 25 GBps, this drive delivers high-speed performance for demanding workloads.
Advanced security
Equipped with self-encrypting drive (SED) technology and hardware encryption, this hard drive ensures that your data is protected against unauthorized access, providing peace of mind.
Efficient operation
Featuring power loss protection (PLP) and a low power consumption of 5 W in ready mode, this drive is designed for energy-efficient operation without sacrificing performance.
| General | |
|---|---|
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Weight | 130 g |
| Height | 15 mm |
| Width | 69.85 mm |
| Device Type | Solid state drive - internal |
| Depth | 100.45 mm |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Capacity | 30720 GB |
| Interface | SAS 24Gb/s |
| Features | Dual Port, Power Loss Protection (PLP), End-to-end data protection, T10 Data Integrity Field (DIF), 112-layer 3D BiCS FLASH |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 5 Watt (ready) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 80 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Humidity Range Operating | 5 - 95% RH |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-800 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| 4KB Random Write | 80000 IOPS |
| 4KB Random Read | 720000 IOPS |
| Drive Transfer Rate | 2.25 GBps (external) |
| Drive Class | Enterprise, Read Intensive |
| Internal Data Rate | 4150 MBps (read) / 3200 MBps (write) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SAS 24Gb/s |
