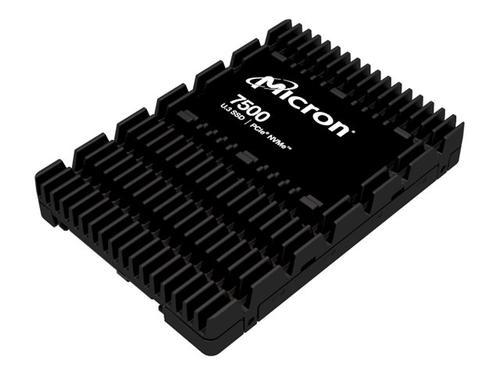

Micron 7500 MAX - SSD - Mixed Use - 3.2 TB - U.3 PCIe 4.0 (NVMe)
- Brand
- Micron
- Product code
- MTFDKCC3T2TGQ-1BK1DABYYR
- SKU
- 32XEP90OQ3AAY
- EAN/GTIN
- 649528941152
- SSD
- Mixed Use
- encrypted
- 3.2 TB
- internal
- 2.5"
- U.3 PCIe 4.0 (NVMe)
- 256-bit AES, 3072-bit RSA, 208-bit RSA
- TCG Opal Encryption 2.01
- Weight: 0.16 KG
The Micron 7500 SSD is an advanced mainstream PCIe Gen4 data center SSD and the first with 200+ layer NAND.
Description
Enhanced durability
With an MTBF of 2,000,000 hours, this Micron 7500 MAX solid state drive offers exceptional durability and reliability for continuous operation in mixed-use environments.
Advanced security
Featuring a Micron Secure Encrypted Environment (SEE) with multiple encryption algorithms including 256-bit AES and 208-bit RSA, this drive ensures your data is protected with high-level security.
Optimized performance
Equipped with NVMe 2. 0b and U. 3 PCIe 4. 0 interfaces, the Micron 7500 MAX delivers high-speed data transfer rates, making it suitable for demanding applications and workloads.
Power efficiency
With power consumption modes optimized for sequential read and write operations, this drive balances performance with efficiency, ensuring lower energy costs without compromising on speed.
Comprehensive data protection
Features like End-to-end data protection, Enterprise Power-Loss Protection, and Dynamic and Static Wear Leveling work together to safeguard your data from corruption and loss during unexpected power outages.
| General | |
|---|---|
| Bytes per Sector | 512 |
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Height | 15 mm |
| Capacity | 3.2 TB |
| Device Type | Solid state drive - internal |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | U.3 PCIe 4.0 (NVMe) |
| Features | NVM Express (NVMe) 2.0b, Micron Secure Encrypted Environment (SEE), Self-Encrypting Drive (SED), Key-Based Firmware Update, Strong Asymmetric Key Support, Digitally Signed Firmware, Surprise Insertion capable, Surprise Removal capable, Hot-Plug Support, field-upgradeable firmware, Firmware Activate without Reset, NVMe Management Interface (NVMe-MI) 1.2b, Dynamic and Static Wear Leveling, NVME Urgent Weighted Round Robin, End-to-end data protection, Enterprise Power-Loss Protection, Read Unrecoverable Bit Error Rate (UBER) 10e-18, Open Compute Project 2.0, S.M.A.R.T. |
| Encryption Algorithm | 256-bit AES, 3072-bit RSA, 208-bit RSA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 15.5 Watt (sequential read)18.3 Watt (sequential write) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Performance | |
| Drive Writes Per Day (DWPD) | 3 |
| 4KB Random Read | 1100000 IOPS |
| SSD Endurance | 17520 TB |
| Average Latency | 15 μs |
| 4KB Random Write | 390000 IOPS |
| Drive Class | Mixed Use |
| Internal Data Rate | 6800 MBps (read) / 5300 MBps (write) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^18 |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
