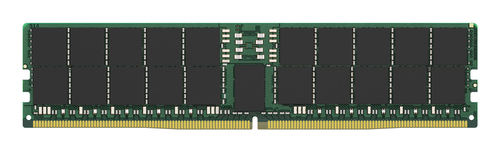

Kingston Technology KSM64R52BD4-96MC memory module
Kingston Technology KSM64R52BD4-96MC memory module 96 GB 1 x 96 GB DDR5 6400 MT/s ECC
- Brand
- Kingston
- Product code
- KSM64R52BD4-96MC
- SKU
- WSJS3R9P7LQW3
- EAN/GTIN
- 740617351538
- Server 96 GB DDR5 6400 MT/s
- 288-pin DIMM 1 x 96 GB
- CAS latency: 52
- 1.1 V
- ECC
€2227.63
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Kingston Technology KSM64R52BD4-96MC. Component for: Server, Internal memory: 96 GB, Memory layout (modules x size): 1 x 96 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52, ECC
Kingston's KSM64R52BD4-96MC is a 12G x 80-bit (96GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
|---|---|
| Buffered memory type | Registered (buffered) |
| On-Die ECC | Yes |
| CAS latency | 52 |
| Internal memory | 96 GB |
| Memory layout (modules x size) | 1 x 96 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 6400 MT/s |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Row cycle time | 48 ns |
| Refresh row cycle time | 410 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Operating relative humidity (H-H) | -55 - 100% |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Height | 31.2 mm |
