Kingston Technology KSM64R52BD8-32HA memory module
Kingston Technology 32GB DDR5 6400MT/s ECC Registered DIMM
- Brand
- Kingston
- Product code
- KSM64R52BD8-32HA
- SKU
- SXMWEY8GQ77JO
- EAN/GTIN
- 740617349238
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
€721.01
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Kingston Technology 32GB DDR5 6400MT/s ECC Registered DIMM. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52, ECC

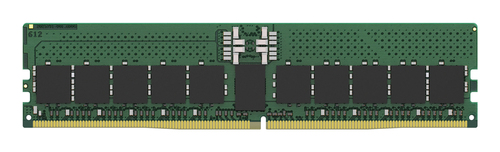

Kingston's KSM64R52BD8-32MD is a 4G x 80-bit (32GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
|---|---|
| Buffered memory type | Registered (buffered) |
| On-Die ECC | No |
| CAS latency | 52 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 6400 MT/s |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
| Other features | |
| Chips organisation | 2Rx8 |
