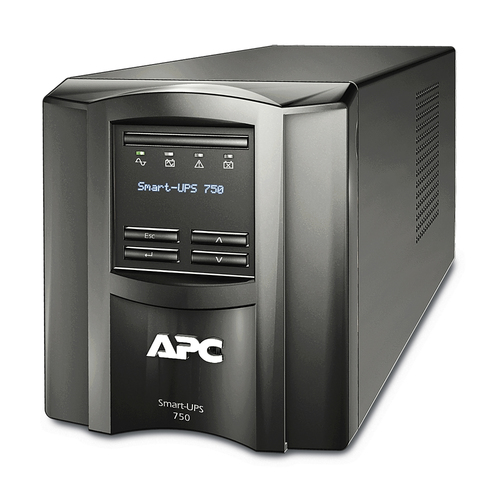

APC SMT750X93 uninterruptible power supply (UPS)

Features

UPS topology Line-Interactive

Output power capacity 0.75 kVA

Output power 500 W

Waveform Sine

Input operation voltage (min) 82 V

Input operation voltage (max) 144 V

Input frequency 50/60 Hz

Output operation voltage (max) 120 V

Output frequency 50/60 Hz

Surge energy rating 593 J

Response time 6 ms

Noise level 41 dB

Audible alarm(s) Yes

Ports & interfaces

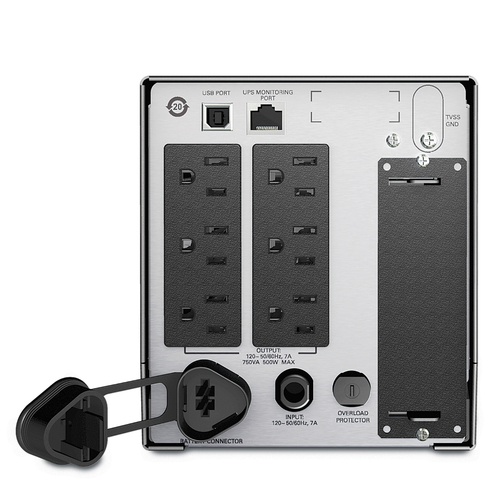

AC outlet types NEMA 5-15R

Power plug NEMA 5-15P

AC outlets quantity 6 AC outlet(s)

USB port Yes

USB port type USB Type-B

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 172 Ah

Typical backup time at full load 5 min

Typical backup time at half load 15 min

Battery life (max) 5 year(s)

Battery recharge time 3 h

Design

Form factor Tower

Product colour Black

Control type Buttons

Display type LED

LED indicators Yes

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -20 - 55 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Certificates

Compliance certificates REACH, RoHS, WEEE

Certification CSA C22.2 No 107.1, REACH, RoHS, WEEE

Packaging content

Manual Yes

Sustainability

Doesn't contain Mercury

Weight & dimensions

Width 138 mm

Depth 369 mm

Height 161 mm

Weight 12.5 kg

Packaging data

Package width 499 mm

Package depth 278 mm

Package height 301 mm

Package weight 14 kg

Logistics data

Warranty period 3 year(s)
