Avocor AVE-5550 E-Series - 55" LED-backlit LCD display - 4K - for interactive communication
- Brand
- AVOCOR
- Product code
- AVE-5550
- SKU
- E4CR2IS7V57U7
- EAN/GTIN
- 858323007066

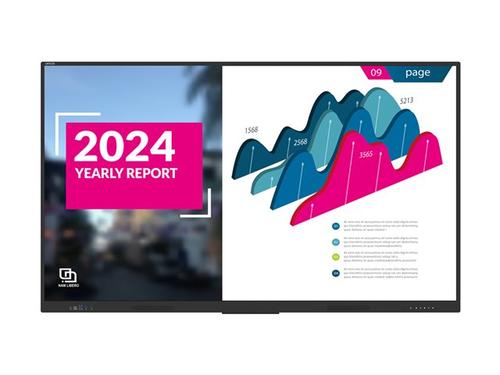

- 55" Diagonal Class E-Series LED-backlit LCD display
- interactive
- with touchscreen (multi touch)
- Android
- 4K UHD (2160p) 3840 x 2160
- direct-lit LED
- Weight: 42.62 KG
Product Info
The Avocor AVE-5550 is designed for interactive communication, featuring a 55-inch LED-backlit LCD flat panel display with a 4K UHD resolution of 3840 x 2160. The display offers a vibrant image contrast ratio of 1200:1 and supports 10-bit color depth, ensuring rich visuals for presentations and collaborations. With Avocor Intelligent Touch technology, this display supports multiple simultaneous touchpoints, allowing for a more engaging and dynamic user experience. Designed with commercial use in mind, it includes features like auto-source-detection and source preview for seamless transitions during presentations. Connectivity options are abundant with four HDMI ports, USB-C ports providing power delivery, and a variety of multimedia outputs, including audio line-out and DisplayPort. The OPS slot enhances its functionality, letting users expand with additional media players. The built-in speaker system, with an output power of 30 W, ensures clear audio to accompany presentations. With an operational temperature range of 0 °C to 40 °C and environmental durability, this display is built to perform in various settings while maintaining performance.
Description
High-resolution display
The 55-inch LED-backlit LCD panel delivers a sharp 4K UHD (3840 x 2160) resolution, ensuring every detail stands out, making it ideal for presentations and interactive discussions.
Advanced touch technology
Equipped with Avocor Intelligent Touch technology, the display supports up to 40 simultaneous touchpoints, enhancing collaborative efforts and engagement during user interactions.
Extensive connectivity options
Features multiple connection types including four HDMI ports, USB-C ports with 15 W and 65 W power delivery, and a variety of audio and video outputs to accommodate diverse multimedia needs.
Integrated audio system
The built-in speaker system with a total output of 30 W provides clear and balanced sound, ensuring that audio accompanies visuals seamlessly for effective presentations.
Robust commercial design
Designed for commercial environments, the display offers features like auto-source-detection and an OPS slot, allowing for easy integration and adaptability in various setups.
| General | |
|---|---|
| Weight | 29 kg |
| TV Tuner Presence | No |
| Diagonal Class | 55" |
| HDMI Ports Qty | 3 ports |
| Video Interface | HDMI |
| PC Interface | DisplayPort |
| Platform | Android |
| Depth | 9.26 cm |
| Product Type | LED-backlit LCD flat panel display |
| Modes | Landscape mode |
| Width | 128.95 cm |
| Series | E-Series |
| Combined With | Touchscreen (multi touch) |
| Commercial Use | Yes - interactive |
| Power Consumption (Max) | 210 Wh |
| Protection | Bonded glass |
| Operating System | Android OS 13 |
| Height | 79.16 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | SuperSpeed USB cable - 3 mUSB-C cable - 1.8 mHDMI cable - 3 m |
| Included Accessories | 2 fine-tip passive touch styluses, power cord |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% |
| Display | |
| Touchpoints Qty | 40 |
| Response Time | 8 ms |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1200:1 |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | Direct-lit LED |
| Display Format | 4K UHD (2160p) |
| Brightness | 400 cd/m² |
| Frame Rate & Enhancement Technology | 60 Hz Frequency |
| Commercial Features | OPS Slot |
| Colour Support | 1070000000 colours |
| Coating | Zero parallax, anti-glare, anti-fingerprint |
| Features | Avocor UiQ, 10-bit support, Avocor Intelligent Touch, fine tip stylus support, OPS Slot, Auto-source-detection, Source preview, carrying handles |
| Connections | |
| Connector Type | Touch - front3 x touch - sideUSB-C with 65W Power Delivery - sideUSB-C with 15W Power Delivery - sideHDMI input - front2 x HDMI input - sideHDMI output - sideDisplayPort - side2 x USB 3.0 - side2 x USB 3.0 - frontUSB (service only) - sideRS-232 - sideAudio line-out - sideSPDIF output - sideLAN inputLAN output |
| Audio System | |
| Output Power / Total | 30 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 15 Watt |
| Remote Control | |
| Battery Included | Yes |
| Type | Remote control |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 22 cm |
| Weight (Shipping) | 35 kg |
| Height (Shipping) | 87 cm |
| Width (Shipping) | 142 cm |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Stands & Mounts | |
| VESA Compatibility | Yes |
| Flat Panel Mount Interface | 400 x 400 mm |
| Media Player | |
| USB Ports Qty | 4 |
| USB Port | Yes |
| Configuration | Amlogic A311D2 - 4 GB - 32 GB - Mali G52 MP8 |
