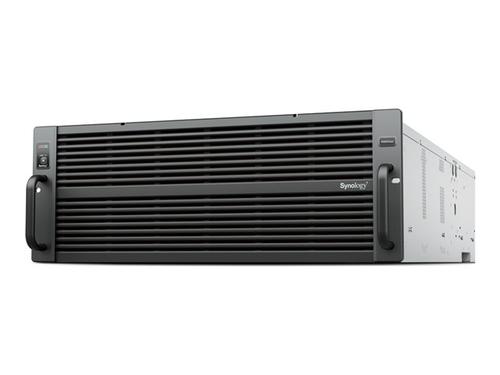

Synology RX6025sas - storage enclosure
- Brand
- Synology
- Product code
- RX6025SAS
- SKU
- L4AITQSOQPQ0Z
- EAN/GTIN
- 4711174726424
- Storage enclosure
- 60 bays (SATA-600)
- rack-mountable
- 4U
- Weight: 45.00 KG
Product Info
The Synology RX6025sas is a functional storage enclosure designed for seamless data management and expansion. With support for up to 60 devices, it allows users to expand storage capacity effortlessly. The unit is built with efficient cooling in mind, featuring four 80 mm fans that ensure optimal performance while maintaining a temperature range between 0°C and 35°C. Its hot-swap design allows users to change drives without shutting down the system, enhancing productivity and minimizing downtime. Incorporating dual Mini SAS connectors for expansion and equipped with a robust internal power supply, this unit can handle a power consumption of 811.8 W while providing redundancy up to 1300 W. The RX6025sas includes an LED indicator for easy monitoring and complies with UL, FCC, and RoHS standards, ensuring it meets safety and environmental regulations.
Description
Efficient Cooling System
The enclosure features four 80 mm fans, which provide effective cooling to maintain optimal operating temperatures within the device.
High Capacity Support
Designed to support up to 60 devices, the RX6025sas offers significant storage expansion, making it suitable for growing data needs.
User-Friendly Hot-Swap Design
With hot-swap capability, drives can be replaced without powering down the system, allowing for uninterrupted operations.
Dual Mini SAS Connectivity
The presence of two Mini SAS connectors facilitates expanded connectivity options for various storage devices.
Reliable Power Management
An internal power supply delivers up to 1300 W, ensuring redundancy and dependable operation even under heavy loads.
| General | |
|---|---|
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Expansion / Connectivity | |
| Expansion Bays | 60 (total) / 60 (free) x hot-swap - 3.5" |
| Interfaces | 2 x expansion port - Mini SAS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Processor | |
| CPU | No CPU |
| Miscellaneous | |
| Features | LED indicator |
| Included Accessories | Rail kit, accessory pack |
| Cables Included | 2 x power cable2 x mini SAS HD cable |
| Compliant Standards | UL, FCC, BSMI, UKCA, EAC, VCCI, RCM, KC, RoHS |
| Power | |
| Power Provided | 1300 Watt |
| Power Redundancy | Yes |
| Power Device | Internal power supply |
| Voltage Required | AC 200-240 V 50/60 Hz |
| Power Consumption Operational | 811.8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Sound Emission | 61.7 dBA |
| Humidity Range Operating | 5 - 95% RH |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Height | 17.6 cm |
| Weight | 33.9 kg |
| Depth | 98.5 cm |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 60 |
| Supported Drives | SATA-600 |
| Built-in Devices | 4 x 80 mm fans |
